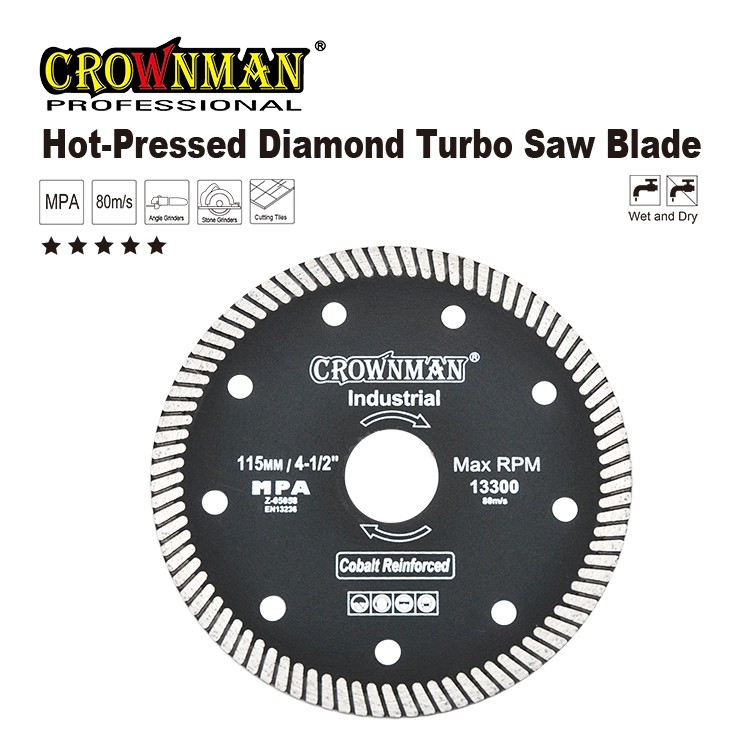

Diamond Saw Blade for Angle Grinders
This diamond saw blade is designed for use with angle grinders and stone grinders. It features a hot-pressed diamond turbo design and cobalt reinforcement for enhanced durability.
Technical Specifications
Overview

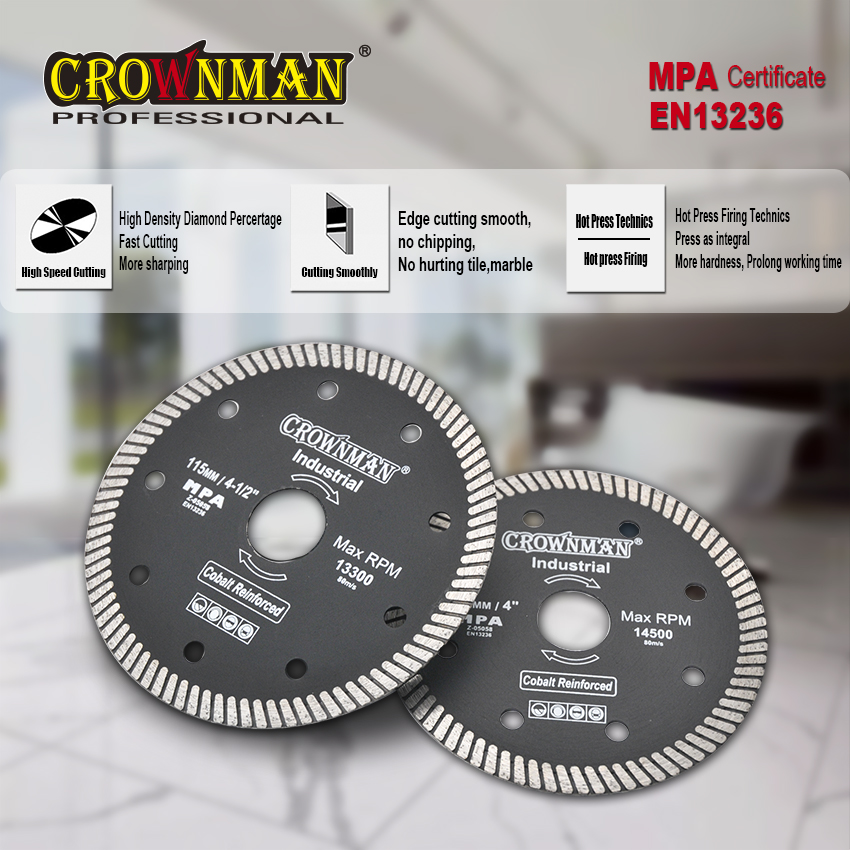

Professional Hot-Pressed Diamond Saw Blade
This industrial-grade diamond cutting disc is engineered for high-performance cutting of tiles, marble, and vitrified bricks. Utilizing hot-press firing technology, it offers superior hardness and a prolonged working life compared to standard blades. Its super-thin 1.3mm profile ensures precise, smooth cuts with minimal chipping, making it an ideal choice for professional masonry and tiling projects.
Performance Metrics
Key Performance Metrics
13,300 RPM
Max Speed
80 m/s
Operating Speed

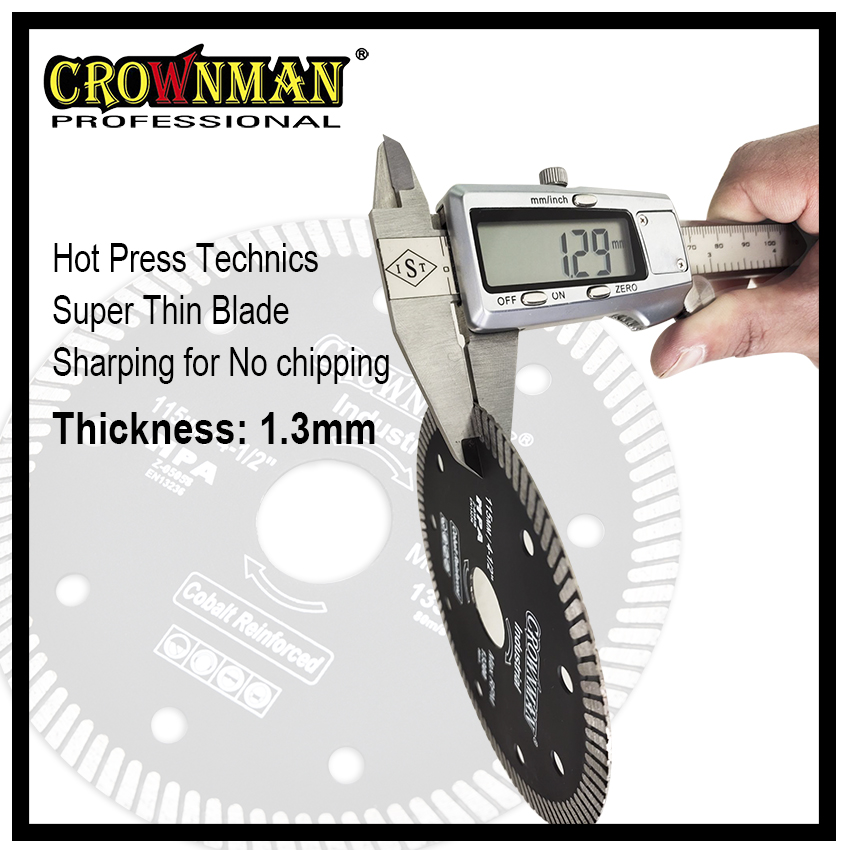

1.3 mm
Blade Thickness
Technical Specifications
Available Sizes
| Diameter | Arbor Hole | Max RPM |
|---|---|---|
| 105mm (4") | 20.0mm | 14,500 |
| 115mm (4-1/2") | 22.23mm | 13,300 |
- Reinforcement
- Yes
- Manufacturing Process
- Hot-Pressed Firing Technology

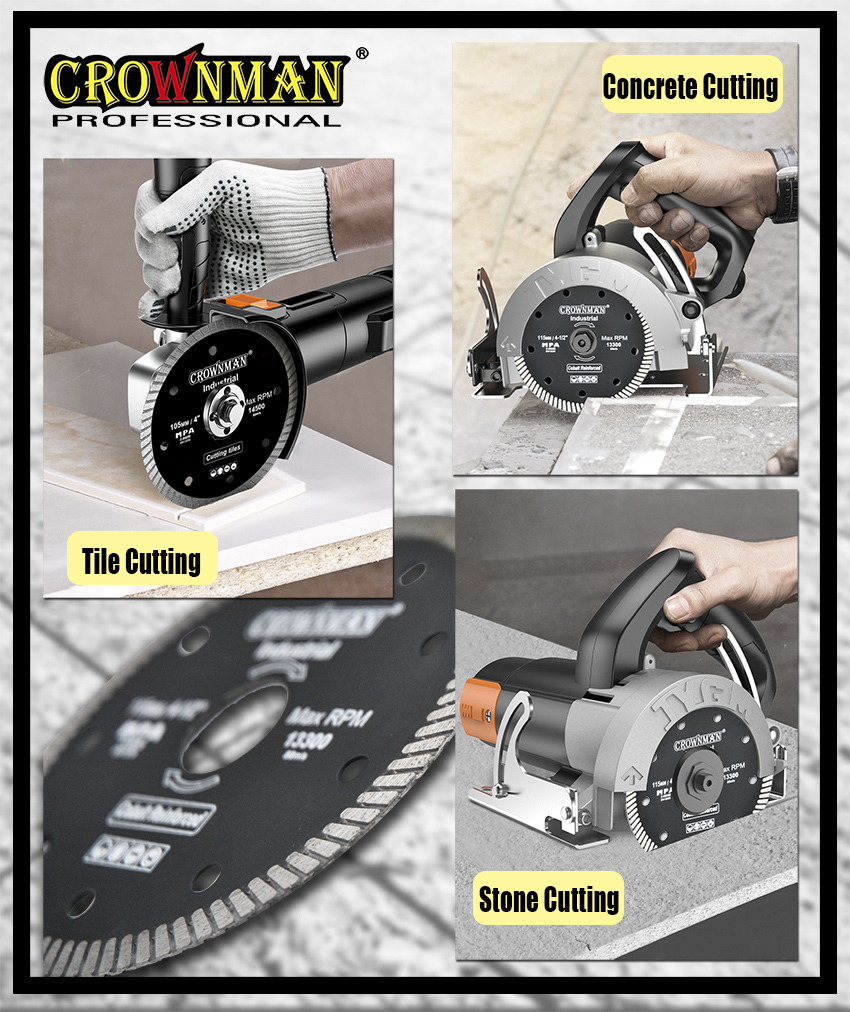

Application & Materials
Compatible Materials
- Vitrified Brick
- Microlite
- Glazed Tile
- Marble
- Ceramic Plate
- Archaized Brick
- Concrete
- Stone
Applicable Equipment
- Angle Grinders
- Stone Grinders
- Cutting Tools
- Cutting Methods
- Wet CuttingDry Cutting
Design Features
Key Benefits
- Fast cutting speed
- High-density diamond percentage
- No chipping on delicate surfaces
- Reduced cutting friction
- Improved slab flatness

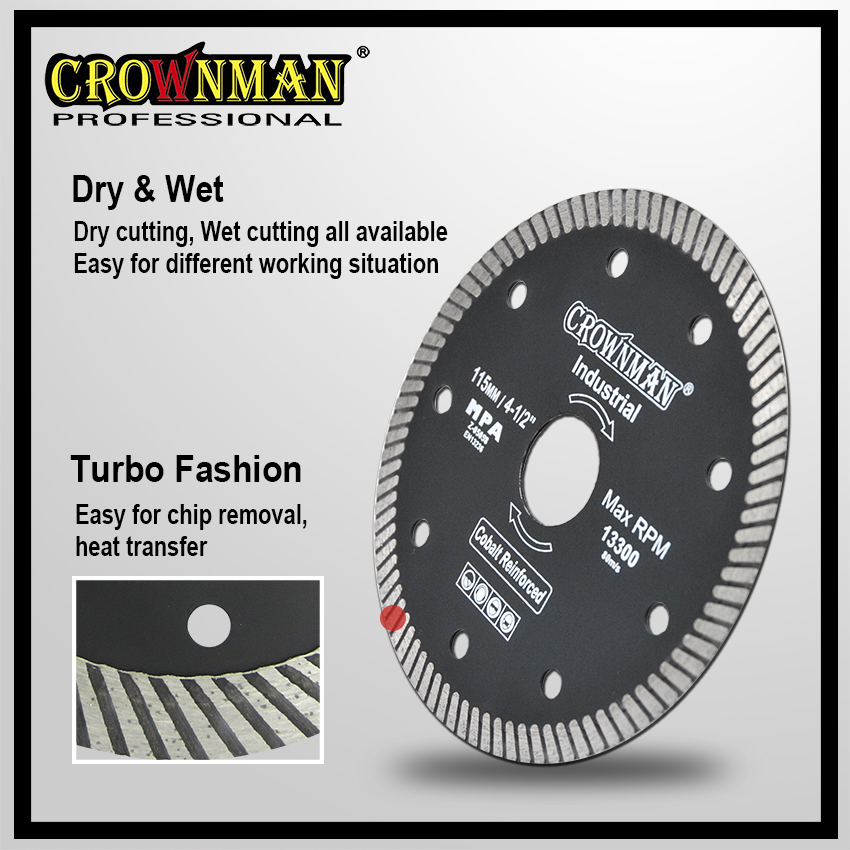

- Blade Design
- Turbo Fashion for efficient chip removal and heat transfer
Compliance & Safety
Safety Standards
EN13236MPA Certified
