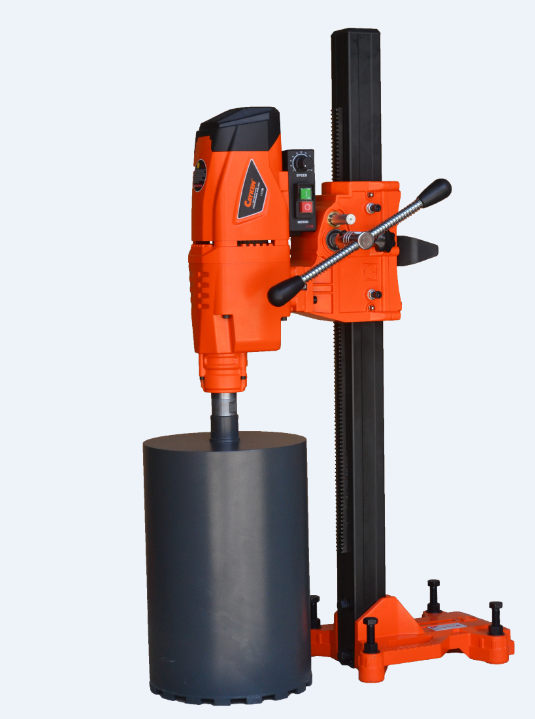

Diamond Core Drilling Machine
The diamond core drilling machine is designed for creating precise holes in hard materials such as concrete and stone. It features a drill motor on a stand and a diamond-tipped bit for accurate drilling.
Technical Specifications
Product Overview
Professional Diamond Core Drilling Solution
This oil-immersed diamond core drilling machine is engineered for high-performance drilling in dense materials like concrete, stone, and masonry. Designed for stability and precision, it features a robust motor capable of handling a maximum drilling diameter of 250mm. Its oil-immersed system ensures smooth operation and durability, making it an essential tool for construction, renovation, and infrastructure projects.
Technical Specifications
Rated Input Power
4,880 W
Power Output
- Max Drilling Diameter
- 250 mm
- No-Load Speed
- 540 rpm
Electrical Requirements
- Rated Voltage
- 110V220V
- Rated Frequency
- 50-60Hz
Dimensions and Logistics
Weight Specifications
| Weight Type | Value (kg) |
|---|---|
| Net Weight | 24 |
| Gross Weight | 26 |
- Packing Size
- 930 x 380 x 240 mm
