Dial Bore Gauge Set

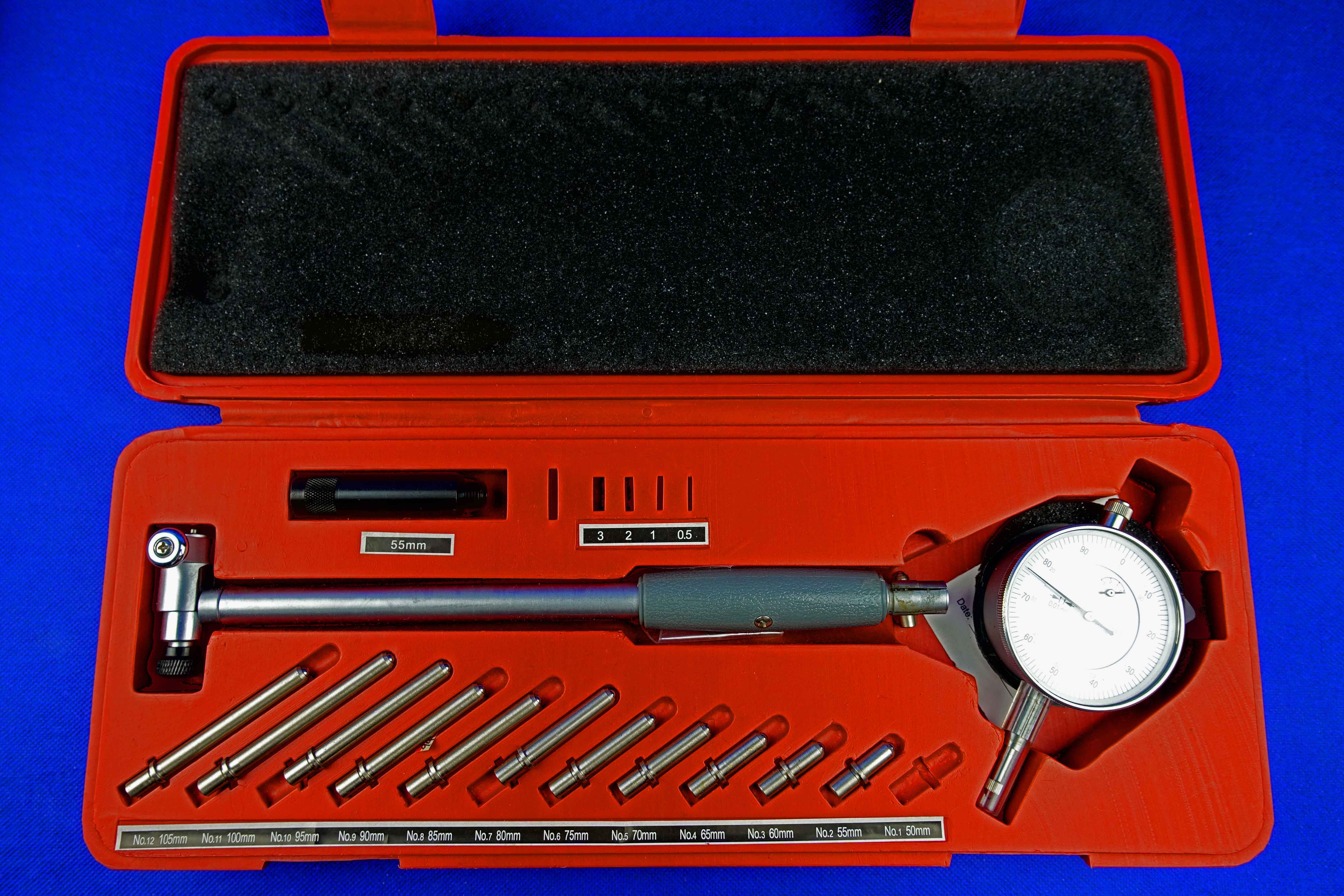

This dial bore gauge set is designed for accurate measurement of internal diameters. It features interchangeable anvils and extensions to accommodate a wide range of bore sizes.
Technical Specifications
Product Overview
Precision Internal Measurement
This dial bore gauge set is engineered for high-accuracy internal diameter measurements in machining and quality control environments. It features a high-resolution dial indicator and a versatile collection of interchangeable anvils, allowing for a wide measurement range. The set is designed for durability and ease of use, ensuring precise readings for professional engineering applications.
Key Features
Features
- Designed for internal diameter measurement
- Hardened contact point for longevity
- Changeable anvils for wide measuring range
- Dial indicator included
Technical Specifications
Anvil Sizes Included
| Anvil ID | Size |
|---|---|
| No.1 | 50 |
| No.2 | 55 |
| No.3 | 60 |
| No.4 | 65 |
| No.5 | 70 |
| No.6 | 75 |
| No.7 | 80 |
| No.8 | 85 |
| No.9 | 90 |
| No.10 | 95 |
| No.11 | 100 |
| No.12 | 105 |
- Minimum Measurement Range
- 50 mm
- Maximum Measurement Range
- 105 mm
- Dial Resolution
- 0.01 mm
Application
- Suitable Applications
- MachiningAutomotiveQuality ControlPrecision Engineering
