Dew Point Temperature Meter with Data Logging
This dew point meter accurately measures dew point temperature. It features a built-in printer for on-site data logging and a USB OTG port for data transfer.
Technical Specifications
Product Overview
Precision Dew Point Measurement

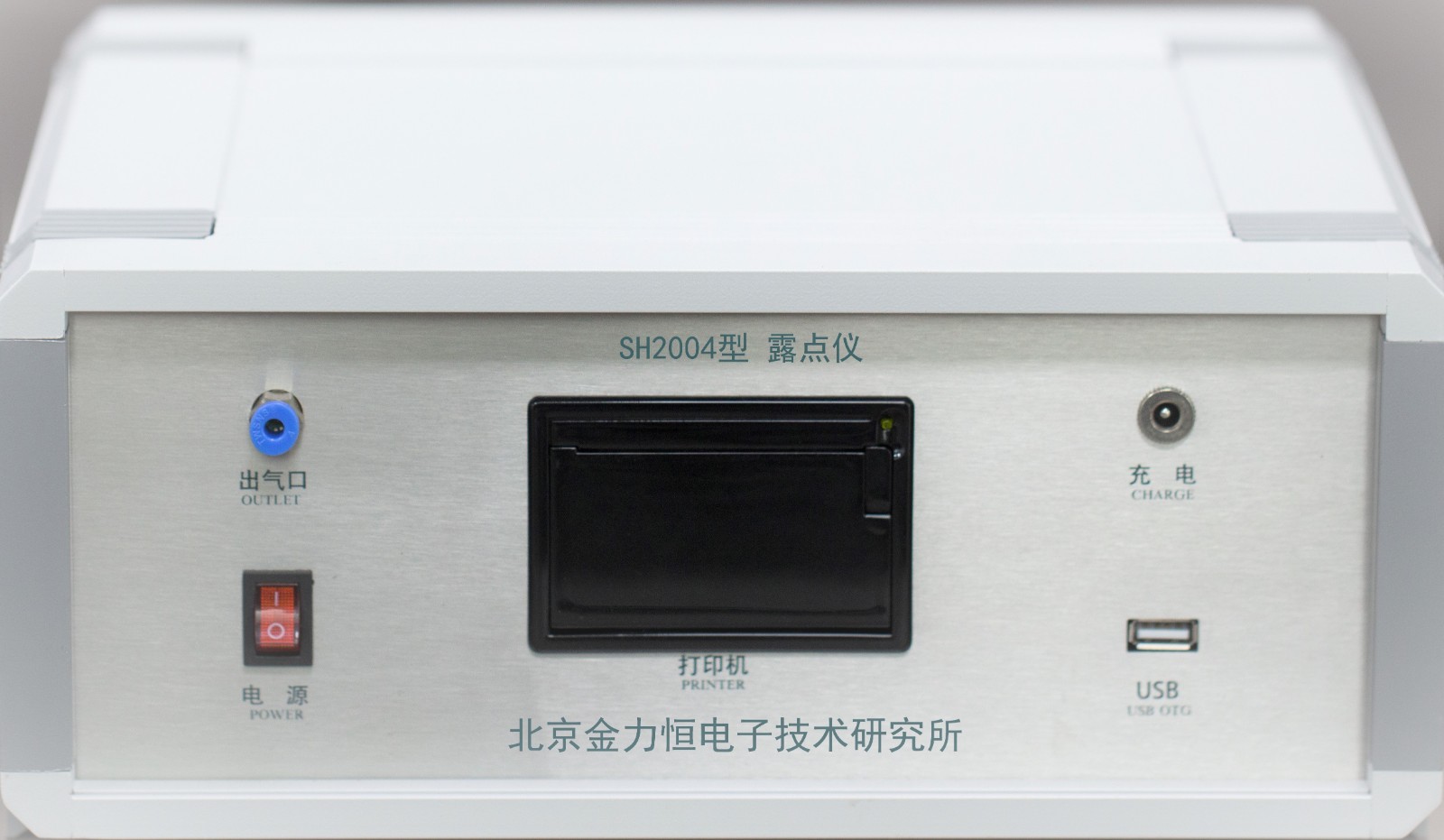

This portable dew point meter is a self-contained instrument designed for accurate, rapid humidity and temperature monitoring in industrial environments. It features a specialized desiccant dry-down chamber to speed up measurement times and includes built-in self-diagnostics upon startup. With an integrated printer and intuitive touchscreen interface, it offers a complete, user-friendly solution for on-site data logging and analysis.
Measurement Performance
Key Performance Metrics
-70 °C
Min Dew Point Range
35 °C
Max Dew Point Range
1 °C
Accuracy
1.5 L/Min
Max Flow Rate
Features & Connectivity
Device Capabilities
- Integrated printer for on-site logging
- USB OTG port for data transfer
- Touchscreen interface
- Desiccant dry-down chamber
- Self-diagnostics on startup
- Automatic switch-off
- Engineering Units
- °C°Fppb(v)ppm(v)ppm(w)g/m3lb/MMSCF
Power & Hardware
- Battery Life
- 10 Hours
- Rechargeable
- Yes
- Coupling
- Quick Connect Stainless Steel
