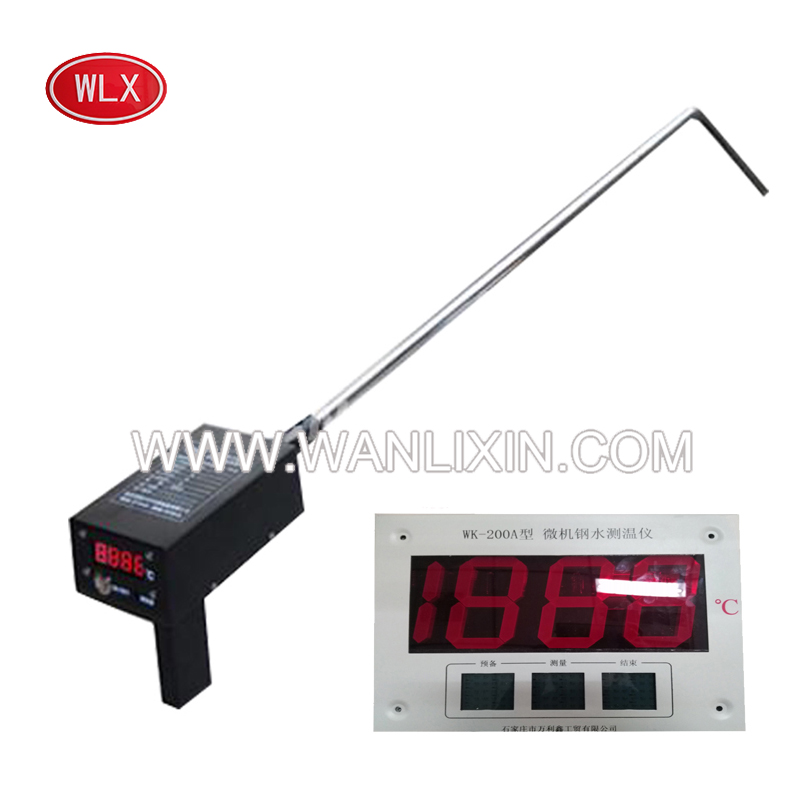

Molten Steel Temperature Thermodetector
This thermodetector is designed for measuring the temperature of molten steel with precision. It features a probe for insertion into molten metal and a digital display for immediate temperature readings.
Technical Specifications
Product Overview
Advanced Wireless Molten Steel Temperature Measurement
The CW-I Molten Steel Wireless Temperature Measurement System is a next-generation solution designed to replace traditional wired setups. By eliminating the physical connection between the lance and the instrument, it enhances operational safety and efficiency while significantly reducing maintenance costs associated with compensating wires. This system features robust wireless data transmission, automated power-saving modes, and versatile external output capabilities for seamless integration into existing computerized control environments.
System Performance
Measurement Range
1,750 °C
S-Type
1,820 °C
B-Type
1,769 °C
R-Type
1,999 °C
WRe3/25
- Accuracy Grade
- Grade 0.2
- Transmission Distance
- 50 m
Hardware Specifications
- Lance Length
- 1.5m - 7m (customizable)
- Dimensions (L x W x H)
- 380mm x 280mm x 110mm
- Power Supply
- AC220V, 50Hz
Connectivity & Output
- External Outputs
- RS4854-20mABCD Code
- Communication Channels
- 16
Environmental Conditions
Operating Environment
| Parameter | Temperature | Humidity |
|---|---|---|
| Lance | -20°C to 50°C | ≤85% |
| Detector | -20°C to 50°C | ≤85% |
