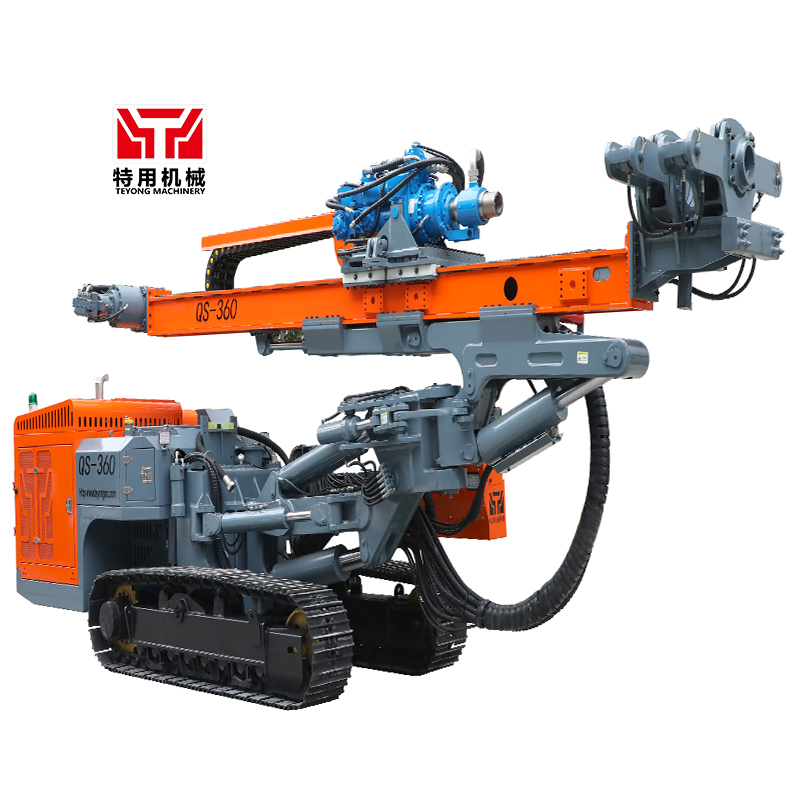

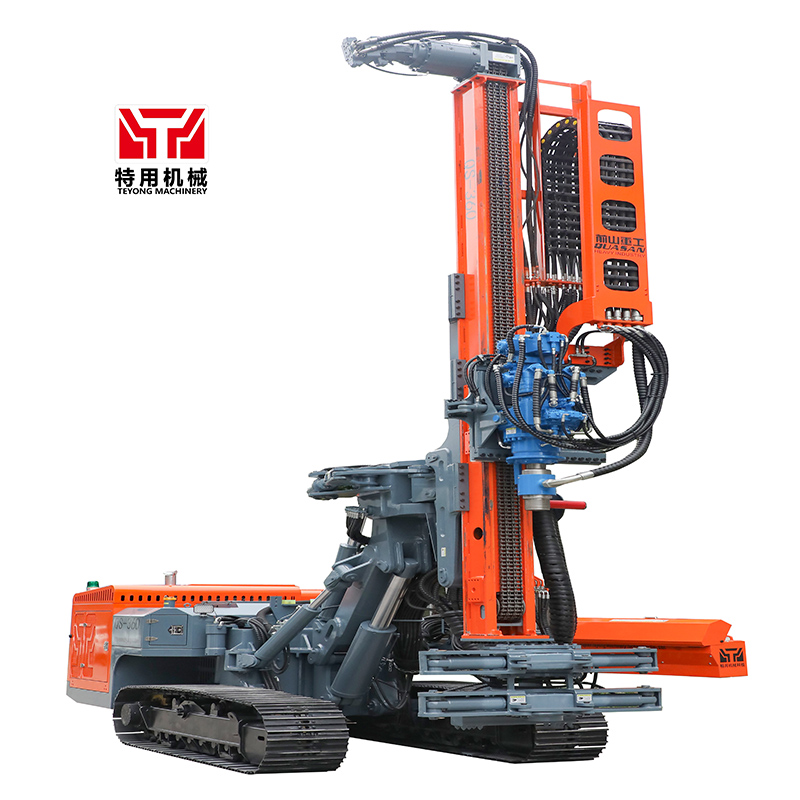

Deep Hole Drilling Rig, 360mm Diameter
The deep hole drilling rig is engineered for mining, oil exploration, and geothermal energy projects. It is powered by a high-efficiency hydraulic system for drilling depths and stability, handling diameters up to 360mm.
Technical Specifications
Overview
High-Performance Deep Hole Drilling
The QS-360 is a robust deep hole drilling rig engineered for demanding applications in mining, oil exploration, and geothermal energy. Powered by a high-efficiency hydraulic system, it achieves exceptional drilling depths and stability while handling diameters up to 360mm. Its crawler-mounted chassis ensures superior mobility and stability across uneven terrains and remote environments.
Performance Metrics
Key Performance Metrics
360 mm
Maximum Drilling Diameter
Technical Capabilities
- Primary Applications
- MiningGeothermal DrillingOil ExplorationDeep-Core SamplingWater WellsFoundation Construction
- Power System
- High-efficiency hydraulic system
Design & Mobility
Design Features
- Modular structure for easy transport
- Swift assembly in remote environments
- Wear-resistant materials
- Low-maintenance components
- Chassis Type
- Crawler-mounted / Tracked chassis
Operation & Safety
Safety Features
- Emergency stop mechanisms
- Operator protection structures
- Advanced hydraulic controls
Operational Benefits
High TorqueHigh Drilling ForceLow DowntimeHigh Precision
- Control & Automation
- Advanced automation features for precision and reduced operator workload
