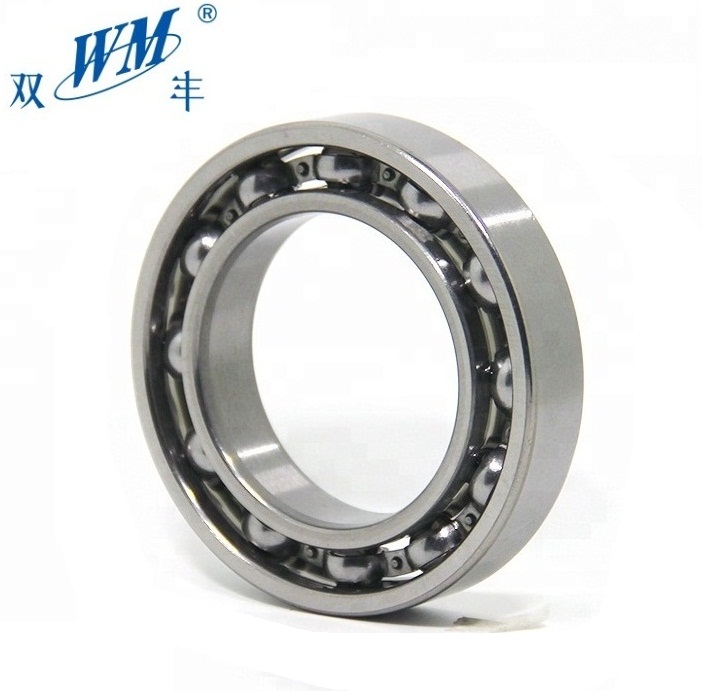

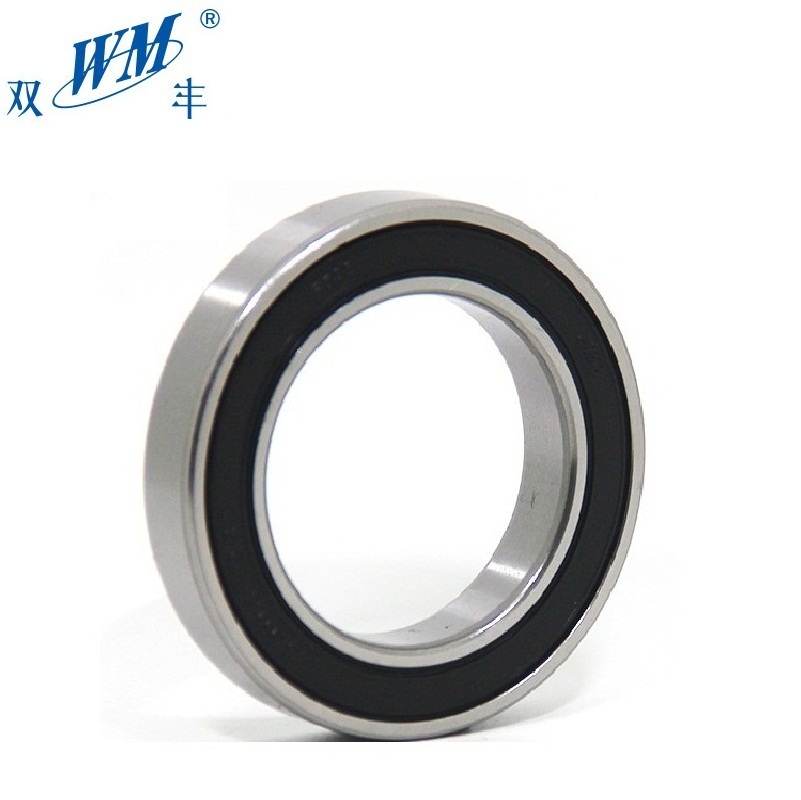

Deep Groove Ball Bearings 6201 6202 6203 6204 6205
These deep groove ball bearings are available in sizes 6201, 6202, 6203, 6204, and 6205. They feature options for 2RS, ZZ, and open configurations, as well as C0, C3, and C5 clearance ratings.
Technical Specifications
Product Overview
High-Precision Deep Groove Ball Bearings
These versatile deep groove ball bearings are engineered for high-speed and high-load applications, featuring a deep raceway geometry for smooth operation. Designed to Electric Motor Quality (EMQ) standards, they minimize friction, noise, and vibration, making them ideal for electric motors and precision machinery. Available in multiple sealing configurations and clearance grades, these bearings provide reliable performance across diverse industrial environments.
Technical Specifications
Closure Options
OPENZZ (Metal Shielded)2RS (Rubber Sealed)Z (Single Shield)RZ2RZ
Radial Internal Clearance
- C0 (Standard)
- C2
- C3
- C5
- Available Series
- 6000 Series6200 Series6300 Series6900 Series

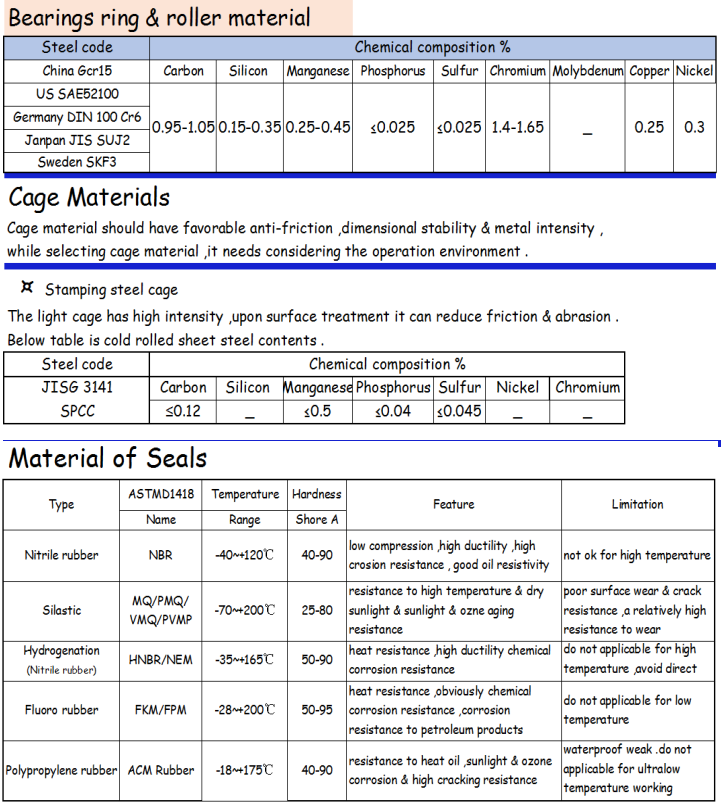

- Bearing Material
- Chrome Steel (Gcr15)
- Precision Ratings
- P0P5P6ABEC-3ABEC-5
Performance Metrics
Vibration & Noise Levels
2 Z2V2
Vibration Grade
3 Z3V3
Precision Grade
6300 Series Performance Data
| Model | ID (mm) | OD (mm) | Width (mm) | Dynamic Load (Cr) |
|---|---|---|---|---|
| 6301 | 12 | 37 | 12 | 7.48 |
| 6302 | 15 | 42 | 13 | 8.8 |
| 6303 | 17 | 47 | 14 | 10.45 |
| 6304 | 20 | 52 | 15 | 12.26 |
| 6305 | 25 | 62 | 17 | 17.22 |

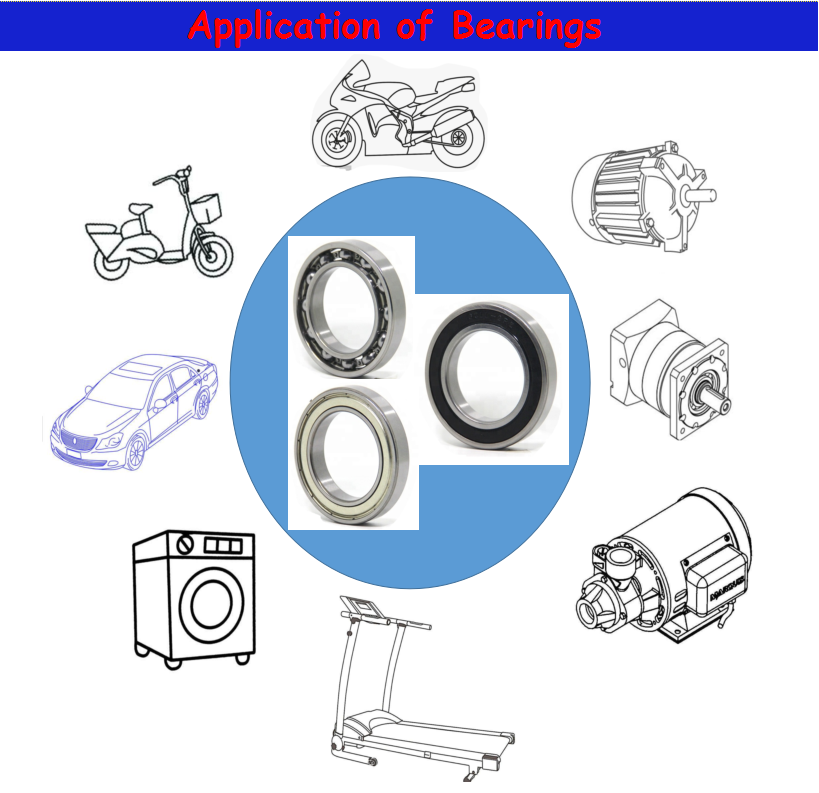

Applications
Common Applications
- Electric Motors
- Automotive Components
- Industrial Machinery
- Gearboxes
- Pumps

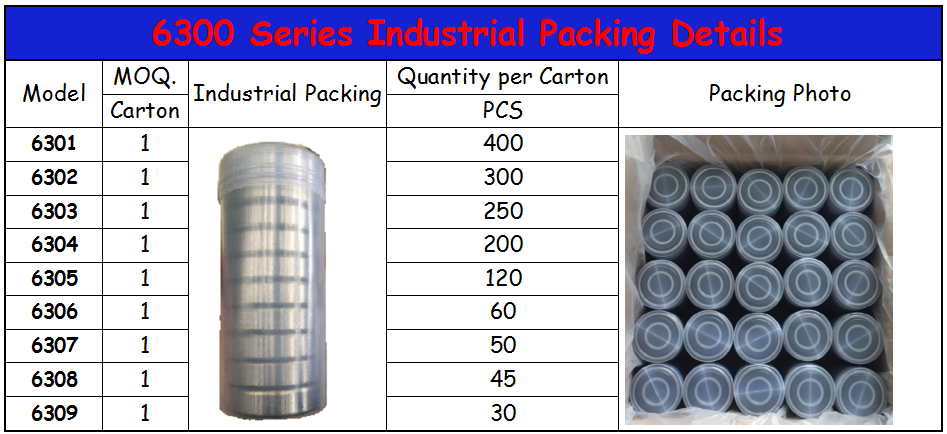

Logistics & Service
- Packaging
- Industrial PackingNeutral BoxColor Box
- Accepted Payment
- T/TL/CWestern UnionPayPal
