Technical Specifications
Product Overview

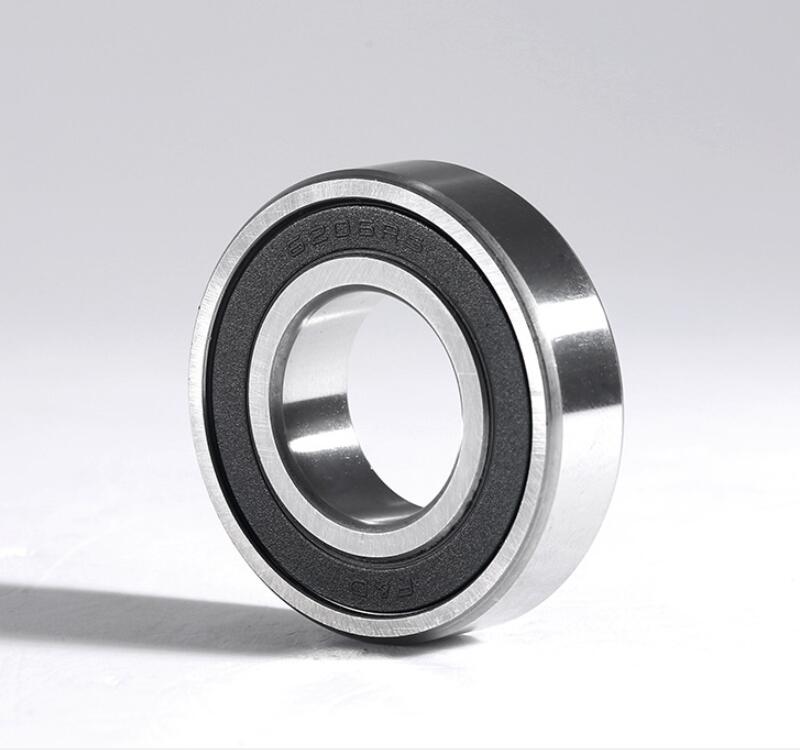

High-Performance Deep Groove Ball Bearing
This 6206-2RS deep groove ball bearing is engineered for high-speed rotation and durability in demanding industrial environments. Featuring a 2RS sealed design, it effectively retains lubricant while protecting against dust and contaminants to ensure a long service life. Constructed from high-quality chrome steel (Gcr15), this versatile component is ideal for applications ranging from automotive and agricultural machinery to electric motors and home appliances.
Technical Specifications
Physical Dimensions
| Parameter | Value | Unit |
|---|---|---|
| Inner Diameter | 30 | mm |
| Outer Diameter | 62 | mm |
| Width | 16 | mm |
| Weight | 0.199 | kg |
- Material
- Chrome Steel (Gcr15)
Performance Metrics
Precision and Quality
5 P
Precision Level
4 Grade
Noise Level (Z)
4 Grade
Vibration Level (V)
Features
- Key Features
- High temperature resistanceFast rotation speedDust-proof sealingLong service life
Applications
Common Applications
- Automotive
- Electric motors
- Home appliances
- Agricultural machinery
- Textile machinery
- Water pumps
Compliance
Certifications
ISO 14001ISO 9001IATF 16949SGS
