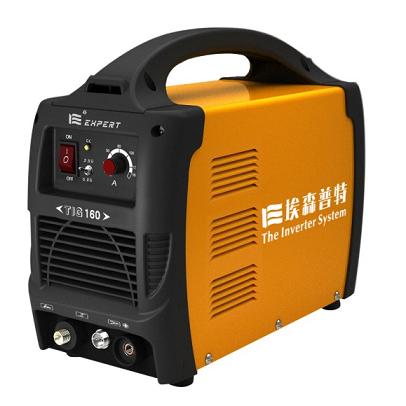

DC Inverter TIG Welding Machine
This compact TIG welding machine is designed for DC TIG welding applications. The inverter-based power source ensures stable and efficient welding performance.
Technical Specifications
Product Overview
Professional DC Inverter TIG Welding Solution
This DC Inverter TIG welding machine provides high efficiency and energy savings in a compact, lightweight package designed for easy portability. Engineered with advanced high-frequency arc striking and specialized circuit design, it ensures stable performance even amidst electric-network fluctuations. It is an ideal solution for welding stainless steel, carbon steel, alloy steel, and cast iron in professional factory environments or maintenance settings.
Technical Specifications
- Input Voltage
- 1 Phase 50/60 Hz AC220V±10%
- Efficiency
- 80 %
- Duty Cycle
- 40 %
- No-load Voltage
- 42 V
Performance Metrics
Model Comparison
160 A
TIG-160 Current
200 A
TIG-200 Current
Welding Thickness
| Model | Thickness Range (mm) |
|---|---|
| TIG-160 | 0.3-5 |
| TIG-200 | 0.3-8 |
Product Features
Safety Functions
- High-frequency arc striking
- Over-voltage protection (up to 380V)
- Voltage fluctuation resistance
- Compact and portable design
- Supported Materials
- Stainless SteelCarbon SteelAlloy SteelCast Iron
