DC Inverter Air Source Heat Pump
This DC inverter air source heat pump uses high-quality components for efficient operation and low noise. The frequency of the compressor is automatically adjustable based on the heat demand, offering flexible heating capacity.
Technical Specifications
Overview
High-Efficiency DC Inverter Technology
This advanced DC inverter air source heat pump represents the future of climate control, automatically adjusting compressor frequency to match the precise heating needs of your space. Designed for both residential and commercial applications, it delivers 15% to 30% higher efficiency compared to standard ON/OFF heat pumps. Built with premium components and an intelligent controller, it ensures reliable, quiet operation and significant energy savings.
Key Features
- Core Features
- Full DC InverterEnergy SavingLow NoiseWi-Fi EnabledAnti-CorrosiveHigh COP
Technical Specifications
Performance Metrics
60 °C
Max Flow Temperature
4.55
Max COP
3
Max EER
Key Components
- Stainless steel plate heat exchanger
- Inverter compressor
- Inverter water pump
- Full DC inverter fan motor
- Inverter controller with LCD display
Model Capacity Overview
| Model | Heating Capacity (kW) | Cooling Capacity (kW) |
|---|---|---|
| EV-DCB7 | 7.35 | 5.5 |
| EV-DCB16 | 16.1 | 12 |
| EV-DCB50 | 52 | 36.4 |

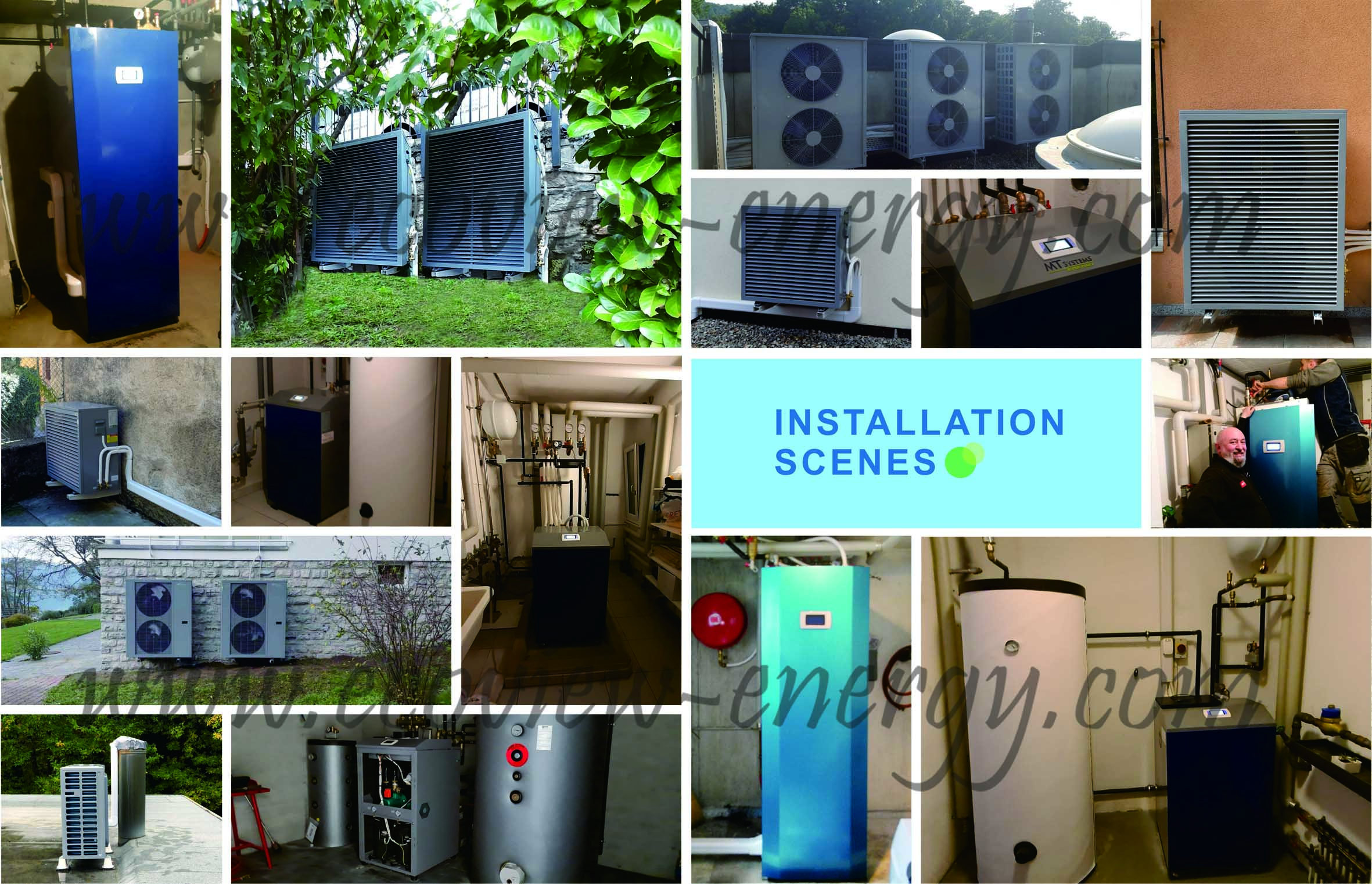

Installation & Build
Build Quality
Galvanized MetalPowder PaintedExcellent InsulationCompact Design
- Power Supply
- 380V / 3Ph / 50Hz
