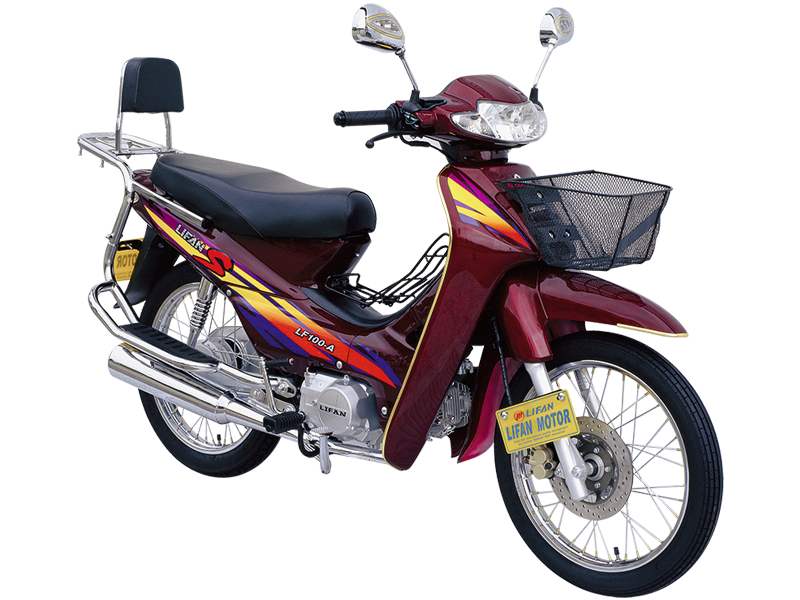

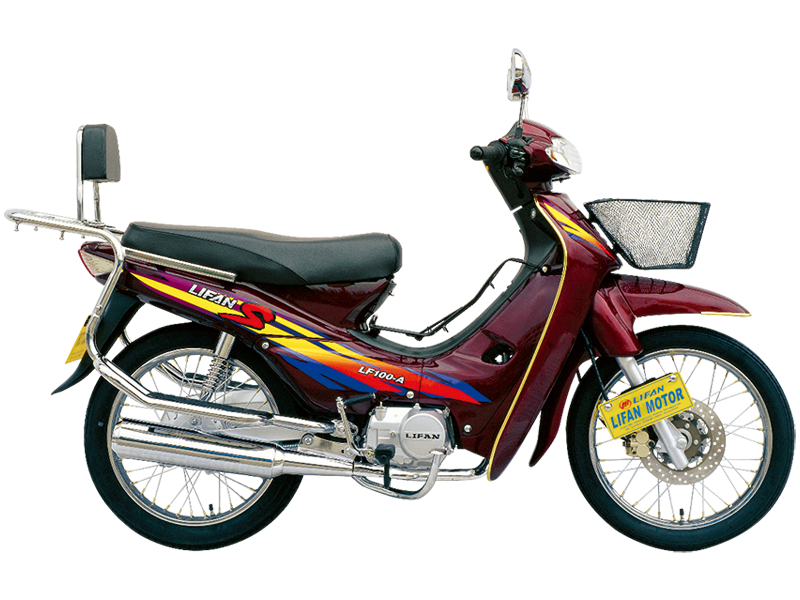

Cub-Style Motorcycle with Front Basket
This cub-style motorcycle features a step-through frame and a front basket for carrying items. It is equipped with a fuel-efficient engine and designed for urban commuting.
Technical Specifications
Overview
Urban Commuter Cub Motorcycle
This cub-style motorcycle is designed for efficient urban commuting and light transportation. Featuring a classic step-through frame, it includes practical utility additions such as a front basket and a rear carrier with a backrest. With its lightweight design, fuel-efficient engine, and semi-automatic transmission, it offers a reliable and economical solution for daily travel.
Performance Metrics
Performance Highlights
85 km/h
Max Speed
1.6 L/100km
Fuel Consumption
3.5 L
Tank Capacity
Technical Specifications
Engine Specifications
| Feature | Specification |
|---|---|
| Engine Type | Single-cylinder, air-cooled, 4-stroke |
| Displacement | 97 / 107 mL |
| Max Power | 5.0 / 5.2 kW @ 7500 rpm |
| Max Torque | 6.5 / 6.9 N.m @ 5000 rpm |
| Compression Ratio | 8.6:1 / 9.0:1 |
Transmission & Handling
- 4-gear, auto-clutched transmission
- Electric and kick start options
- Drum or disc front brake options
- Drum rear brake
- Al-alloy or spoke wheel options
Physical Dimensions
Dimensions & Weight
| Metric | Value | Unit |
|---|---|---|
| Length | 1,900 | mm |
| Width | 715 | mm |
| Height | 1,050 | mm |
| Wheelbase | 1,210 | mm |
| Seat Height | 785 | mm |
| Net Weight | 90 | kg |
- Tire Specifications
- Front: 2.50-17, Rear: 2.75-17
