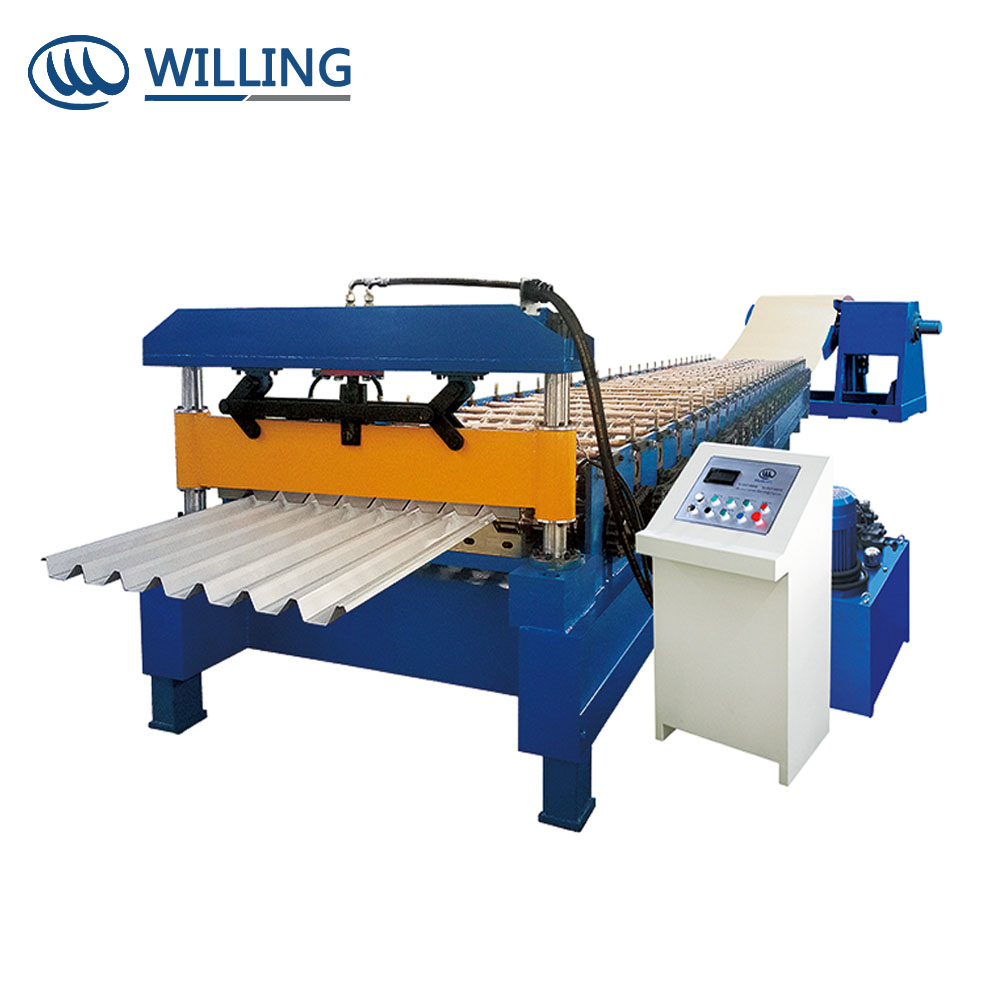

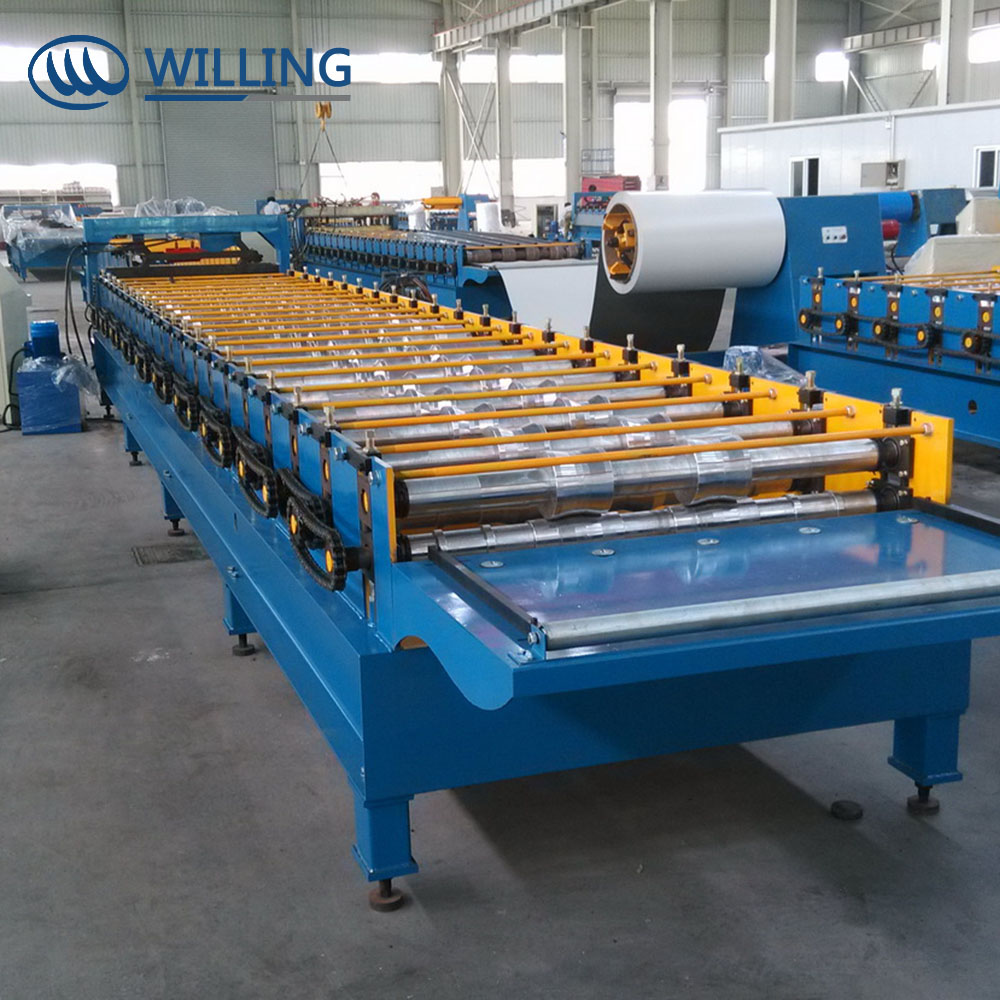

Corrugated Sheet Roll Forming Machine
This machine produces corrugated metal sheets for various construction applications. It is easy to operate and offers lifetime video online service.
Technical Specifications
Overview
High-Efficiency Steel Forming Solution
This Corrugated Sheet Roll Forming Machine is designed for the precise production of steel roof and wall panels. It features an easy-to-operate interface with remote control capabilities and a PLC-based touch screen system. Engineered for durability, it utilizes a chain transmission driven by a robust motor system to ensure consistent forming quality for industrial applications.
Key Performance Metrics
Performance Highlights
15 m/min
Max Forming Speed
4 KW
Main Motor
12 Mpa
Hydraulic Pressure
6,000 KG
Total Weight
Material Specifications
Compatible Materials
| Parameter | Requirement |
|---|---|
| Material Type | Pre-painted & galvanized steel coil |
| Thickness Range | 0.3 - 0.7 mm |
| Yield Stress | Q235-345 Mpa |
Technical Components

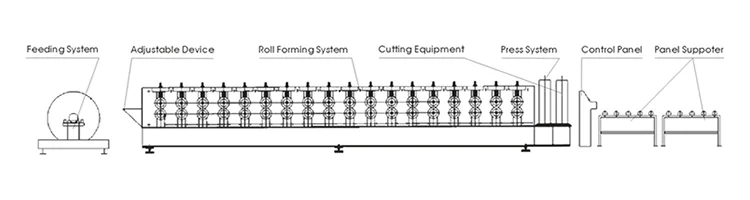

System Components
- Feeding System
- Adjustable Device
- Roll Forming System
- Cutting Equipment
- Press System
- PLC Control Panel
- Panel Supporter
Mechanical Details
Roller & Drive Specifications
| Feature | Specification |
|---|---|

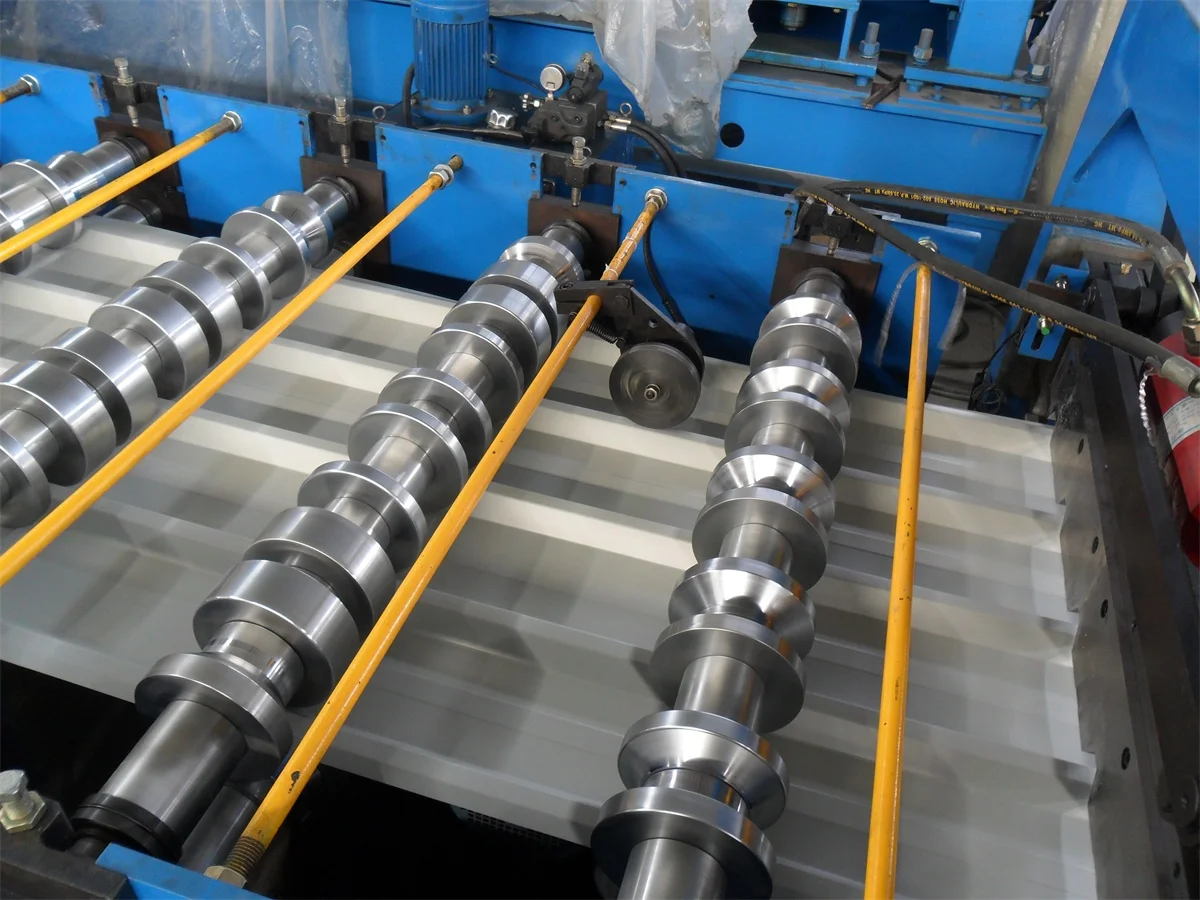

| Roller Material | #45 steel with hard chrome treatment |
| Driven Type | Chain transmission |
| Hydraulic Motor Power | 3 KW |
| Operation Interface | Touch screen and button |
Physical Dimensions
- Machine Dimensions
- 8500 x 1500 x 1500 mm
Certifications & Compliance
Compliance
CESGSISO Standard
Service & Support
- Support Services
- Remote ControlLifetime Video Online ServiceEasy Operation
