Corrugated Metal Sheet Roll Forming Machine

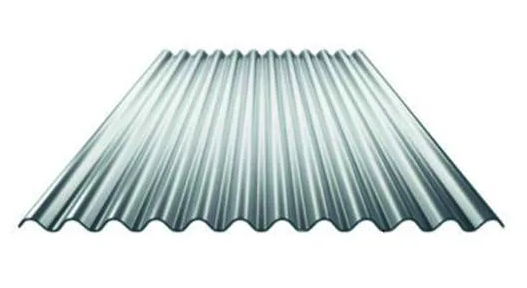

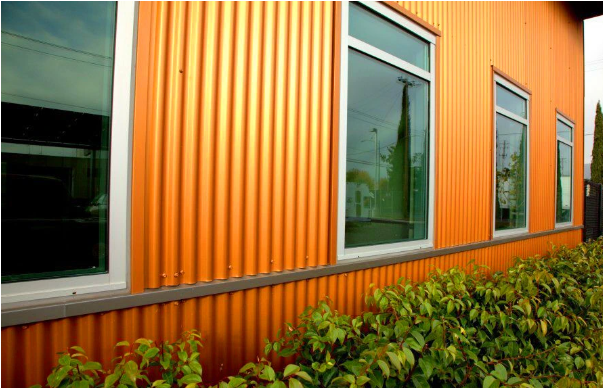

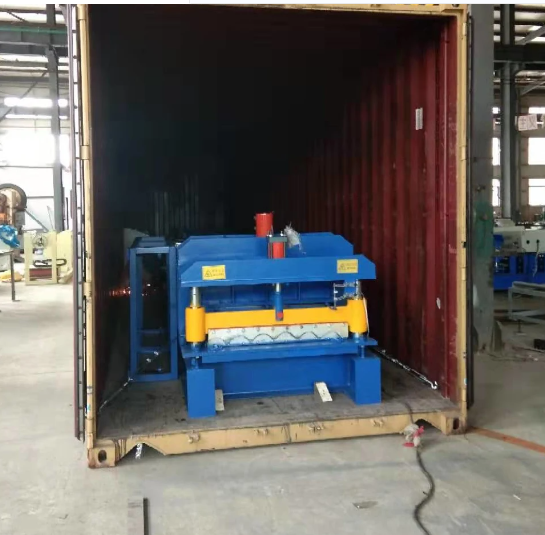

This machine shapes metal sheets into corrugated profiles. It is designed for producing corrugated sheets used in roofing, cladding, and construction applications.
Technical Specifications
Product Overview
Professional Corrugated Roll Forming Solution

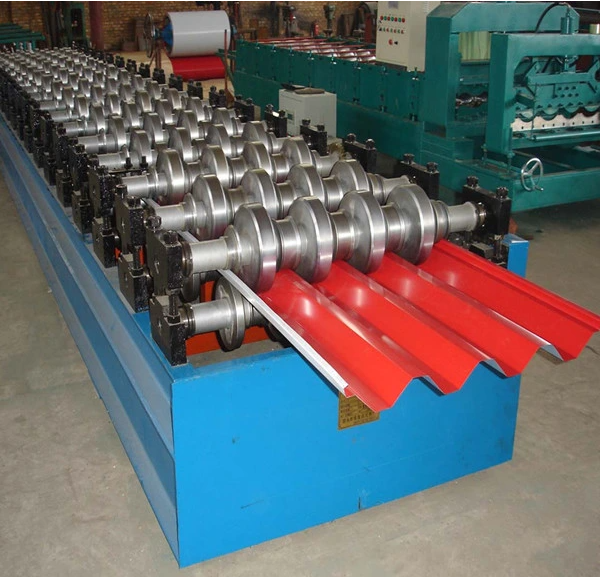

This high-performance roll forming machine is engineered for the continuous production of corrugated metal sheets from coils. It features a robust 350H beam steel frame and precision-forged 45# steel rollers with chrome plating for extended service life. Controlled by a Panasonic PLC system, it ensures high-precision cutting and consistent output for roofing and cladding applications.
Key Performance Metrics
Key Performance Metrics
5.5 kW
Forming Power
17 m/min
Max Line Speed
5 T
De-coiler Capacity
2 mm
Cutting Precision
Material Specifications
- Rolling Thickness Range
- 0.4 - 0.8 mm
- Feeding Width
- 1250 mm
Technical Parameters
- Forming Steps
- 18
- Shaft Diameter
- 76 mm
- Roller Material
- Superior 45# steel forging
- Chrome Plating Thickness
- 0.05 mm
Control & Hydraulics
- Control System
- Panasonic PLCPanasonic Frequency ChangerComputerized Operation
- Hydraulic Station Motor
- 4 kW
Cutting System
- Cutting Blade Material
- Cr12
- Blade Heat Treatment
- HRC58-60
Production Process
Technological Process
- Passive de-coiling
- Guiding & Feeding material
- Roll Forming
- Cutting-to-length
- Output panel delivery
Equipment Configuration
Standard Components
| Component | Quantity |
|---|---|
| Passive de-coiler (5T) | 1 piece |
| Roll forming machine | 1 piece |
| Hydraulic cutting blade | 1 set |
| Hydraulic station | 1 set |
| PLC computer operation cabinet | 1 set |
| Run-out table | 1 set |
Physical Dimensions
- Machine Dimensions (L x W x H)
- 8.5M x 1.6M x 0.8M
