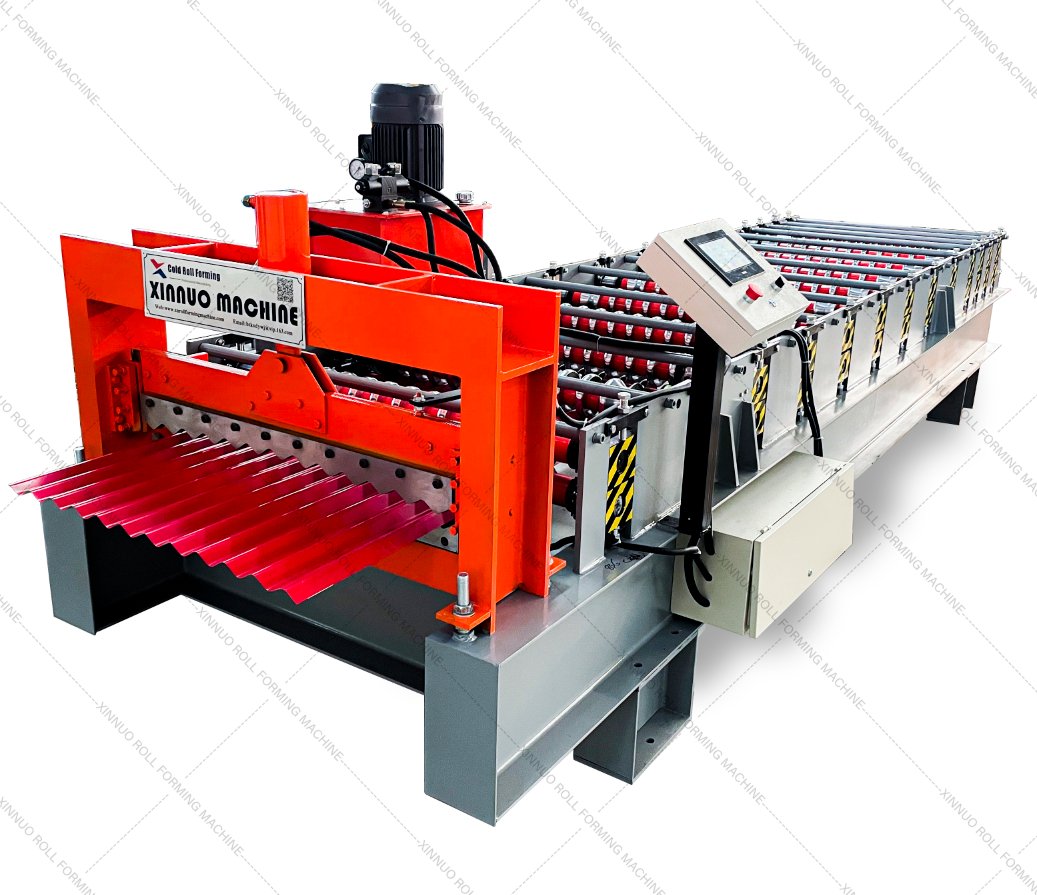

Corrugated Iron Sheet Roll Forming Machine
This roll forming machine produces corrugated iron sheets from aluzinc. It features precision rollers and an automated cutting system.
Technical Specifications
Overview
High-Efficiency Corrugated Sheet Production
This roll forming machine is engineered for the high-volume production of corrugated iron and aluzinc roofing sheets. It features a robust steel frame and 14 rows of precision rollers to ensure consistent profile accuracy and dimensional stability. With an automated hydraulic cutting system and user-friendly controls, it provides a reliable solution for manufacturing industrial cladding and warehouse roofing materials.
Performance Metrics
Key Performance Metrics
12 m/min
Max Productivity
4 kW
Motor Power
5 tons
De-coiler Capacity
Material Compatibility
- Compatible Materials
- Color steel plateAluzincCorrugated ironCarbon Steel 45#
Technical Specifications
Machine Parameters
| Parameter | Value |
|---|---|
| Plate Width | 1000mm |
| Plate Thickness | 0.3-0.8mm |

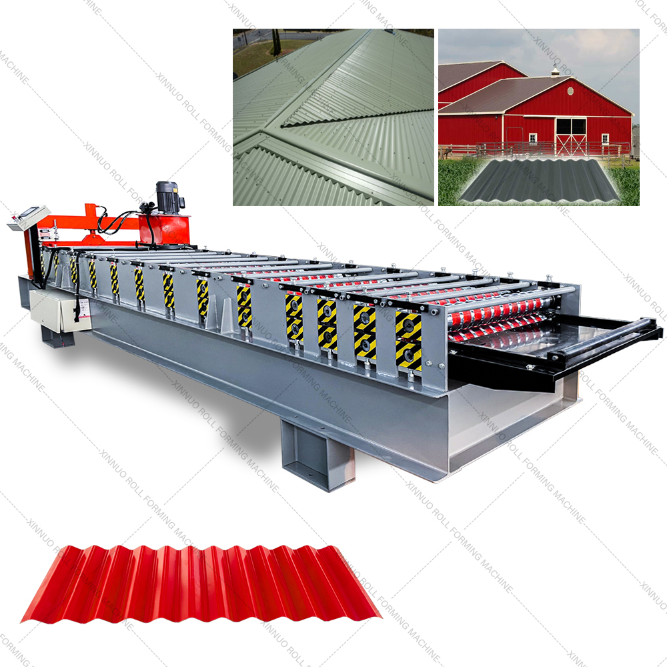

| Forming Rows | 14 rows |
| Roller Diameter | 80mm |
| Roller Material | Carbon Steel 45# |
| Cutting Blade Material | Cr12 |

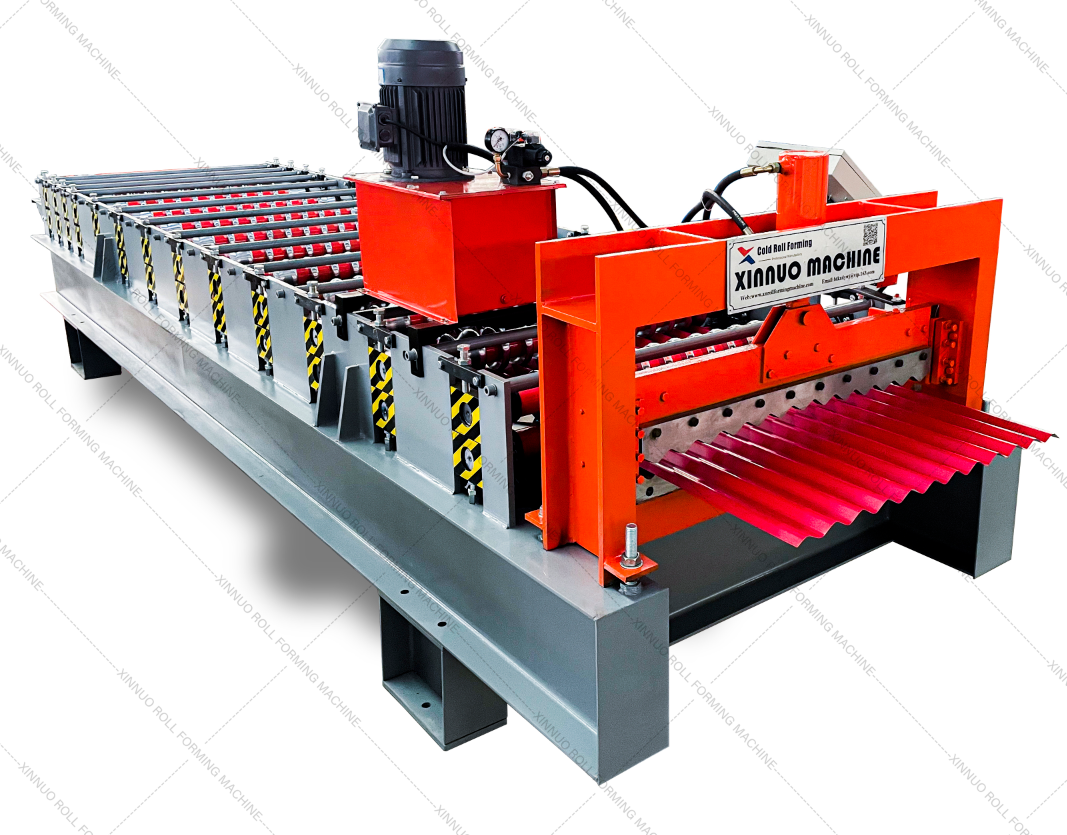

| Cutting Method | Hydraulic mould cutting |
| De-coiler Type | Manual |
Features & Support
Key Features
- Automated hydraulic cutting system for precise length control
- Precision-engineered rollers for consistent corrugated profiles
- Robust frame construction for high-stability operation
- User-friendly control panel for speed and parameter adjustment
- Safety features including emergency stop buttons and protective guards
Applications
Primary Applications
Industrial WorkshopsWarehousesHigh-rise ConstructionRoofing PanelsWall Cladding
Service & Warranty
- Service Information
- 1-year standard warranty (negotiable at time of order)
