Technical Specifications
Overview
High-Efficiency Corrugated Iron Sheet Forming

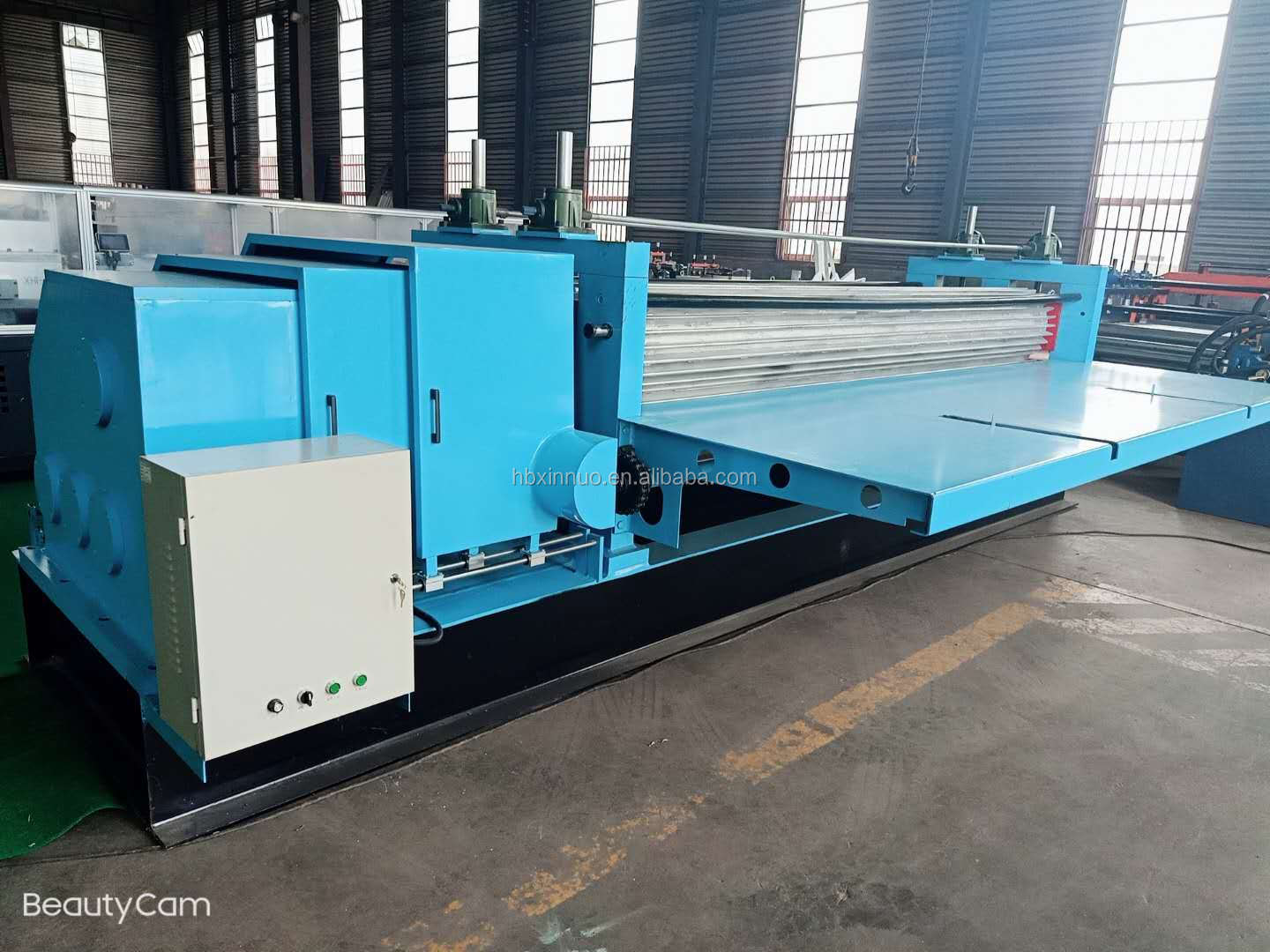

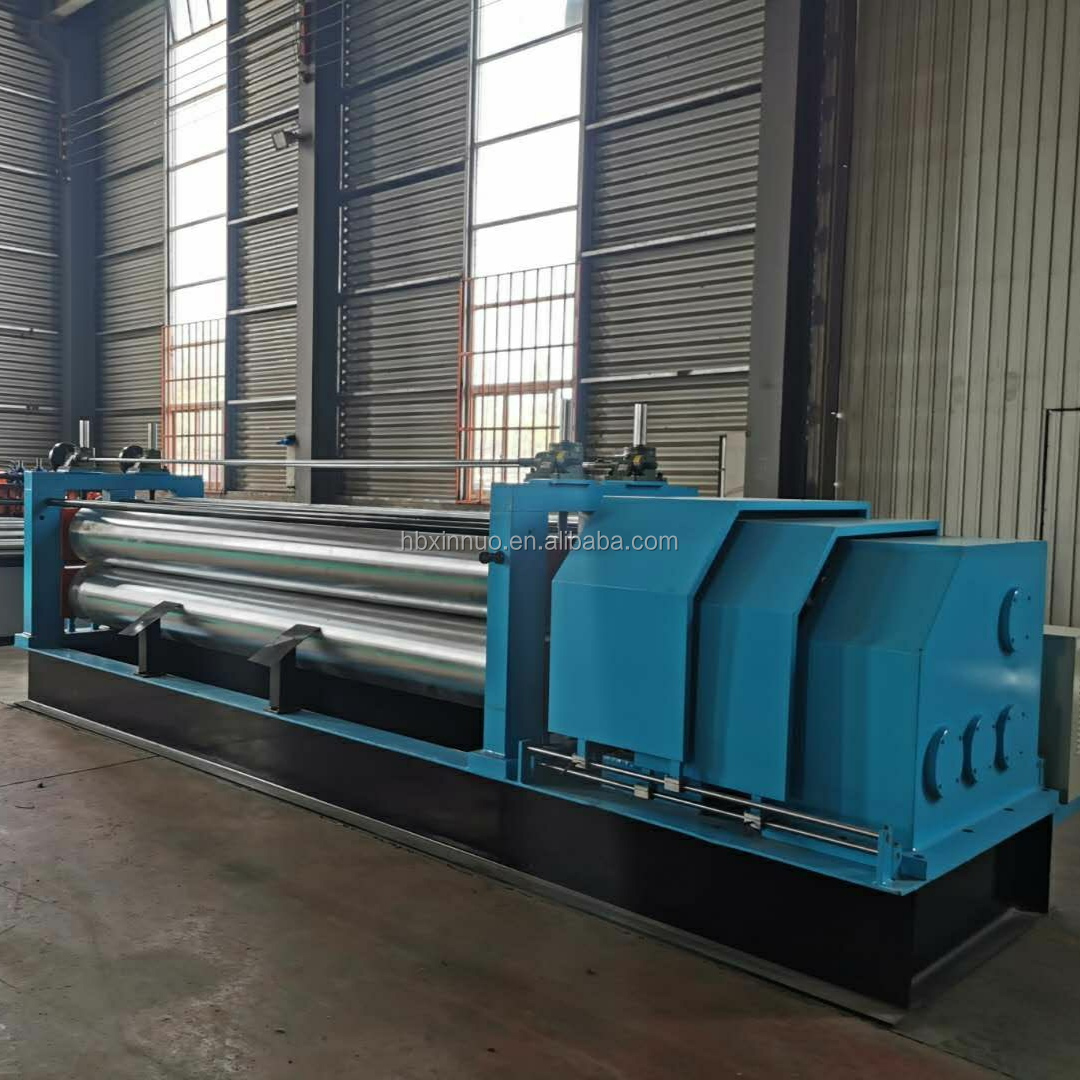

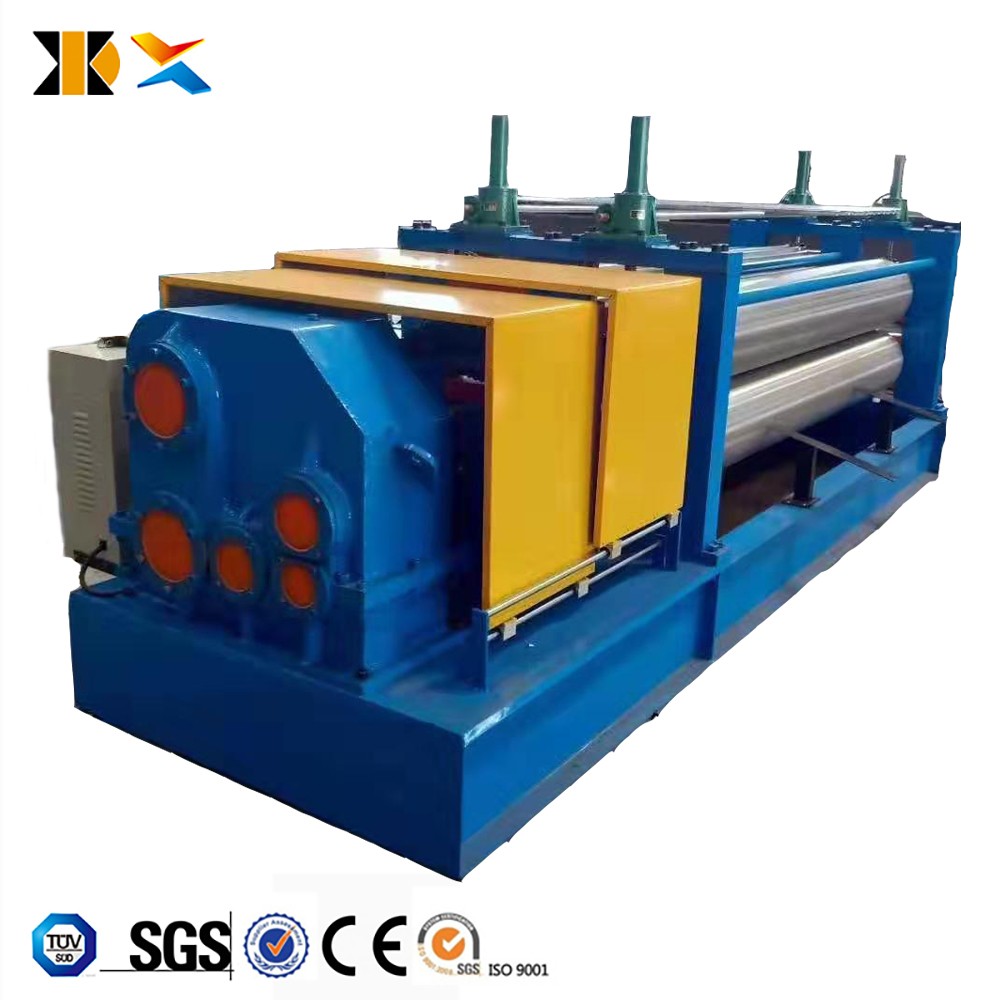

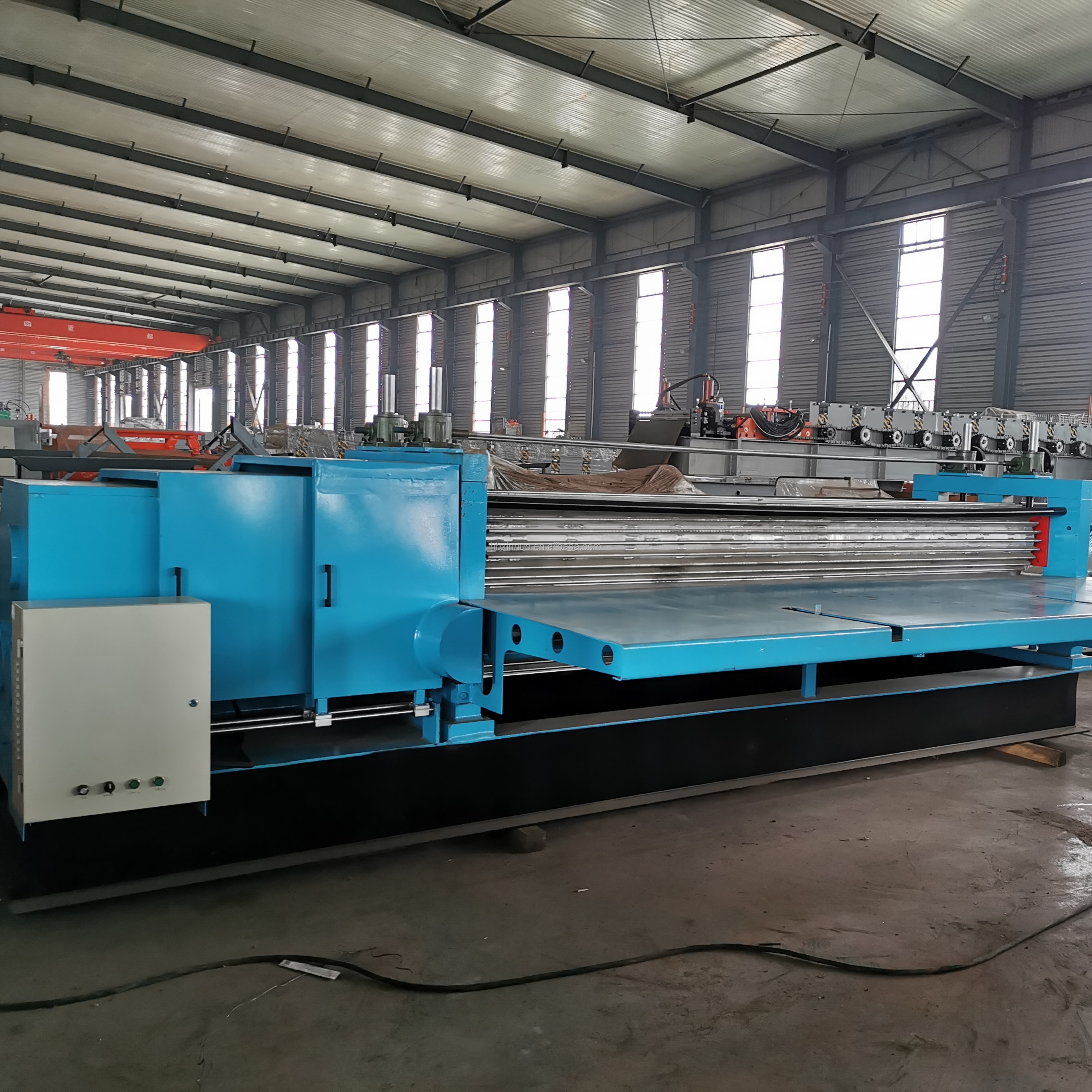

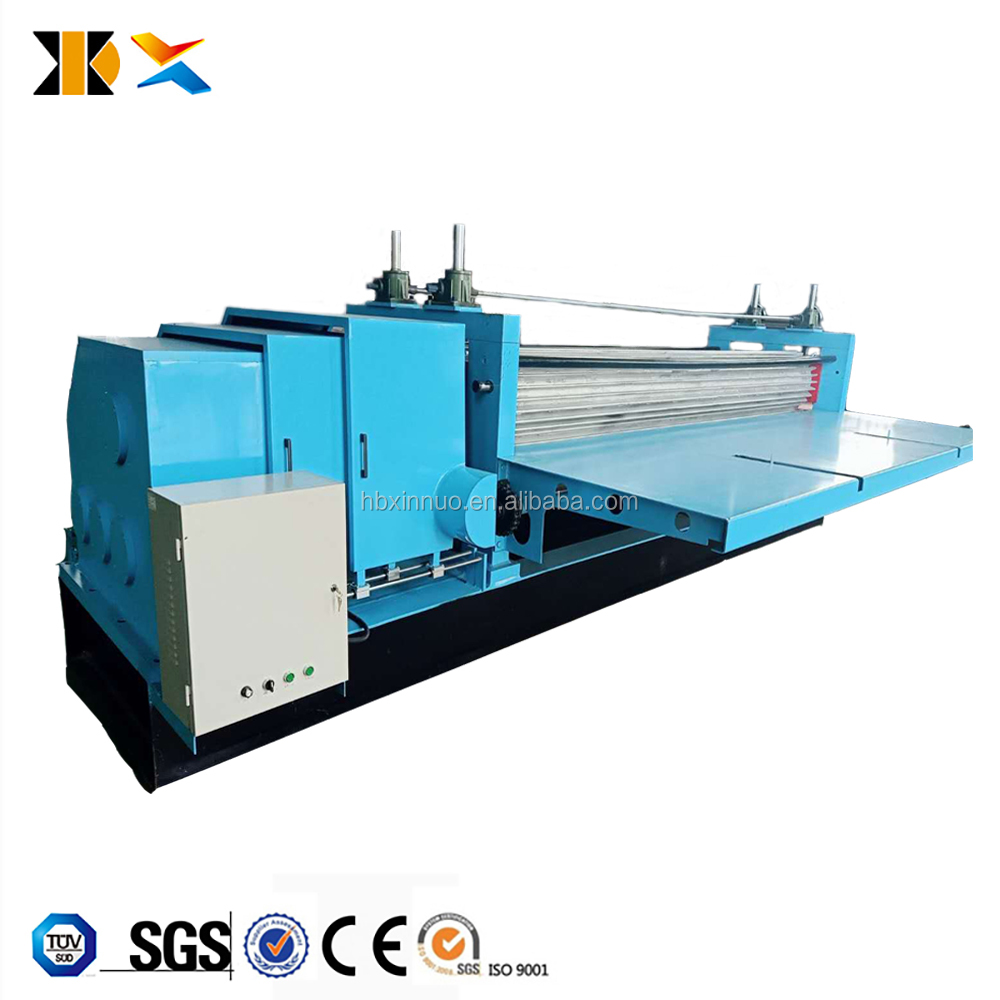

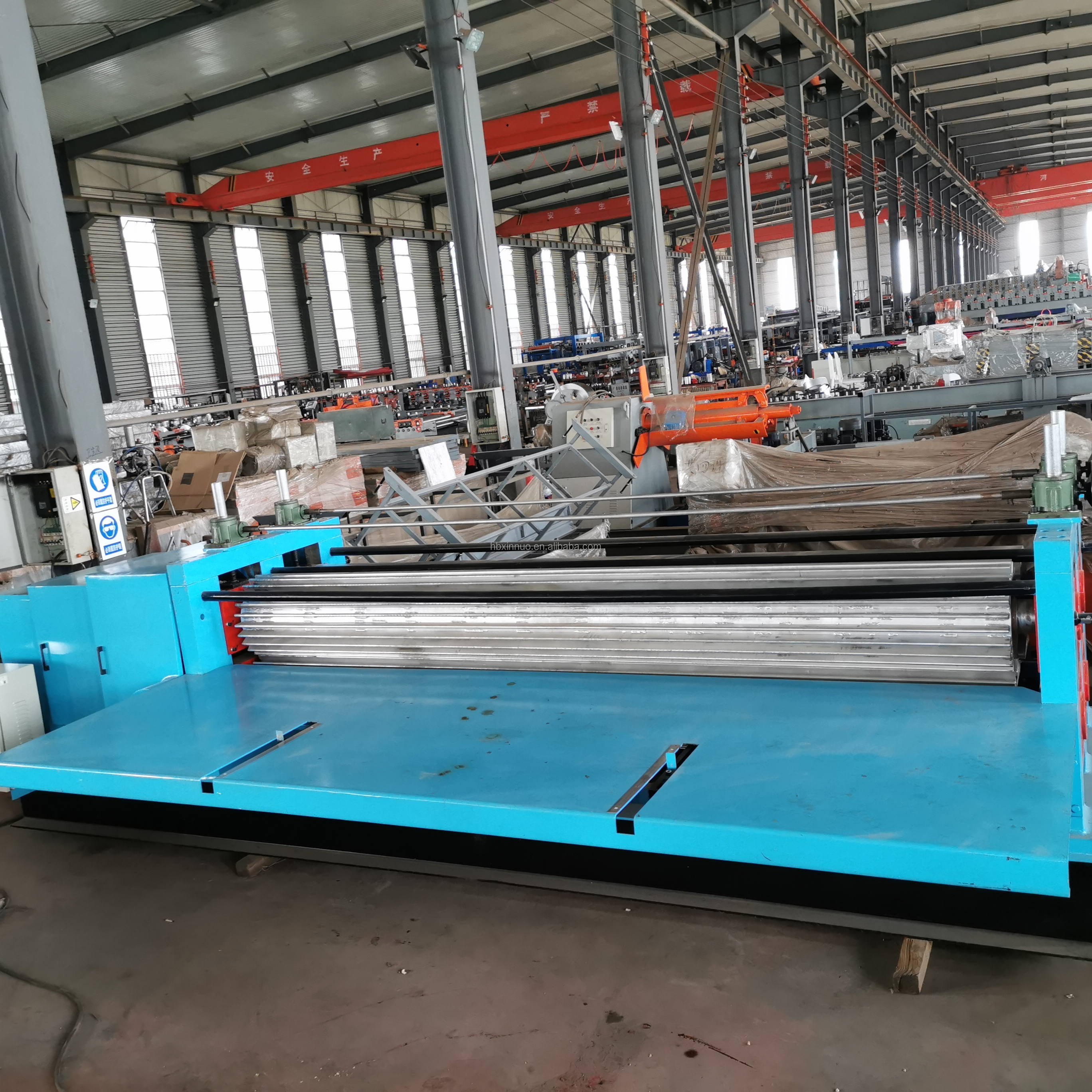

This barrel corrugated iron sheet making machine is a robust rolling mill designed for the precise production of metal roofing and cladding materials. Engineered for industrial use, it features a series of heavy-duty rollers that ensure consistent shaping, high-quality output, and a professional finish. With its simple operation and reliable performance, it provides an efficient solution for high-volume manufacturing of corrugated profiles.
Technical Specifications
- Feeding Material Thickness
- 0.12-0.3mm / 0.16-0.4mm
- Maximum Input Width
- 1000 mm
- Standard Feeding Width
- 914 mm
Performance Metrics
Productivity
12 m/min
Max Speed
4 T/hour
Max Capacity
- Operating Speed
- 9-12 m/min
- Production Capacity
- 2-4 Tons/hour
Output Profile
Corrugation Dimensions
| Dimension Type | Value |
|---|---|
| Corrugation Height | 18mm |
| Corrugation Pitch | 76mm |
| Effective Width (Top) | 760mm |
| Overall Width (Bottom) | 820mm |
Compliance & Quality
- Quality Certifications
- CEISO 9001SGSTUV
Manufacturing Process
Production Workflow
- Raw Material Sourcing
- Precision Machining
- Base Plate Production
- Shot Blasting & Surface Treatment
- Electrostatic Spray Painting
- Component Assembly
- System Debugging
- Final Packing & Shipment
Service & Support
Manufacturer Services
Custom SourcingProfessional Design TeamOn-site Repair SupportIn-house Control System Design
- Standard Warranty
- 1 Year (Negotiable)
