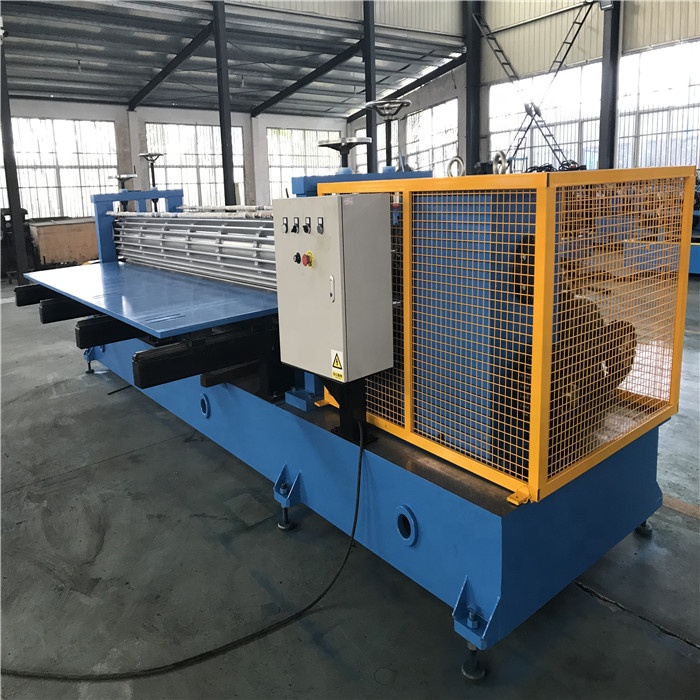

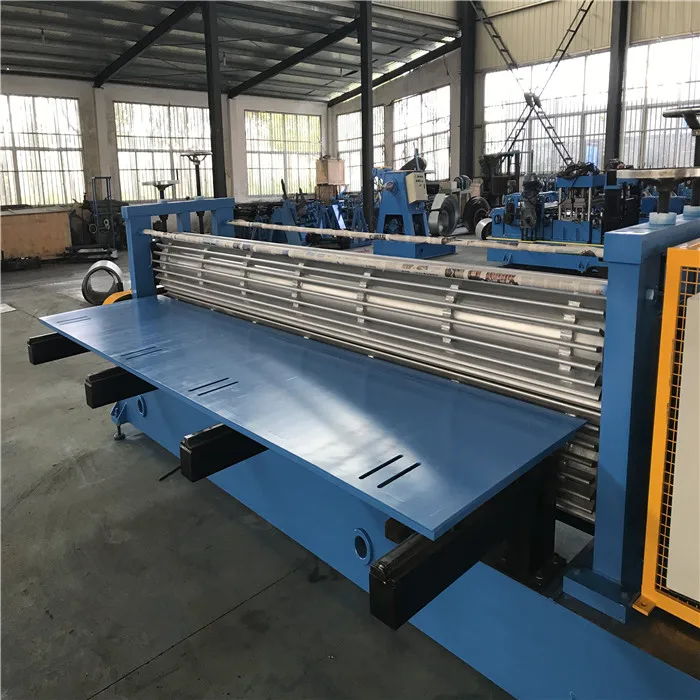

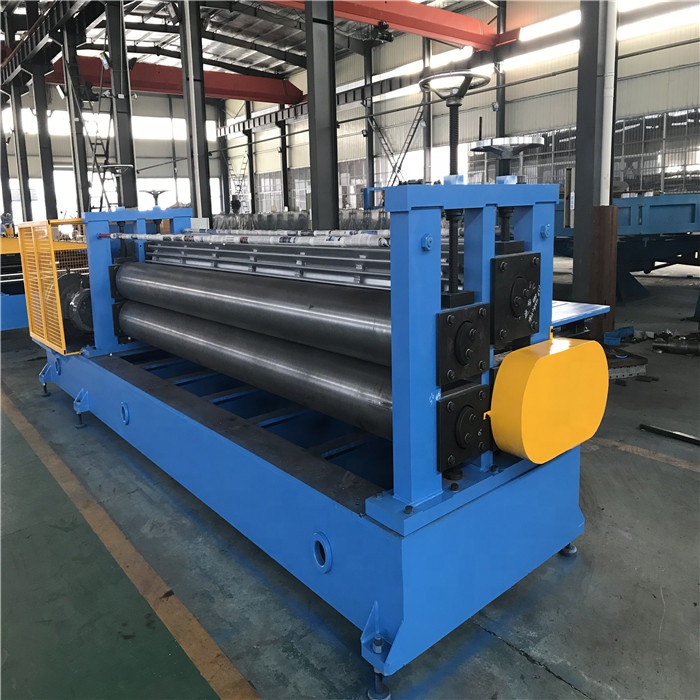

Corrugated Barrel Roll Forming Machine
The corrugated barrel roll forming machine is easy to use and fully automatic with remote control. It is designed for shaping color-coated steel plates into wave-shaped pressed plates suitable for various applications.
Technical Specifications
Product Overview
High-Efficiency Corrugated Roll Forming

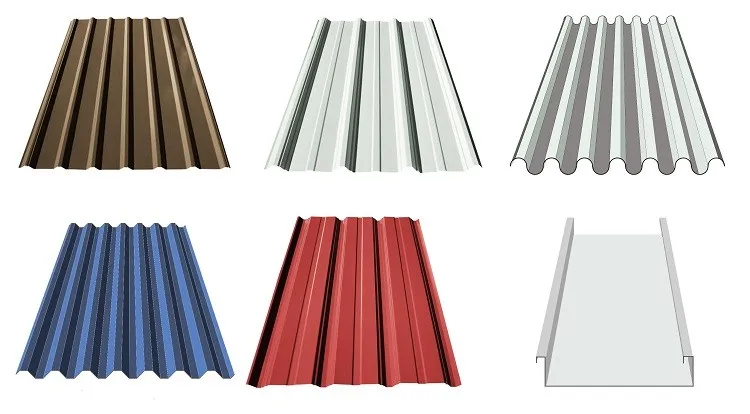

This fully automatic corrugated barrel roll forming machine is designed for high-speed production of color-coated steel plates into various wave-shaped profiles. It features a user-friendly interface with remote control capabilities, making it easy to operate for industrial and civil building applications. The resulting products are lightweight, high-strength, and offer excellent fireproof and anti-seismic properties for roofs and walls.
Key Performance Metrics
Performance Highlights
Technical Specifications
Technical Details
| Parameter | Value |
|---|---|
| Material Thickness | 0.18 - 0.3 mm |
| Feeding Roller Diameter | 460 mm |
| Vertical Roller Diameter | 350 mm |
| Diameter of Shaft | 70 mm |
| Vertical Roller Material | 45# Forge Steel |
| Power Supply | 380V 50Hz 3-Phase |
Operational Features
Automation & Control
- Fully automatic operation
- Remote control included

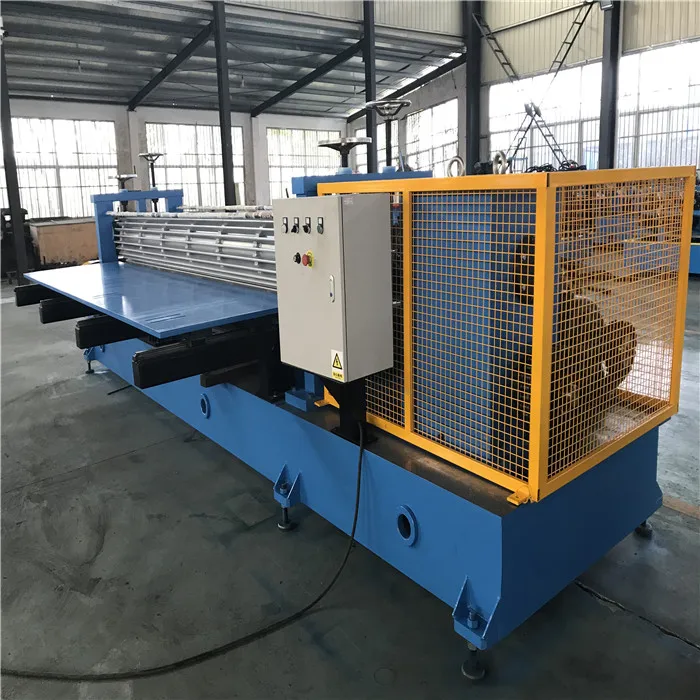

- Integrated control panel for speed and depth adjustment
- High-speed cold-rolling process
Application & Benefits
- Application Areas
- Industrial BuildingsWarehousesRoofingInterior DecorationExterior Wall CladdingSteel Structures
Product Advantages
Material Advantages
Safety & Construction
Robust Industrial Design

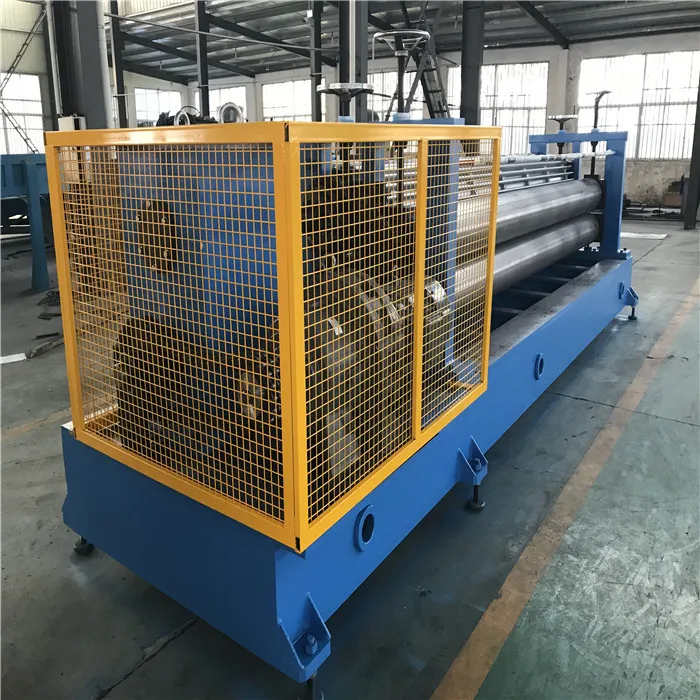

The machine is constructed with a heavy-duty steel frame to ensure stability and minimal vibration during high-volume production. It incorporates safety features including a protective cage around moving parts and emergency stop buttons to protect operators in industrial environments.
