Technical Specifications
Overview

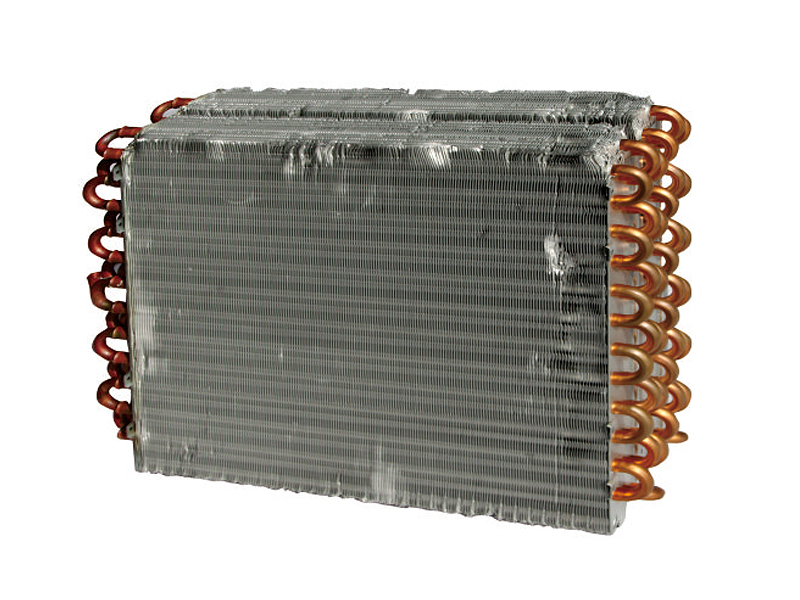

High-Efficiency Finned Evaporator
This copper tube finned evaporator is engineered for optimal heat transfer in refrigeration and air conditioning systems. Constructed with high-quality copper tubing and aluminum fins, the design maximizes surface area to ensure superior cooling performance. It is a robust solution suitable for various professional refrigeration applications, including refrigerators and freezers.
Technical Specifications
- Tube Diameter
- 8.0 - 9.52 mm
- Tube Wall Thickness
- 0.32 - 0.36 mm
- Aluminum Fin Thickness
- 0.13 - 0.25 mm
- Side Plate Thickness
- 0.8 - 1.5 mm
- Maximum Length
- 1500 mm
- Pitch Configuration
- 25 x 25 square
Performance Standards
Cleanliness and Impurity Standards
| Content (cm3) | Residual Moisture (mg) |
|---|---|
| ≤100 | ≤10 |
| 101–200 | ≤20 |
| 101–400 | ≤25 |
| 401–800 | ≤30 |
Impurity Limits
100 mg/100cm3
Max Residual Impurities
2 mg
Max Single Impurity
Applications
- Compatible Equipment
- RefrigeratorFreezerAir Conditioning Systems
Manufacturing Process
Production Workflow
- Bending
- Stamping
- Expansion
- Degreasing
- Welding Assembly
- Leak Detection
- Drying
- Inspection
- Packaging
