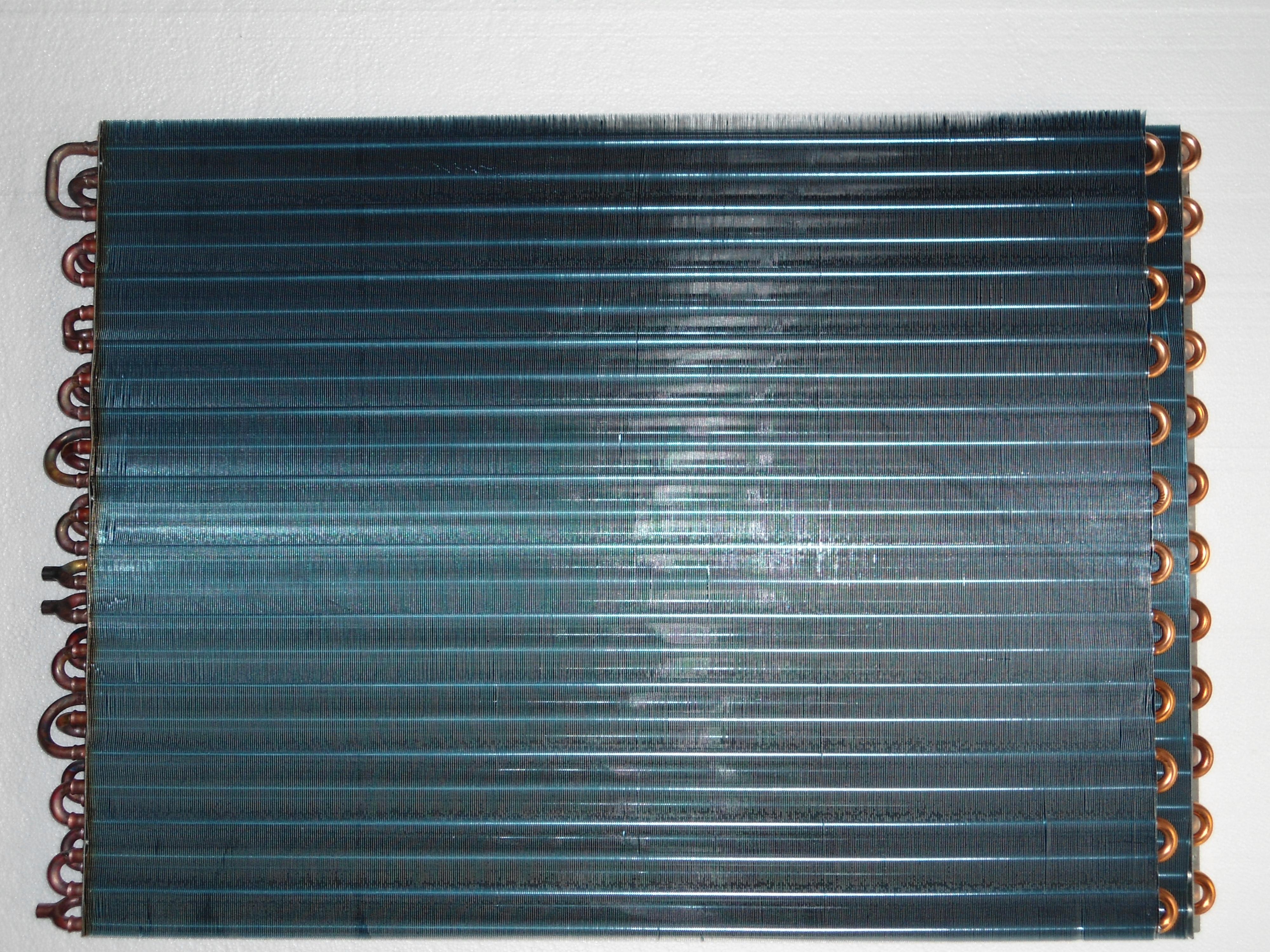

Copper Tube Aluminum Fin Evaporator Coil
High-efficiency evaporator coil designed for optimal heat transfer in refrigeration and air conditioning systems. Constructed with copper tubes and aluminum fins for maximum thermal conductivity.
Technical Specifications
Product Overview
High-Efficiency Thermal Performance
This Copper Tube Aluminum Fin Evaporator Coil is engineered for optimal heat transfer in demanding refrigeration and HVAC applications. Featuring a robust combination of high-conductivity copper tubing and durable aluminum fins, it provides excellent thermal performance and corrosion resistance. The design supports versatile integration into residential, commercial, and industrial systems, ensuring reliable temperature control and energy efficiency.
Material Specifications
- Tube Material
- Copper (Inner smooth or inner grooved)
- Fin Material
- Bare or Hydrophilic Aluminum Foil (Green antibacterial or silica antibacterial)
- Side Plate Materials
- Galvanized SteelAluminumStainless Steel
- Side Plate Thickness
- 0.8mm - 1.5mm
Technical Standards
Technical Specifications
| Tube OD | Hole Distance (mm) | Fin Type | Max Rows |
|---|---|---|---|
| Ø5 | 19.5 x 11.6 | Slit fin | 5 |
| Ø5 | 19.05 x 16.5 | Flat/Wave fin | 12 |
| Ø7 | 21 x 12.7 | Wave/Slit/Louver | 6 |
| Ø7.94 | 22 x 19.05 | Flat/Slit/Wave | 4 |
| Ø9.52 | 25 x 21.65 | Flat/Slit/Wave | 6 |
| Ø12.7 | 27.5 x 31.65 | Double Wave | 4 |
Available Tube Diameters
- Ø5mm
- Ø7mm
- Ø7.94mm
- Ø9.52mm
- Ø12.7mm
