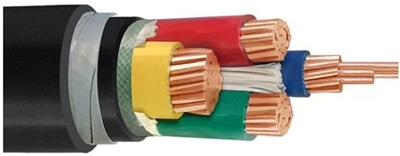

Copper Conductor PVC Insulated Steel Tape Armored Power Cable
This power cable features a copper conductor, PVC insulation, and steel tape armor for mechanical protection. It is designed for power transmission and distribution in various applications.
Technical Specifications
Product Overview
VV22 Power Cable Features

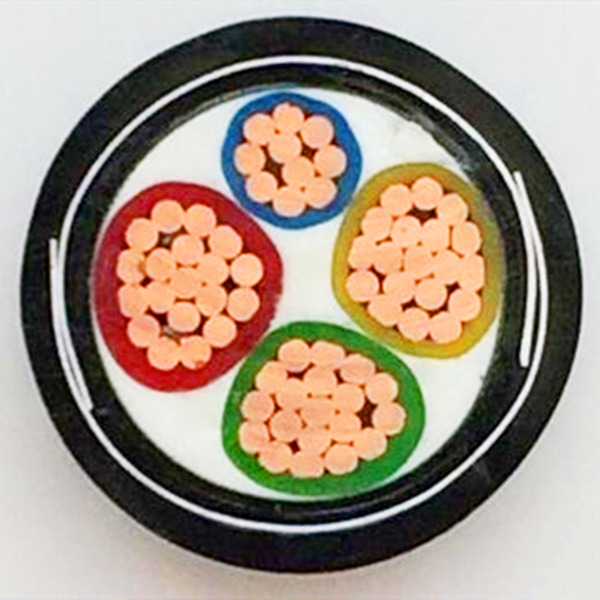

The VV22 Copper Conductor PVC Insulated Steel Tape Armored Power Cable is engineered for reliable power transmission and distribution in demanding environments. Featuring plain annealed copper conductors and robust double steel tape armoring, this cable provides essential mechanical protection against external squeezing and physical damage. With a durable PVC outer sheath, it offers superior resistance to moisture, chemicals, and abrasion, making it an ideal choice for both industrial and commercial power distribution systems.
Technical Specifications
Available Core Numbers
- 1C
- 2C
- 3C
- 4C
- 5C
- 3+1C
- 3+2C
- 4+1C
- Conductor Material
- Plain annealed copper wires, solid class 1 or strand class 2
- Insulation
- Polyvinyl Chloride (PVC)
- Armor Type
- Double Steel Tape
- Outer Sheath
- Polyvinyl Chloride (PVC)
- Voltage Rating
- 0.6/1kV (600/1000V)
- Working Temperature
- -15°C to +70°C
- Min. Bending Radius
- 10 x Outer Diameter
Logistics and Standards
- Compliance Standards
- IEC 60502GB/T 12706-2020
- Typical Lead Time
- 7-10 working days
- Packaging
- Wooden drum (ISPM 15 compliant)
