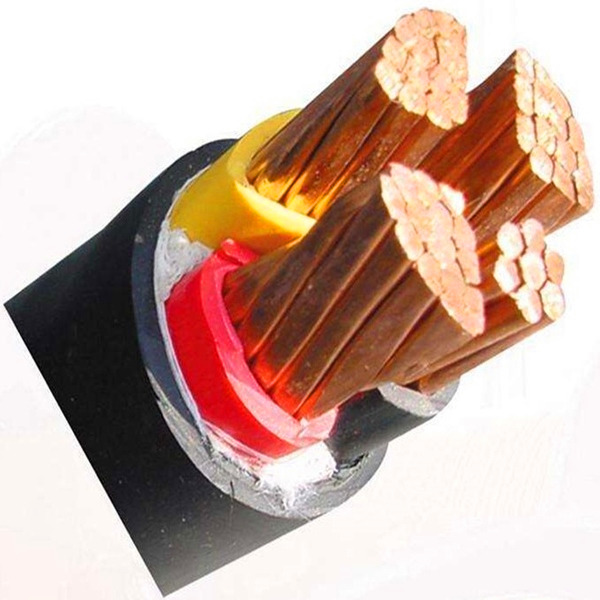

Copper Conductor PVC Insulated Power Cable
This power cable features a plain annealed copper conductor with PVC insulation and a PVC sheath. It is suitable for electrical power transmission and distribution lines with a rated voltage of up to 0.6/1kV.
Technical Specifications
Overview
Reliable Power Distribution

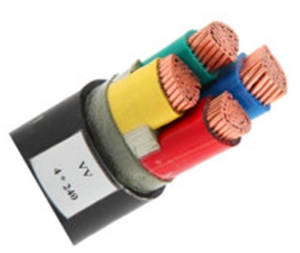

These NYY copper conductor power cables are engineered for robust performance in both industrial and residential electrical systems. Featuring PVC insulation and a durable PVC sheath, they are designed for safe power transmission and distribution in indoor, outdoor, and underground installations. The versatile construction supports a wide range of core configurations to meet specific project requirements.
Technical Specifications

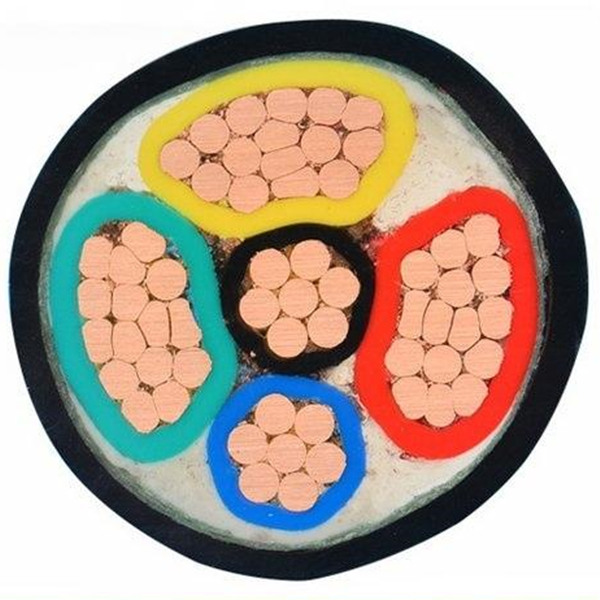

Core Configurations
- 1C
- 2C
- 3C
- 4C
- 5C
- 3+1C
- 3+2C
- 4+1C
- Conductor Material
- Plain annealed copper wires, solid class 1, or strand class 2
- Insulation Material
- Polyvinyl Chloride (PVC)
- Sheath Material
- Polyvinyl Chloride (PVC)
- Voltage Rating
- 0.6/1kV (600/1000V)
- Production Size
- 1.5 - 630 mm2
- Insulation Colors
- RedYellowBlueGreenBrownBlackWhiteGreyYellow/Green
Operational Metrics
Working Temperature
-15 °C
Min Temp
70 °C
Max Temp
- Min. Bending Radius
- 10 x Outer Diameter
Compliance & Logistics
Standards
IEC 60502GB/T 12706-2020
- Packing
- Wooden drum with IPPC logo (ISPM 15 compliant)
- Delivery Time
- 7-10 working days
