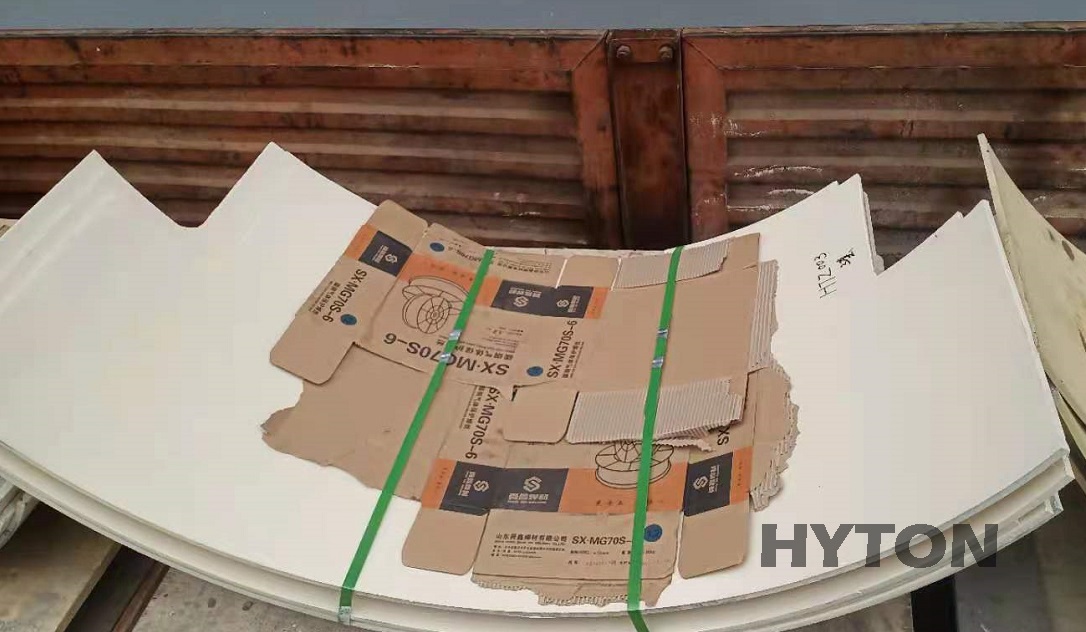

Cone Crusher Main Frame Liner
This main frame liner is designed for HP300 cone crushers. It provides essential protection to the main frame of the crusher, ensuring structural integrity and prolonging the equipment's lifespan.
Technical Specifications
Product Overview
High-Performance Cone Crusher Main Frame Liner
This main frame liner is engineered for HP300 cone crushers, providing essential protection and maintaining structural integrity during heavy-duty mining operations. Manufactured with original technical standards, it ensures a long service life and high wear resistance to minimize equipment downtime. The liner works in tandem with the main shaft and eccentric sleeve to facilitate optimal lubrication and crushing efficiency.
Technical Specifications
Material Standard
Original MaterialHigh Wear ResistanceWear-Resistant Casting
- Primary Compatibility
- HP300 Cone Crusher
- Performance Feature
- Long using time with original technical specifications
Compatibility Matrix

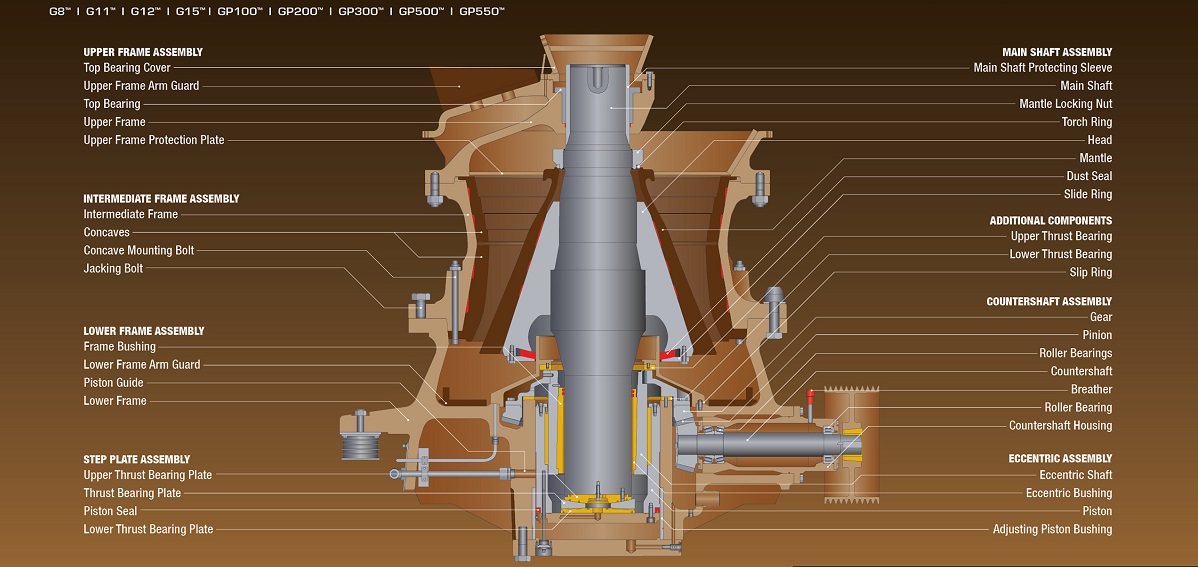

GP Series Compatibility
| Model Range |
|---|
| GP100 / GP100S |
| GP200 / GP200S |
| GP300 / GP300S |
| GP500 / GP500S |
| GP550 |
| GP11F |
| GP220 |
Manufacturing & Quality

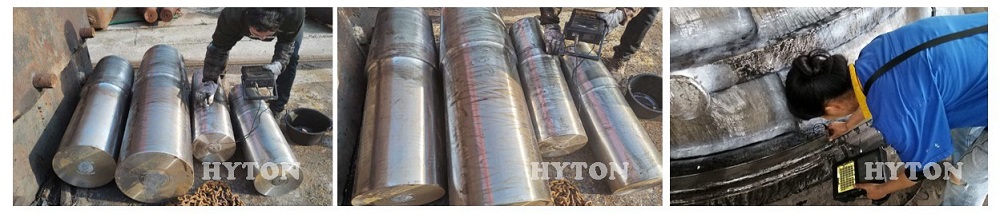

Inspection Standards
- Video inspection available
- Non-destructive testing
- Strict machining inspection
- Heat treatment verification
- Annual Production Capacity
- 30000 tons
- Certifications
- ISO System CertifiedQC ProvidedWarranty Included
Service & Logistics
Service Highlights
20 yr
Years Experience
1 PC
Minimum Order
24 hrs
Service Availability
Shipping Information
- 1 day to Shanghai Port
- 2 days to Ningbo/Guangzhou Port
- Iron Pallet with Air Bubble Film packing
Spare Parts Range
- Other Available Parts
- Adjustment RingBowlDrive GearBronze BushingTramp Release CylinderProtection BushingToggle Plate
