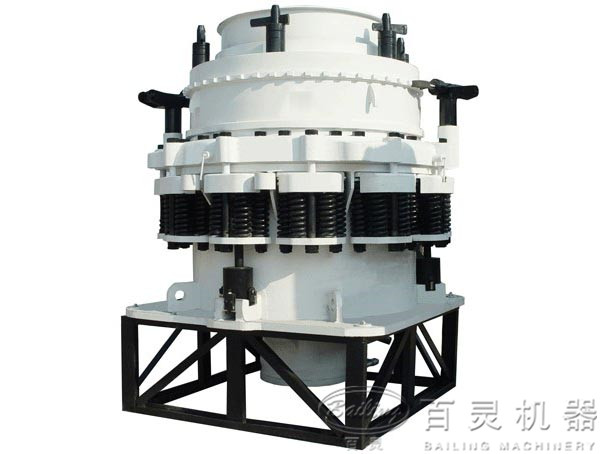

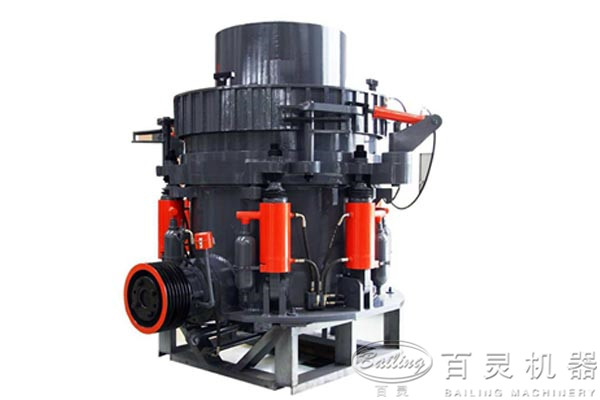

Cone Crusher for Material Reduction
This cone crusher is designed for reducing the size of rocks and ores in demanding environments. It features a heavy-duty construction and a conical crushing chamber for efficient and consistent material processing.
Technical Specifications
Product Overview
High-Efficiency Material Reduction
This cone crusher is engineered for superior material reduction in mining, aggregate, and construction applications. Featuring a deep crushing cavity, it maximizes feeding and output capacity while maintaining a high crushing ratio for homogeneous final product sizes. Designed with energy efficiency in mind, the unit offers significant power savings of 15%-30% compared to standard models, while operating with reduced noise and dust levels.
Key Features
Operational Advantages
- Deep crushing cavity for increased capacity
- High reduction ratio with homogeneous output
- Adjustable discharge opening via gasket system
- Reliable lubrication system
- Energy-saving design (15-30% reduction)
- Low noise and dust operation
Technical Specifications
Model Comparison Table
| Model | Head Diameter (mm) | Max Feed Size (mm) | Power (kW) | Weight (t) |
|---|---|---|---|---|
| PYB900 | 900 | 115 | 55 | 11.2 |
| PYZ900 | 900 | 60 | 55 | 11.2 |
| PYD900 | 900 | 50 | 55 | 11.3 |
| PYB1200 | 1,200 | 145 | 110 | 24.7 |
| PYZ1200 | 1,200 | 100 | 110 | 25 |
| PYD1200 | 1,200 | 50 | 110 | 25.3 |
| PYB1200 (1750) | 1,750 | 215 | 160 | 50.3 |
| PYZ1200 (1750) | 1,750 | 185 | 160 | 50.3 |
| PYD1200 (1750) | 1,750 | 85 | 160 | 50.2 |
| PYB1200 (2200) | 2,200 | 300 | 260 | 80 |
| PYZ1200 (2200) | 2,200 | 230 | 260 | 80 |
| PYD1200 (2200) | 2,200 | 100 | 260 | 81 |
Performance Metrics
30 %
Max Energy Savings
300 mm
Max Feed Size
280 kW
Max Motor Power
