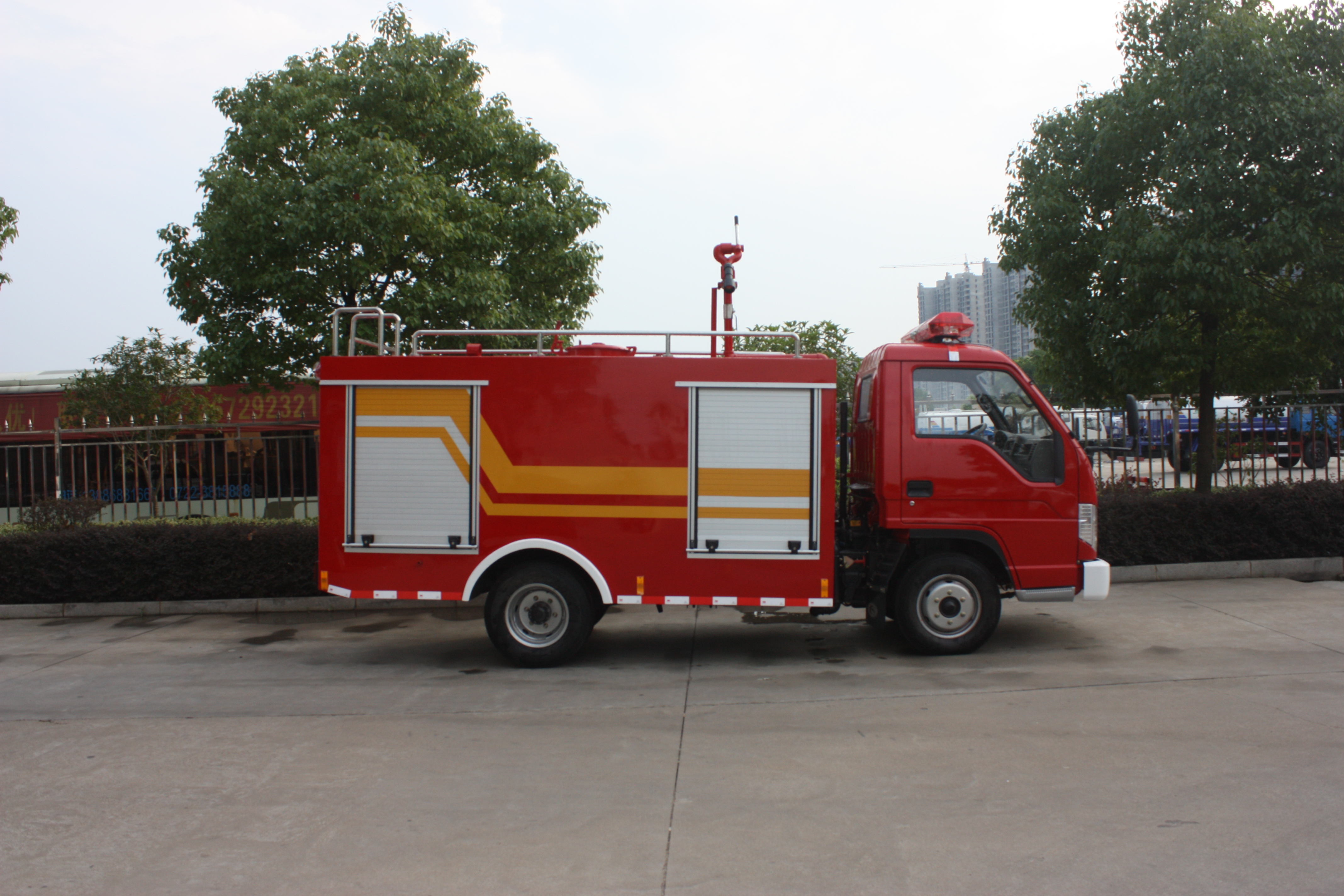

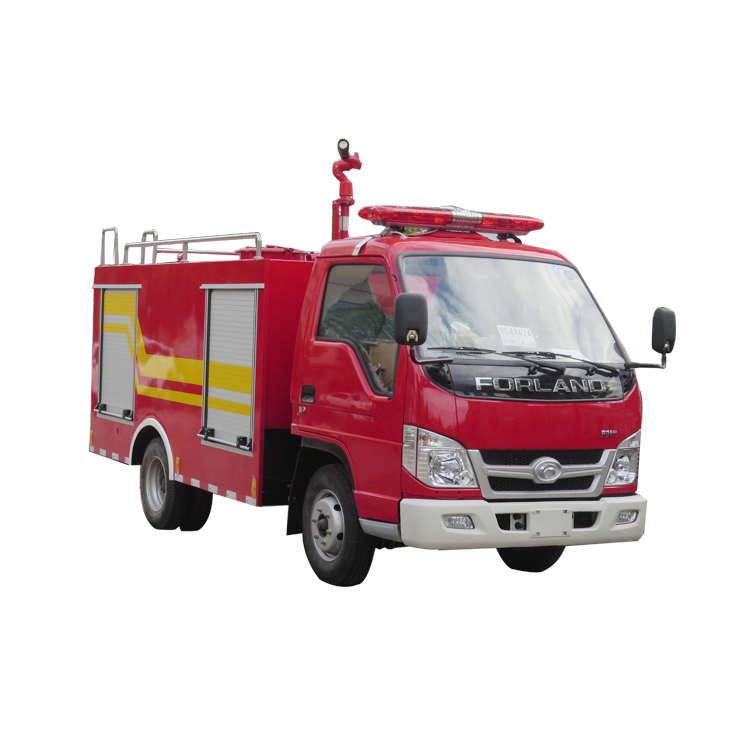

Compact Urban Fire Truck with Water Cannon
This compact fire truck is designed for rapid response and maneuverability in urban environments. It is equipped with a roof-mounted water cannon and side storage compartments.
Technical Specifications
Overview
Compact Urban Firefighting Solution
This compact fire fighting truck is engineered for rapid response and high maneuverability in dense urban environments. Built on a 4x2 chassis, it features a 1500L water tank and a powerful roof-mounted water monitor capable of a 20-30 meter range. The vehicle is fully equipped with emergency lighting, sirens, and specialized storage compartments, making it an ideal asset for municipal fire departments requiring agile equipment.
Vehicle Dimensions
- Gross Vehicle Weight
- 4340 kg
- Curb Weight
- 3365 kg
- Overall Dimensions
- 5290 x 1980 x 2610 mm
- Wheelbase
- 2600 mm
Engine & Performance
Engine Specifications
65 hp
Horsepower
2,156 ml
Displacement
90 km/h
Max Speed
Emission Standard
Euro 2
- Driving Configuration
- 4x2
Firefighting Equipment
- Water Tank Capacity
- 1500 L
- Pump Capacity
- 40 m³/h at 0.5 MPa
- Water Monitor Range
- 20-30 m
Chassis & Suspension
- Leaf Spring Configuration
- 5/7+3
- Tire Specification
- 7.00-16
- Approach/Departure Angles
- 21° / N/A
