Compact Stepper Motor for Precise Positioning
This compact stepper motor is designed for applications requiring precise positioning and controlled movement. It features a metallic housing, brass gear, and color-coded wires for easy integration.
Technical Specifications
Overview

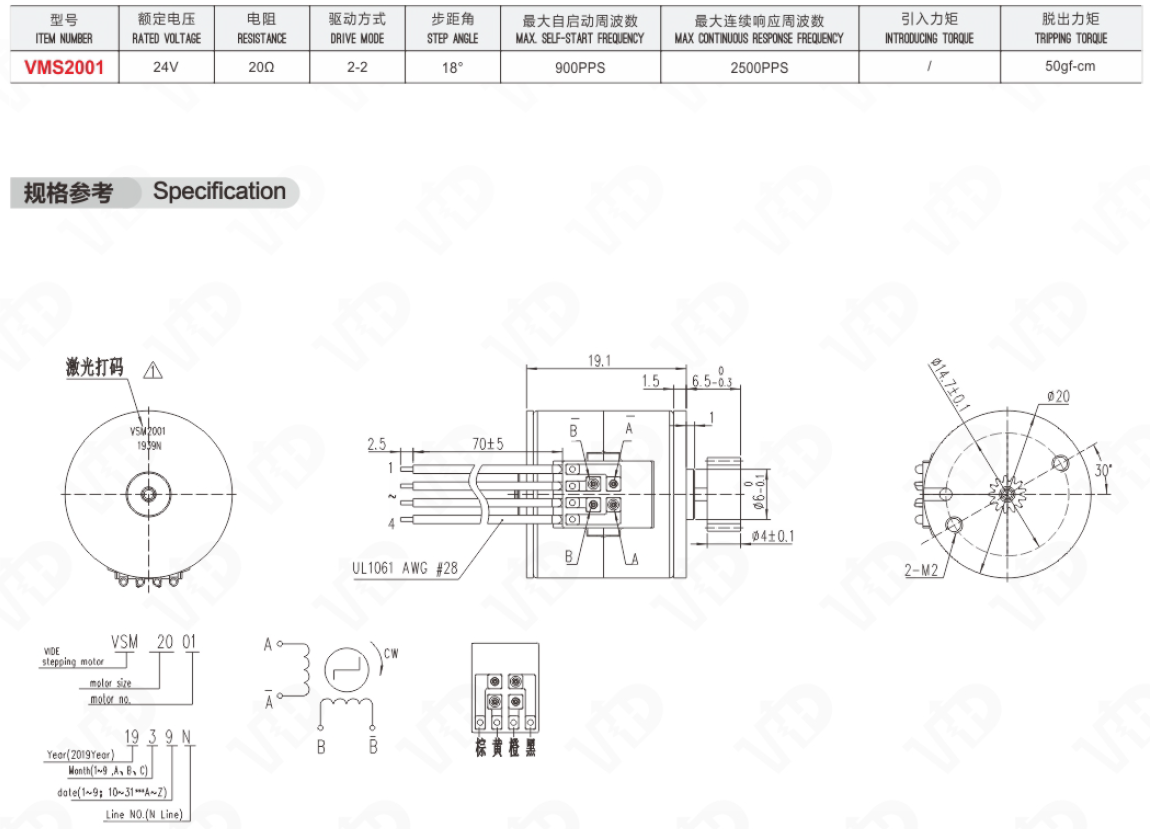

Compact Precision Stepper Motor VSM20
The VSM20 is a high-precision stepper motor engineered for demanding automation and robotics applications. Featuring a robust metallic housing and durable brass gearing, it ensures consistent, reliable performance in compact spaces. It supports precise positioning through a 18° step angle and is fully compliant with modern lead-free manufacturing standards.
Technical Specifications
- Rated Voltage
- 24 V
- Resistance
- 20 Ω
- Step Angle
- 18 °
Performance Metrics
Key Performance Metrics
900 PPS
Max Self-Start Frequency
2,500 PPS
Max Continuous Response Frequency
50 gf-cm
Tripping Torque
Design and Compatibility
- Drive Mode
- 2-2
- Wiring Standard
- UL1061 AWG #28
- Compliance
- Ph-free
