Compact Hydraulic Bottle Jack
This hydraulic bottle jack is designed for lifting heavy loads in a variety of applications. Its compact design allows for easy storage and portability, while its robust construction ensures durability.
Technical Specifications
Product Overview

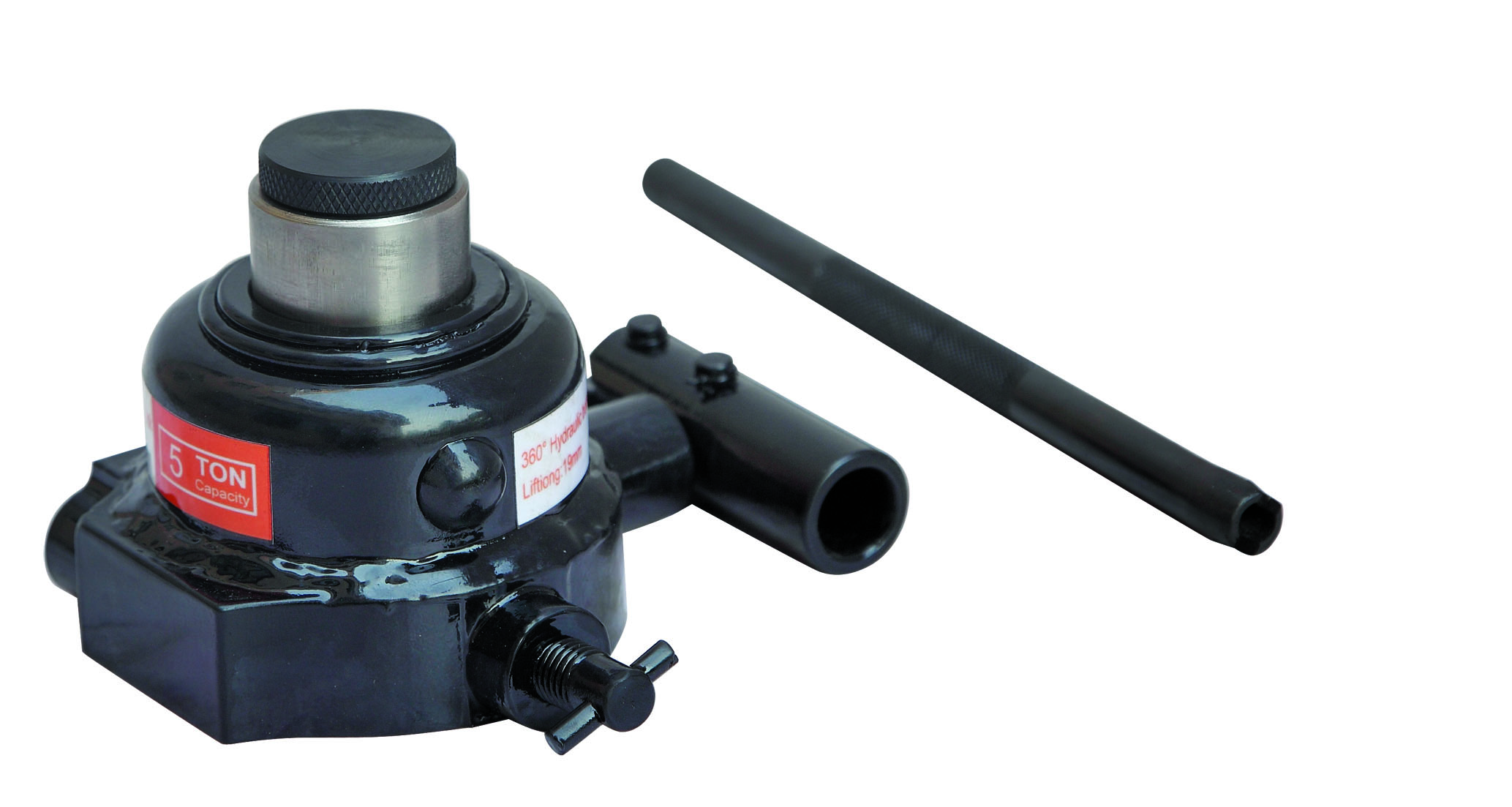

Compact Hydraulic Bottle Jack
This compact hydraulic bottle jack is engineered for heavy lifting in confined spaces where standard jacks cannot fit. Featuring a robust construction, it operates effectively in both horizontal and vertical positions, making it a versatile tool for various industrial applications. With a retracted height as low as 63.5mm, it allows for easy access into narrow crevices while maintaining high lifting capacity.
Key Metrics
Capacity Range
5 T
Minimum Capacity
20 T
Maximum Capacity
Technical Specifications
Model Specifications
| Model | Capacity (T) | Lifting (mm) | Min. Height (mm) | Weight (kg) |
|---|---|---|---|---|
| MJ0519 | 5 | 19 | 63.5 | 1.9 |
| MJ0538 | 5 | 38 | 88.9 | 2.4 |
| MJ10 | 10 | 30 | 120.7 | 5.5 |
| MJ20 | 20 | 30 | 130.2 | 5.5 |
- Operating Positions
- HorizontalVertical
Features
Key Features
- Compact design for confined space access
- 360° hydraulic lifting system
- Handle aligns with base for easier operation
- Integrated release valve for controlled lowering
