Compact Combine Harvester
This compact combine harvester is designed for efficient harvesting of various crops. It features a robust cutting mechanism, a threshing unit for separating grains, and a cleaning system to remove impurities.
Technical Specifications
Overview
Compact Performance for Small Fields

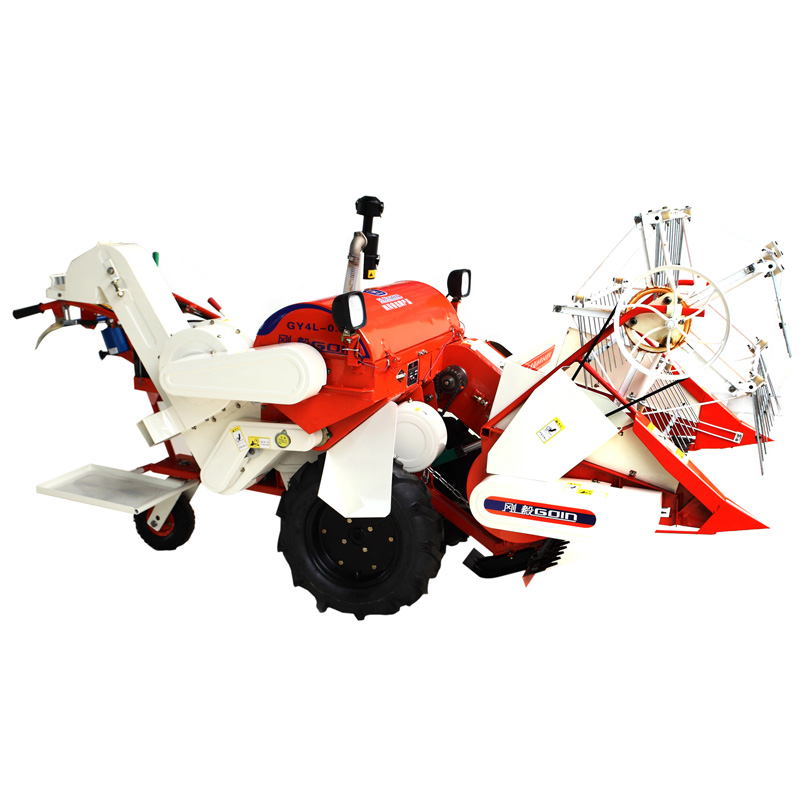

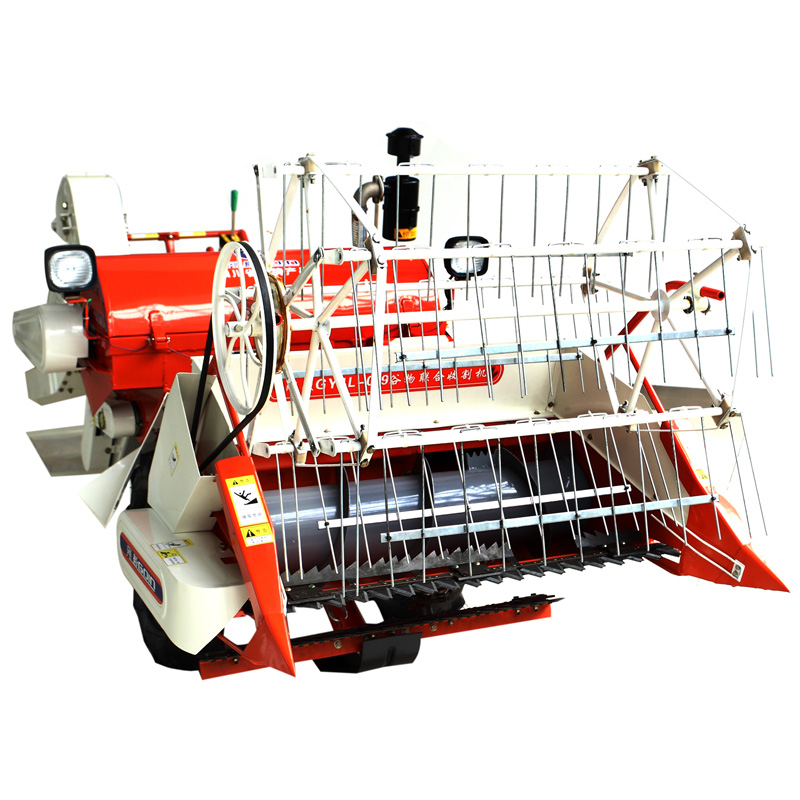

The GY4L-0.9 combine harvester is engineered specifically for the natural conditions of rice-planting fields, offering a compact and lightweight solution for efficient harvesting. Designed with a focus on maneuverability and reliable performance, this machine incorporates advanced threshing and cleaning systems to ensure high-quality grain output. It is an ideal choice for small to medium-sized agricultural operations requiring a robust, easy-to-maintain, and versatile harvesting tool.
Performance Metrics
Harvesting Efficiency
400 m2/h
Productivity
1,000 mm
Cutting Width
20 kg/hm2
Fuel Consumption
Technical Specifications
Engine Specifications
| Metric | Value |
|---|---|
| Engine Type | 186F/188F cooling diesel engine |
| Rated Output | 6.3/7.5 kW |
| Rated Turning Speed | 3600 r/min |
Dimensions & Weight
- Net Weight: 355 kg
- Dimensions (L x W x H): 2410 x 1250 x 1180 mm
- Min. Ground Clearance: 290 mm
- Structure Type
- Whole-Feed
Operational Features
- Transmission & Control
- Forward 3 GearsReverse 1 GearElectric StartingCirculating Cutting Blades
- Operating Speed
- 9 km/h
