Commercial Hot Water Heat Pump System
This commercial hot water heat pump provides an efficient solution for large-scale hot water supply in commercial projects. It offers high safety, stability, and energy-saving operation, ensuring a continuous and comfortable hot water supply.
Technical Specifications
Overview
High-Efficiency Commercial Hot Water Solution
This commercial hot water heat pump system provides a high-safety, energy-saving solution for large-scale projects requiring 24-hour comfortable hot water. It is ideal for schools, hotels, hospitals, and supermarkets, offering stable performance and significant environmental benefits. The system integrates advanced heat pump technology to deliver a reliable and convenient water supply for large buildings.
Performance Metrics
Heating Performance
36 kW
Rated Heating Capacity
4 W/W
COP
-30 °C
Min Operating Temp
Technical Specifications
- Model
- YINI-100S-RS
- Heating Mode

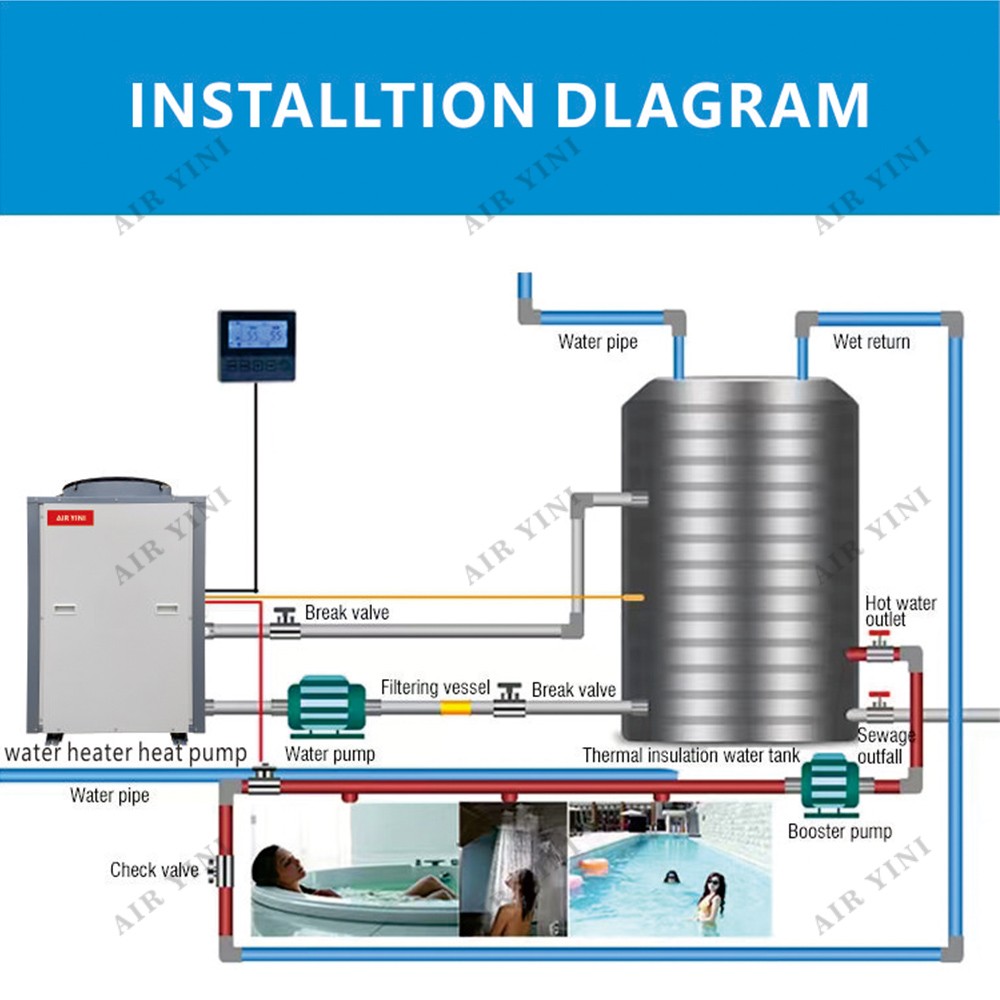

- Circulating + Direct heat
- Ambient Temperature Range
- -15°C to +43°C
Electrical Data
- Power Supply
- 380V 3N~50Hz
- Max Running Current
- 19.5 A
- Ingress Protection
- IPX4
Advanced Features
System Upgrades

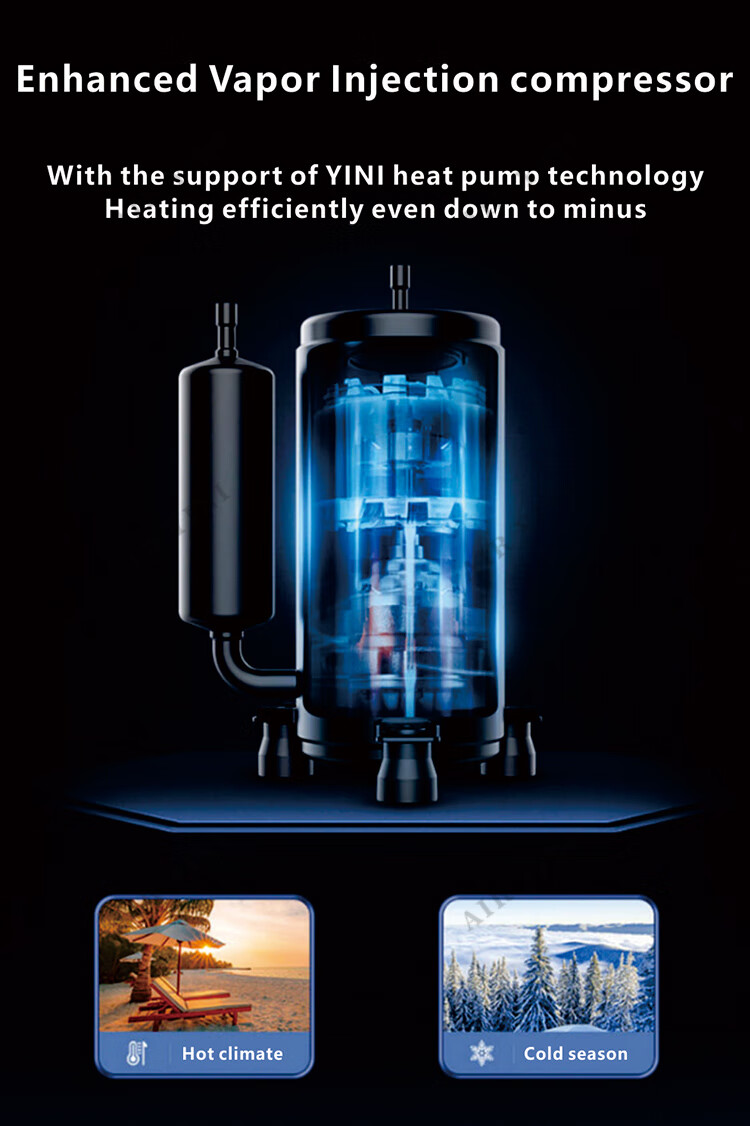

- Low-temperature Enhanced Vapor Injection (EVI) technology

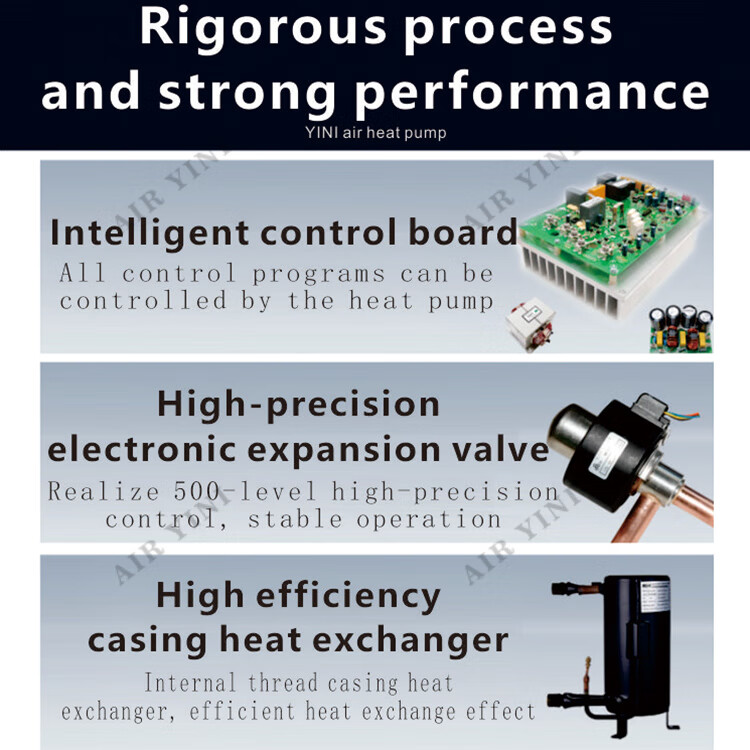

- High-precision electronic expansion valve (500-level control)
- High-efficiency internal thread casing heat exchanger

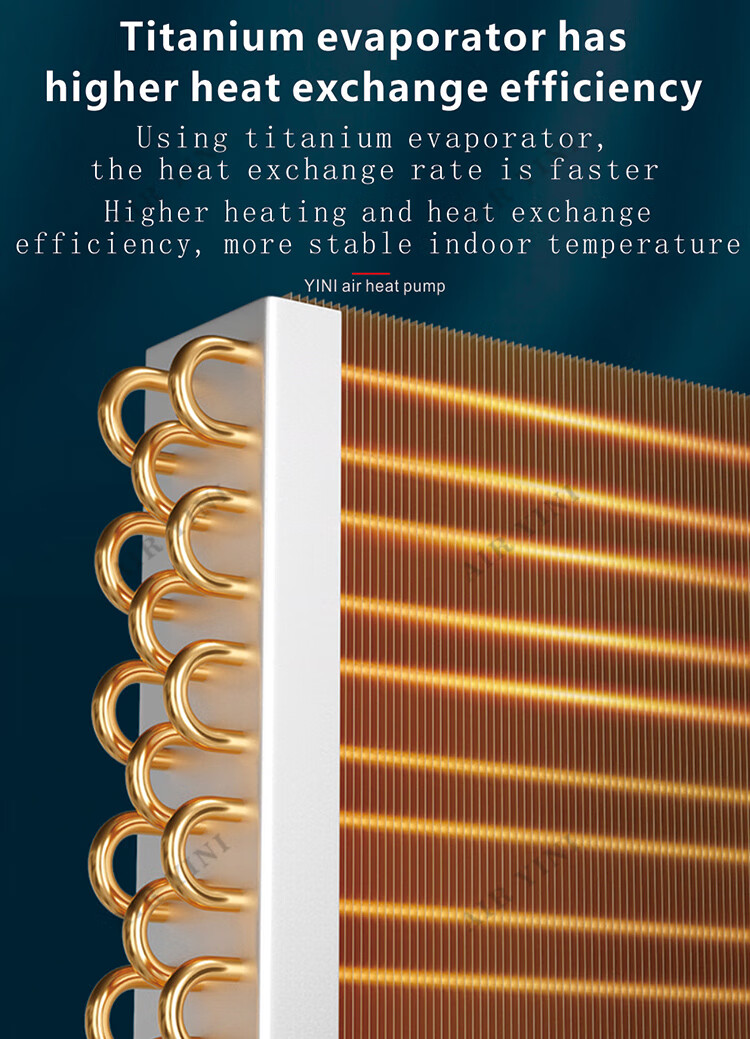

- Titanium evaporator for faster heat exchange
- WIFI interconnection for remote intelligent control
- Hidden fluorine valve design for transport safety
- Refrigerant
- R410 (Environmentally Friendly)
Control & Management

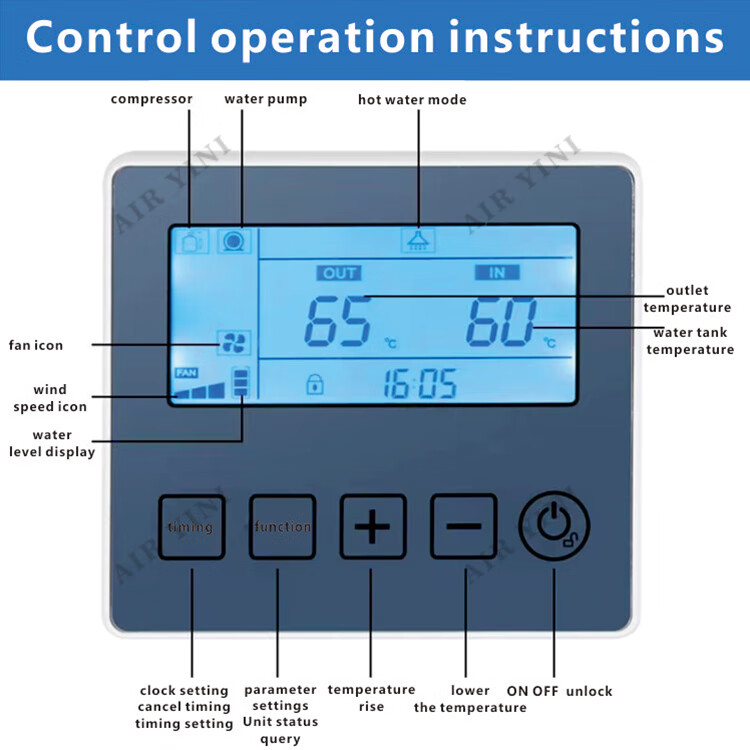

Control Interface
- Digital display for outlet and tank temperatures
- Multi-level water level control (High/Medium/Low)
- Timing and function settings
- Unit status query and parameter adjustment
- Mobile phone and computer intelligent interconnection
Compliance & Support
Service & Warranty
- 2 years warranty
- Free accessories included
- Free remote installation guidance
- Certifications
- CECBRoHSSGSErPGSSAA
