Commercial Heat Pump Water Heater
This air source heat pump water heater is designed for commercial applications. It uses R410A refrigerant and delivers hot water up to 60°C with a high Coefficient of Performance (COP).
Technical Specifications
Overview
High-Efficiency Commercial Hot Water Solution
This air-source heat pump is designed for large-scale commercial applications such as hotels, hospitals, and industrial facilities. It utilizes advanced scroll compressor technology and R410A refrigerant to provide a sustainable and cost-effective way to generate hot water up to 60°C. With intelligent controls including MODBUS communication and automatic defrosting, it ensures reliable performance even in low ambient temperatures down to -25°C.
Performance Highlights
Key Performance Metrics
60 °C
Max Water Temp
4.42
Max COP
200 kW
Max Heating Capacity
4,000 L/h
Max Water Output

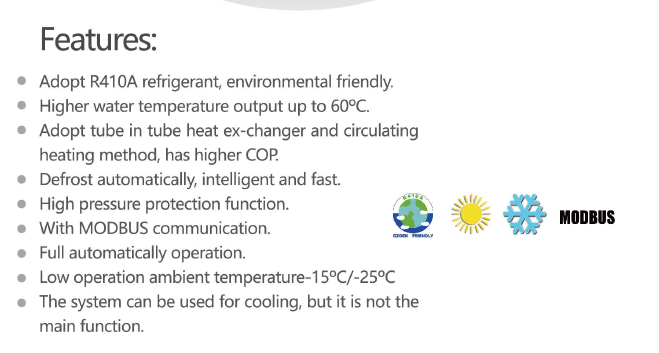

Technical Features
Core System Features
- Environmentally friendly R410A refrigerant
- Tube-in-tube heat exchanger for higher efficiency
- Intelligent automatic defrosting system
- High-pressure protection safety function
- MODBUS communication for BMS integration
- Fully automatic operation
- Vertical air flow direction
- Electronic expansion valve control
Operating Conditions
- Ambient Operating Range
- -15°C to 43°C (Extended range models down to -30°C)
Model Specifications
Model Performance Comparison
| Model No. | Heating Cap (kW) | COP | Rated Output (L/h) | Net Weight (kg) |
|---|---|---|---|---|
| RS-019TA1 | 18 | 4.29 | 380 | 160 |
| RS-038TA1 | 36 | 4.34 | 770 | 259 |
| RS-050TA1 | 50 | 4.36 | 1,050 | 450 |
| RS-100TA1 | 100 | 4.42 | 2,100 | 800 |
| RS-200TA1 | 200 | 4.28 | 4,000 | 1,000 |
Hardware Components
Compressor Type
Scroll Compressor
- Power Supply
- 380V / 3 Phase / 50Hz
