Combustible Gas Leak Detector

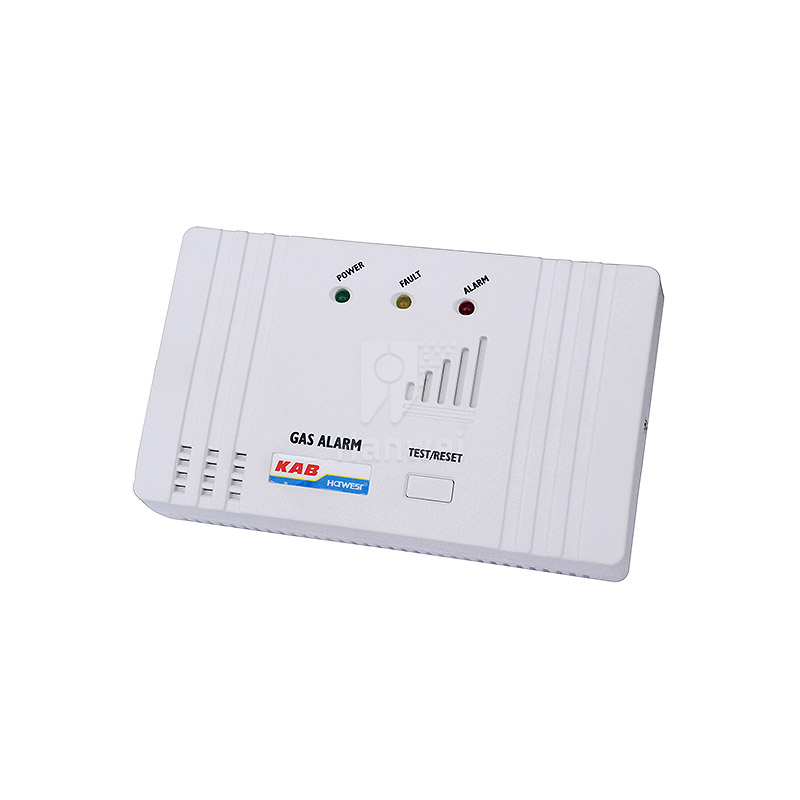

This combustible gas detector is designed to detect the presence of combustible gases, specifically methane (CH4). It operates on AC220V power and provides visual indicators for power, fault, and alarm status.
Technical Specifications
Product Overview
Reliable Gas Safety Solution
This wall-mounted combustible gas alarm is engineered to detect dangerous concentrations of gases such as natural gas or LPG. Designed for residential, hotel, and commercial building safety, it provides an essential early warning system to protect lives and property. The unit is capable of integrating with gas valves or exhaust fans for automated emergency response.
Technical Specifications
- Detectable Gases
- Natural GasLPG
- Working Voltage
- AC220V±15% / AC110V±15%, 50Hz~60Hz
- Alarming Level
- 10 %LEL
- Sensor Lifespan
- >3 years
Performance Metrics
Alarm Sound Intensity
85 dB
Alarm Sound
Operating Environment
| Parameter | Range |
|---|---|
| Temperature | -10℃ to 50℃ |
| Humidity | <95% RH |
Features & Compliance
Certifications
EN50194TUV Approved
Optional Features
- Gas shut off valve control
- Relay output
