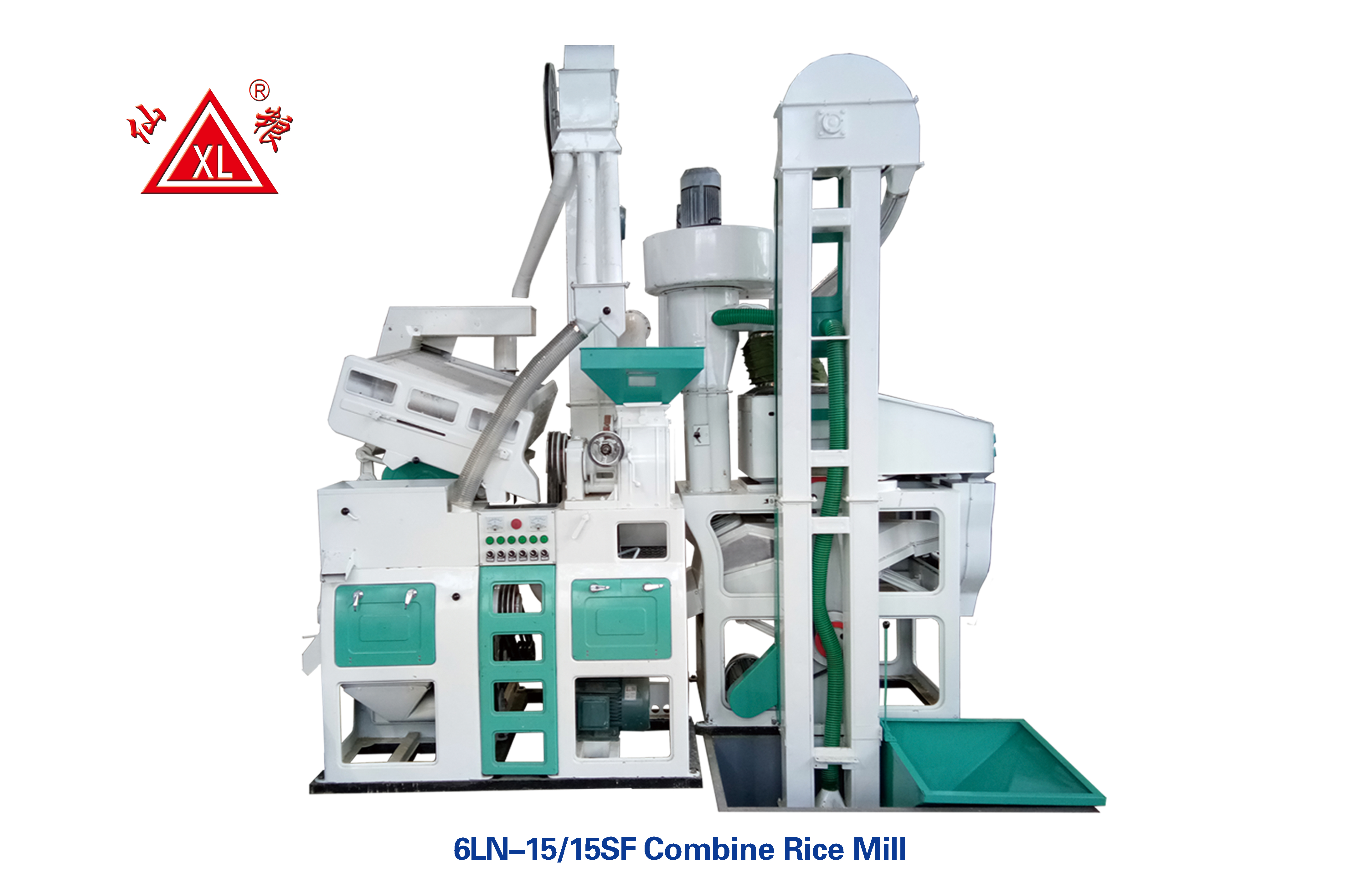

Combined Rice Milling Machine
This combined rice mill is a comprehensive machine designed for efficient rice production. It integrates cleaning, de-stoning, husking, whitening, and polishing functions into a single unit.
Technical Specifications
Product Overview
Combined Rice Milling Solution
This comprehensive rice processing machine integrates multiple essential functions into a single, compact unit, including cleaning, de-stoning, husking, separating, whitening, and polishing. Designed for small to medium-scale operations, it features a unique 'Return Husking' design that improves milling yield and minimizes broken rice. The system is engineered for automatic operation from paddy loading to finished white rice, ensuring consistent quality and efficient production.
Technical Specifications
Performance Metrics
1,000 KG/H
Output Capacity
31.2 KW
Power Requirement
70 %
Milled Rice Rate
Mechanical Specifications
| Parameter | Value |
|---|---|
| Main Spindle Speed | 1350 R/min |
| Weight | 1200 KG |
| Dimensions (L*W*H) | 3500x2800x3300 mm |
Key Features
Operational Benefits
- Automatic operation from paddy loading to finished white rice
- Low rice temperature during processing
- No bran powder residue
- Translucent finished rice quality
- Compact design for minimized space requirements
- Easy installation and operation
- Integrated Components

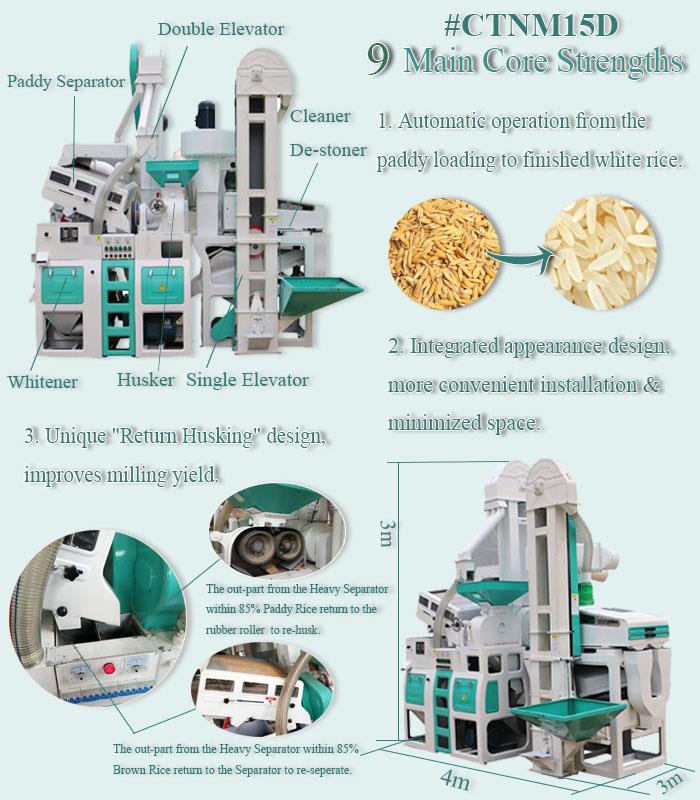

- Cleaning SieveDestonerHullerPaddy SeparatorRice WhitenerElevatorsBroken Rice GraderControl Panel
