Technical Specifications
Overview
New Generation Mini Combine Harvester
The GY4L-0.9 series is a compact, self-propelling combine harvester designed for efficiency in narrow fields and terraced landscapes. This versatile machine integrates harvesting, threshing, and cleaning functions into a single unit, making it ideal for wheat, rice, and oat crops. Built with a durable crawler track system and a high-speed screw-type discharge method, it ensures reliable performance even in wet conditions or rainy seasons.
Performance Metrics
Key Performance Indicators
0.1 ha/hr
Max Efficiency
2.22 m/s
Max Speed
2 %
Grain Loss
Technical Specifications
Engine & Power
- Engine Type: Air-cooled single cylinder 4-stroke diesel
- Model: 188FE
- Displacement: 0.498 L
- Output: 8.2 kW (11 HP)
- Fuel Tank Capacity: 5.5 L
Dimensions & Weight
| Parameter | Value |
|---|---|
| Overall Length | 2810 mm |
| Overall Width | 1430 mm |
| Overall Height | 1310 mm |
| Machine Weight | 500 kg |
Harvesting System

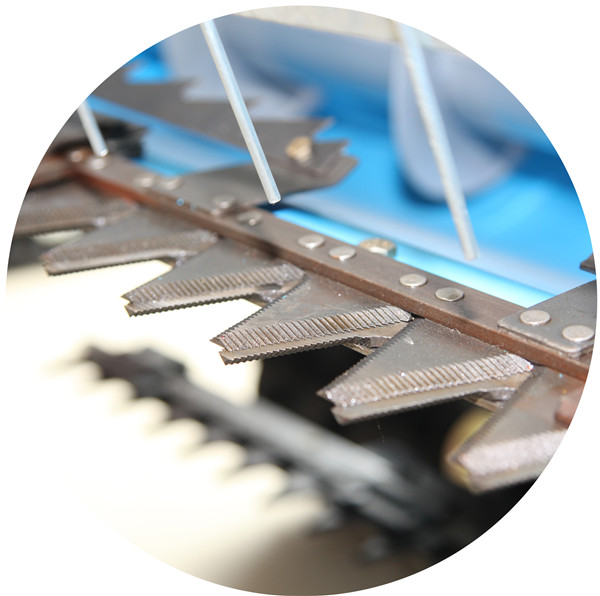

Cutting System
- Cutter Bar Width: 1000 mm
- Pickup Reel Dimensions: 565mm x 904.5mm
- Height Adjustment: Hydraulics

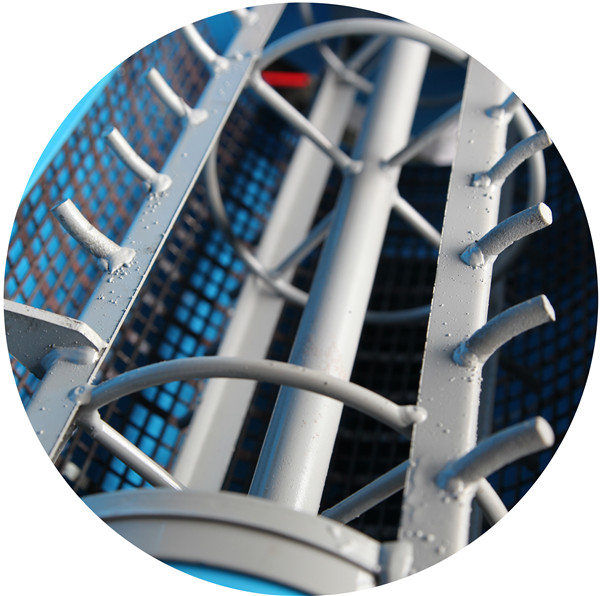

Threshing System
1,257 rpm
Threshing Revolutions
0.728 m2
Concave Area
Mobility & Drive
Terrain Compatibility
Narrow FieldsTerracingWet CropsSoft Ground
- Drive & Transmission
- Crawler Track3-Range Transmission (3F/1R)Clutch and Brake SteeringFront-Wheel-Drive
