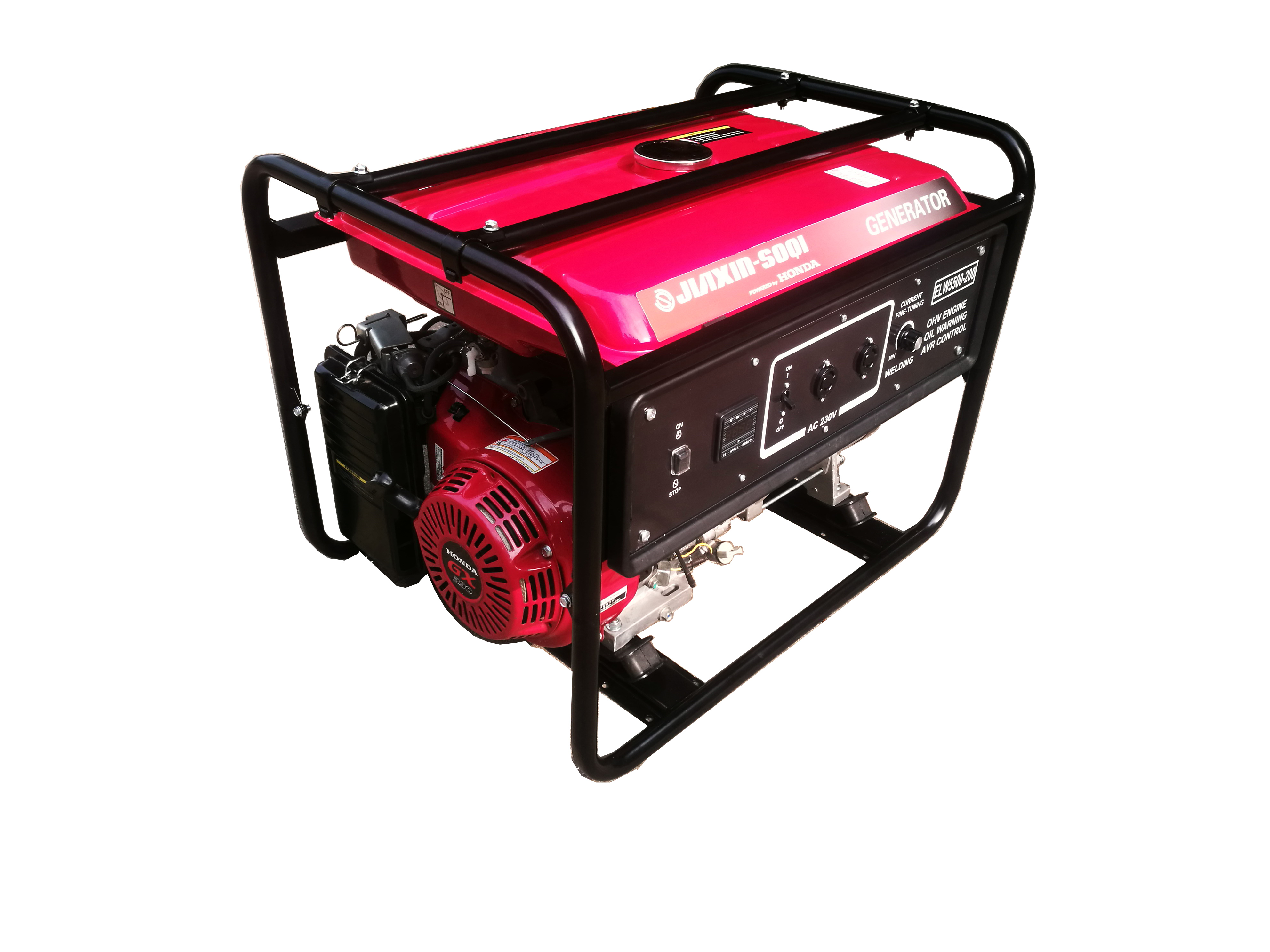

Combination Generator Welder with 230V AC Output
This combination generator welder provides both AC 230V power and welding capabilities. It features current fine-tuning, an OHV engine, oil warning, and AVR control, making it suitable for a range of applications.
Technical Specifications
Overview
Versatile Power and Welding Solution
This combination unit functions as both a reliable generator and a high-performance welder, designed for maximum efficiency and durability. Powered by a robust 4-stroke OHV engine, it delivers consistent 230V AC output alongside a flexible welding current range of 80-200A. Its compact, lightweight design makes it an ideal choice for job sites requiring portable power and welding capabilities in a single, efficient package.
Engine & Performance
- Engine Type
- 4-stroke, forced air-cooled, OHV
- Displacement
- 389 ml
- Starting System
- RecoilElectric
- Fuel Tank Capacity
- 25 L
- Continuous Running Time
- 8 Hours
Electrical Output
Power Output Metrics
5.5 KVA
Rated Output
6 KVA
Max Output
230 V
Rated Voltage
50 Hz
Frequency
- Phase
- Single Phase
Welding Capabilities
- Welding Current Range
- 80-200A
- Welding Voltage
- 27-78V
- Compatible Electrode Size
- 2.0-4.0mm
Physical & Features
Standard Features
Fuel GaugeCircuit Breaker3-in-1 Digital DisplayWelding Current RegulatorOil Warning
Weight Specifications
| Model | Gross Weight |
|---|---|
| ELW5500 | 85 kg |
| ELW5500E | 87 kg |
- Dimensions (L x W x H)
- 730 x 530 x 545 mm
