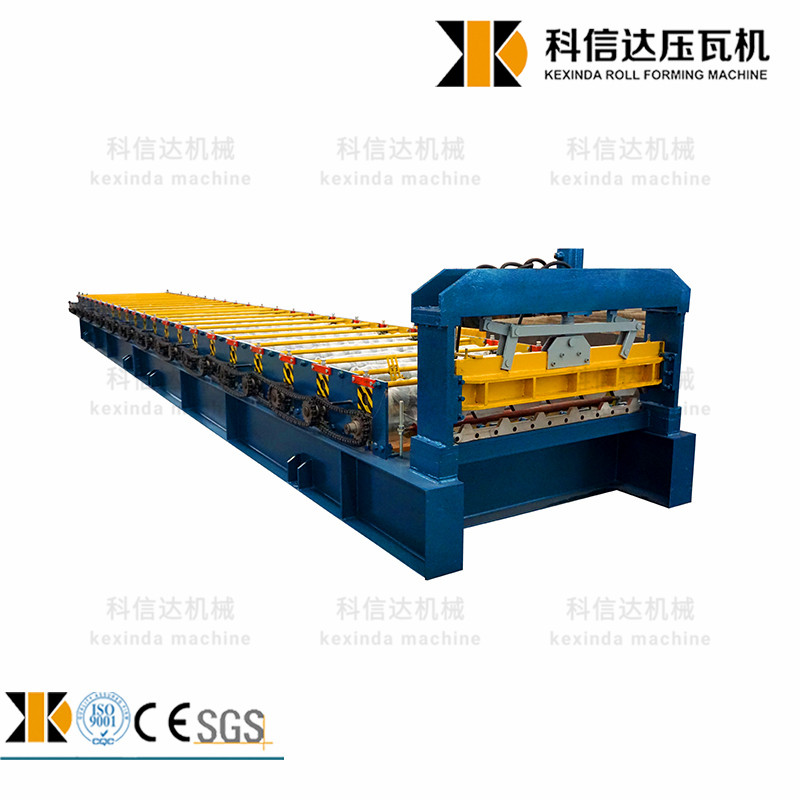

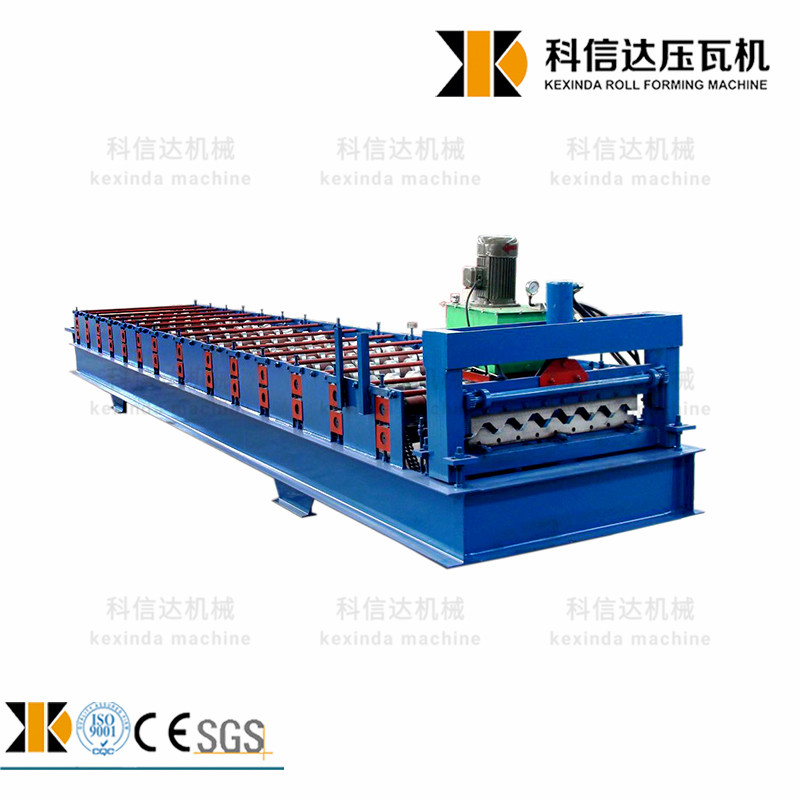

Color Metal Panel Roll Forming Machine

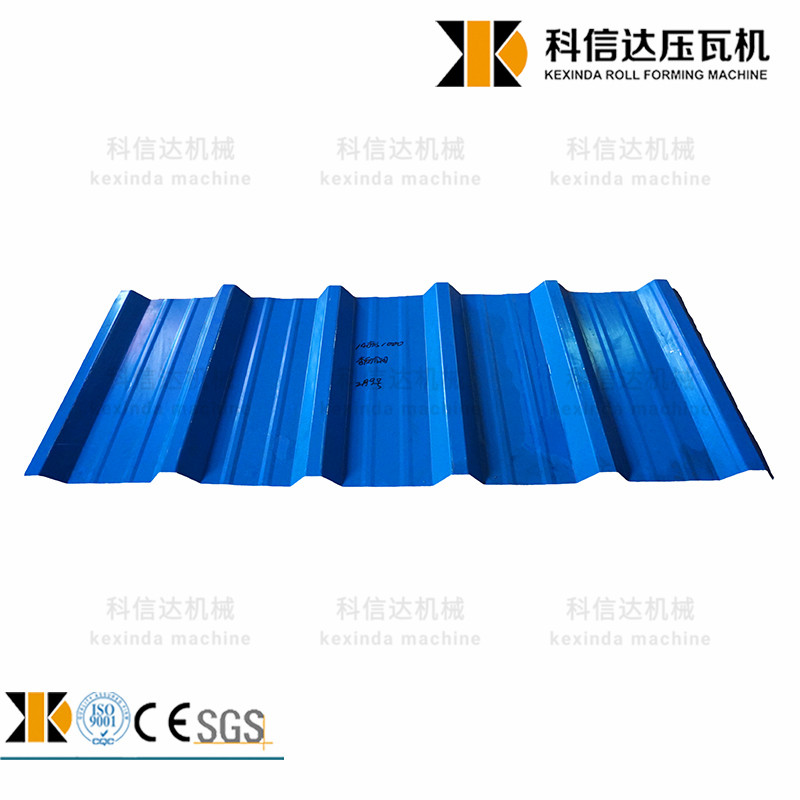

This color metal panel roll forming machine produces panels with strong, beautiful appearance. It is extensively used in roof construction or outdoor decoration.
Technical Specifications
Product Overview
High-Efficiency Color Metal Panel Production
This roll forming machine is engineered to produce high-quality, durable metal panels extensively used in roof construction and outdoor decoration. Adopting advanced roll forming methods, it ensures a beautiful appearance and strong structural integrity for every panel produced. The system is designed for professional B2B environments, offering a reliable solution for high-volume manufacturing of architectural components.
Key Features
- Advanced and innovative roll forming technology
- Convenient roller change system
- PLC control with integrated touch screen interface
- Robust construction for consistent high-volume performance
- Precision engineering for accurate forming profiles
Performance Metrics
Operational Performance
15 m/min
Max Forming Speed
12 T
Machine Net Weight
18 qty
Roller Stands
Technical Specifications
Technical Parameters
| Parameter | Specification |
|---|---|
| Steel Thickness Capacity | 0.4 - 0.8 mm |
| Roller Material | 45# steel, coated with chrome |
| Main Motor Power | 5.5 Kw |
| Hydraulic Cutting Power | 2.2 Kw |
| Hydraulic Pressure | 10 - 12 Mpa |
| Power Supply | 380V, 50HZ, 3 Phase |
| Forming Tolerance | ± 1.5 mm |
| Cutting Blade Material | Cr12 |
Process & Workflow
Production Workflow
- Uncoiling
- Feeding
- Leveling
- Punching
- Roll Forming
- Cutting
- Products Collecting
Applications
- Common Applications
- Roof ConstructionOutdoor DecorationWall CladdingDrywall Ceiling ProfilesArchitectural Metal Components
