Technical Specifications
Product Overview
High-Efficiency Ultrafine Processing

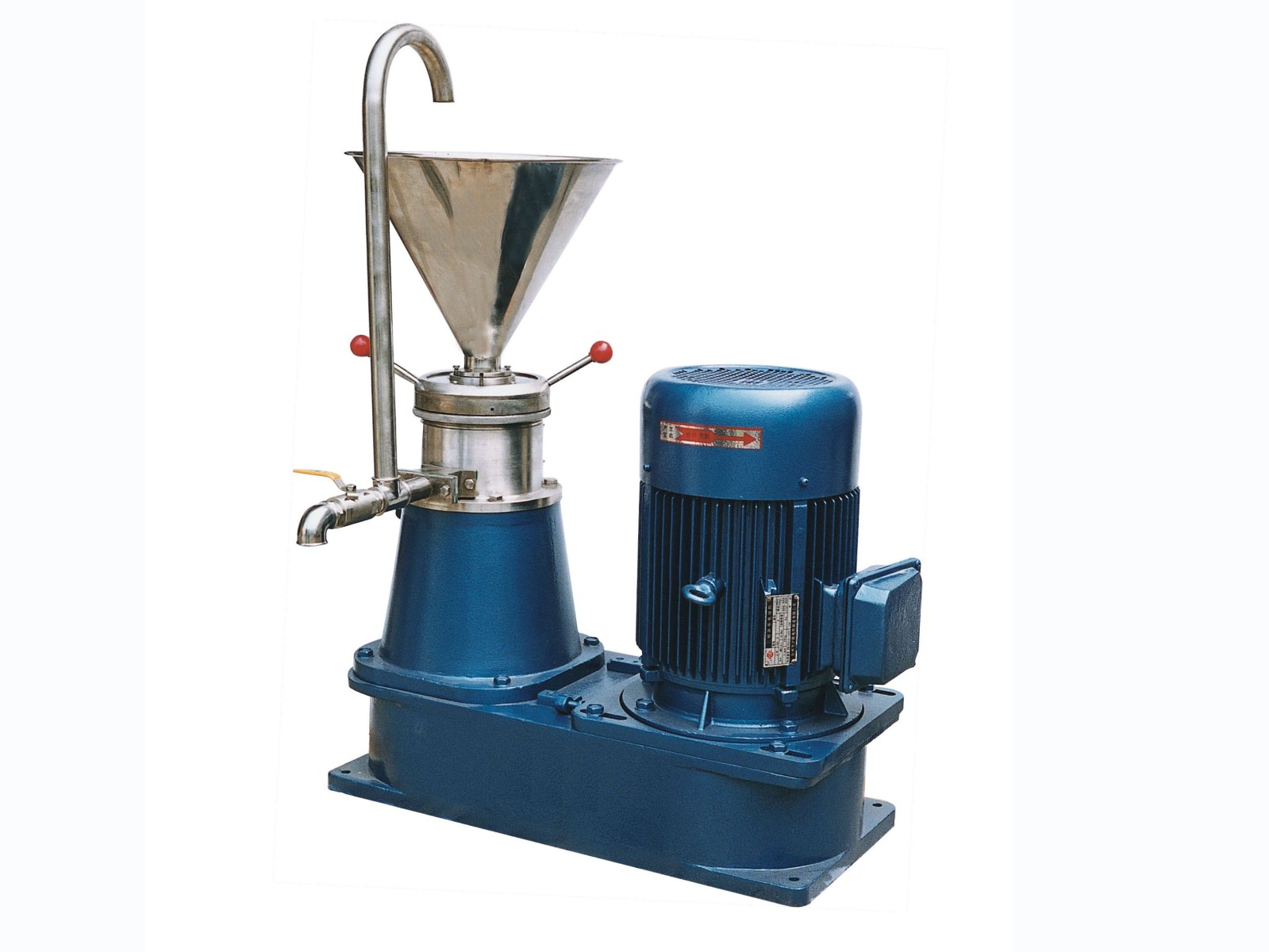

This industrial colloidal mill is a precision-engineered solution for fine fluid material processing, integrating homogenizing, grinding, dispersing, and emulsifying capabilities into one compact unit. It delivers exceptional performance for semi-liquid and milkiness materials, achieving particle sizes between 2 to 50 microns with over 90% homogeneity. Designed for versatility, it is an ideal choice for the food, chemical, pharmaceutical, and daily chemical industries, capable of handling complex tasks like peanut butter production without the need for pre-crushing.
Technical Specifications
Processing Performance
Model Specifications
| Model | Power | Output | Speed |
|---|---|---|---|
| JMV80 | 4kW | 0.2-2 t/h | 4500 r/min |
| JMV100 | 4kW | 0.25-2.5 t/h | 4500 r/min |
| JMV140 | 11kW | 1-4.5 t/h | 2900 r/min |
| JMV150 | 15kW | 1-5 t/h | 2900 r/min |
- Industry Applications
- FoodChemicalPharmaceuticalCosmeticsBuilding MaterialsBattery Manufacturing
- Voltage/Frequency
- 380V/50Hz
