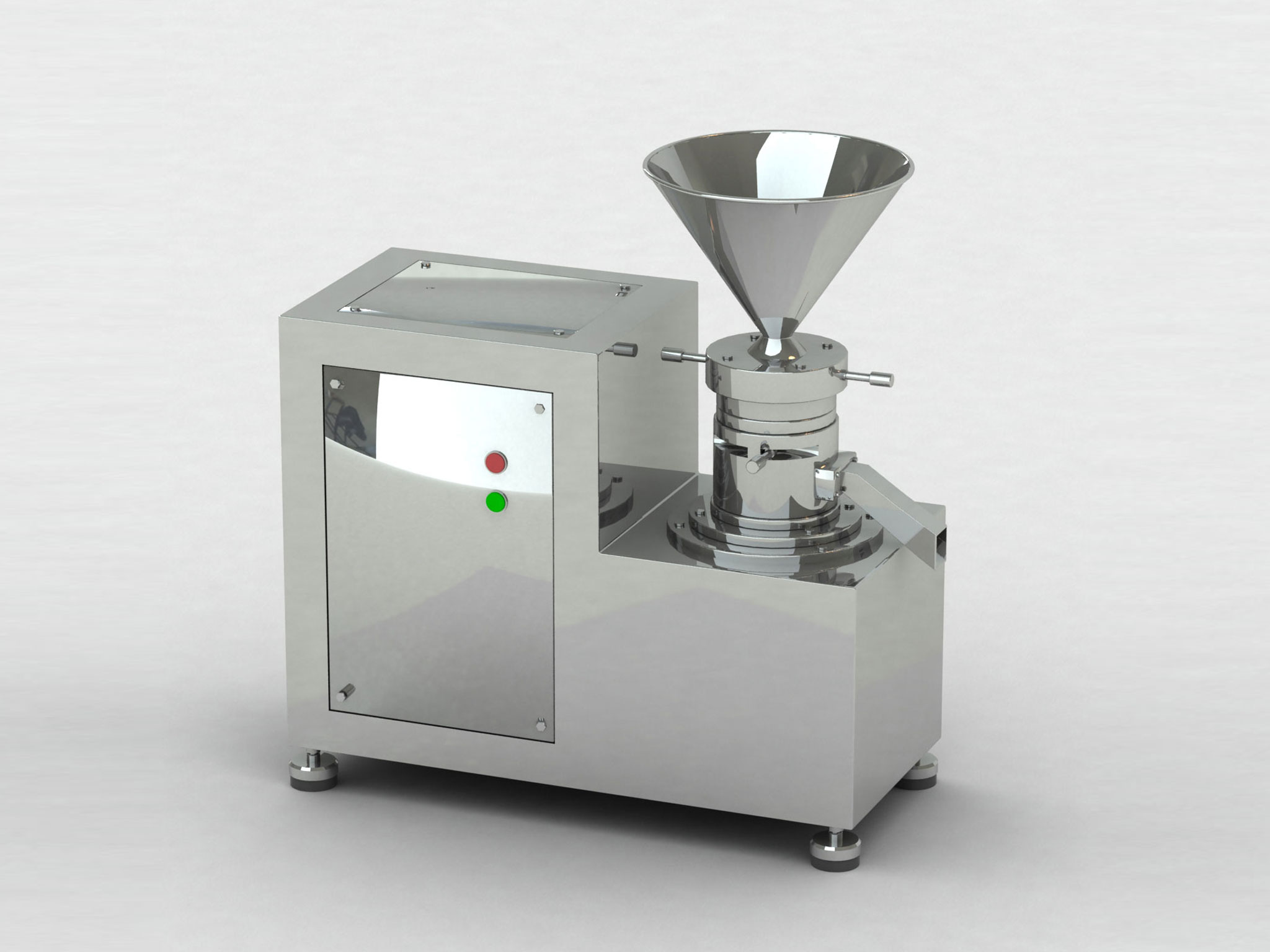

Colloid Mill for Particle Size Reduction
This colloid mill reduces the particle size of a solid suspended in a liquid, and can reduce the droplet size of a liquid suspended in another liquid. It utilizes a high-shear rotor-stator system, passing material through a narrow gap between a rotating rotor and a stationary stator.
Technical Specifications
Product Overview
High-Efficiency Colloid Mill
This colloid mill is engineered for wet material super-fine crushing, emulsifying, and mixing across pharmaceutical, food, chemical, and industrial sectors. Utilizing a high-speed rotor-stator system, it achieves particle size reduction through cutting, pulverizing, and high-frequency vibration. The machine features a two-stage pulverizing process with adjustable gap settings, ensuring consistent, high-quality output with low noise and corrosion resistance.
Key Features
Operational Benefits
Corrosion ResistantLow NoiseAdjustable FinenessSteady OperationEasy Maintenance
- Suitable Industries
- PharmaceuticalFood & BeverageChemicalDaily ChemicalConstructionIndustrial Processing
Technical Specifications
Model Comparison Table
| Model | Power (kW) | Capacity (t/h) | Weight (kg) |
|---|---|---|---|
| JM-50 | 1.5 | 0.01-0.3 | 100 |
| JM-100 | 5.5 | 0.5-2 | 275 |
| JM-150 | 11 | 0.8-5 | 525 |
| JM-200 | 18.5 | 2-7 | 650 |
| JM-250 | 37 | 4-15 | 1,300 |
| JM-300 | 55 | 6-20 | 1,600 |
| JM-350 | 75 | 8-30 | 2,200 |
| JM-450 | 110 | 10-40 | 3,000 |
Standard Performance Metrics
4,500 r/min
Spindle Speed
50 μm
Emulsification Fineness (Max)
