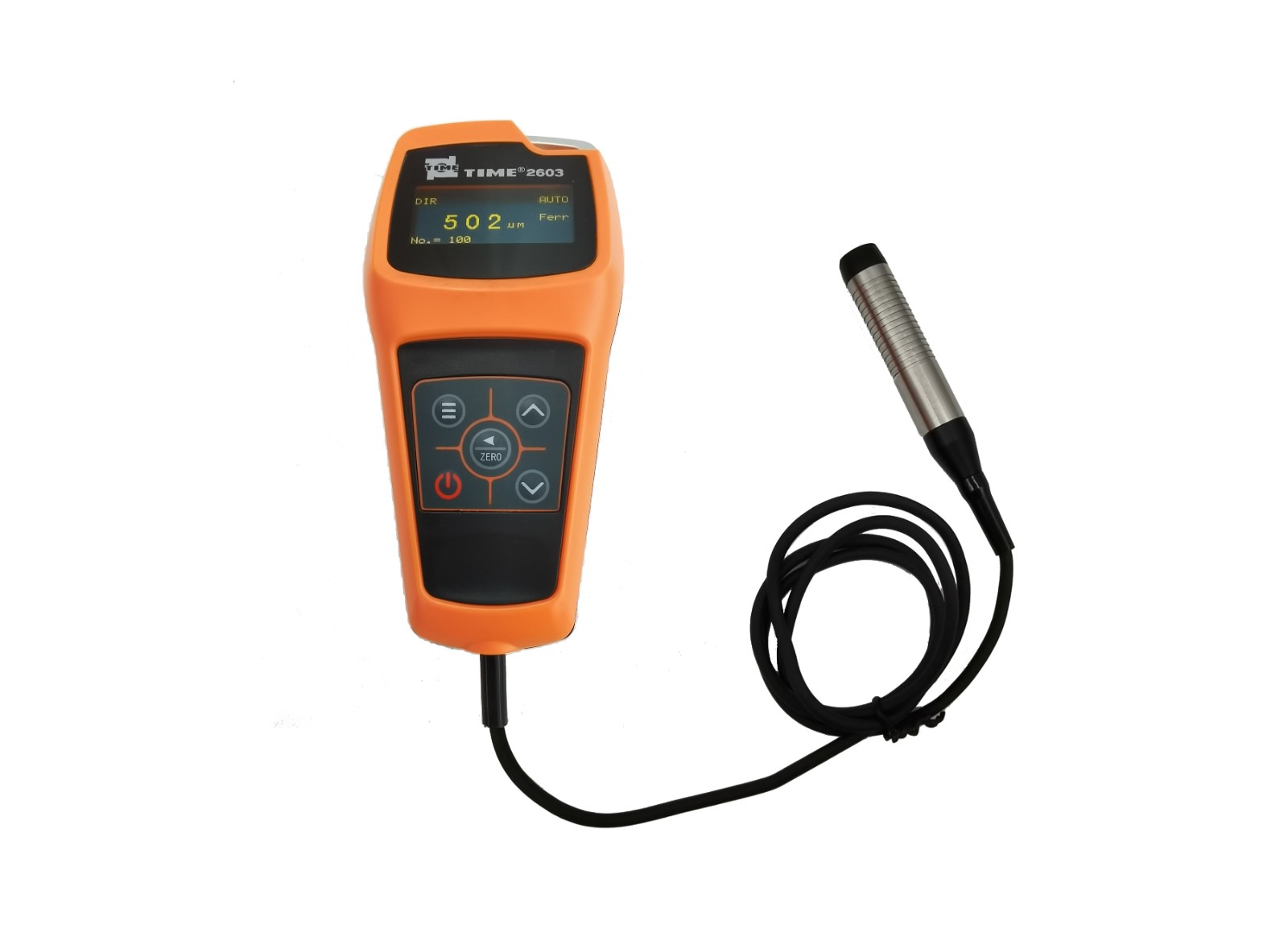

Coating Thickness Gauge Ferrous/Non-Ferrous
This coating thickness gauge combines ferrous and nonferrous measuring methods. It is pocket-sized, with high accuracy and easy operation.
Technical Specifications
Overview
Precision Coating Measurement
This professional-grade coating thickness gauge utilizes magnetic induction and eddy current principles to provide non-destructive measurements on both ferrous and non-ferrous metal substrates. Designed for durability and precision, it features automatic substrate recognition and versatile calibration options to ensure measurement accuracy in diverse industrial environments. With integrated statistical analysis and internal storage for 500 readings, this tool is ideal for quality control in manufacturing, automotive, and chemical sectors.
Measurement Performance
- Maximum Range
- 1250 μm
- Measuring Modes
- SingleContinue
- Supported Substrates
- FerrousNon-Ferrous
Technical Features
Working Modes
- DIRECT
- BATCH
System Functions
Zero CalibrationTwo-Point CalibrationAuto Substrate RecognitionStatistical AnalysisLow Battery Indicator
Statistics Metrics
- Mean
- Maximum
- Minimum
- Test Numbers
- Standard Deviation
Operational Aids
BacklightAudio BuzzerAuto Shutdown
- Memory Capacity
- 500
