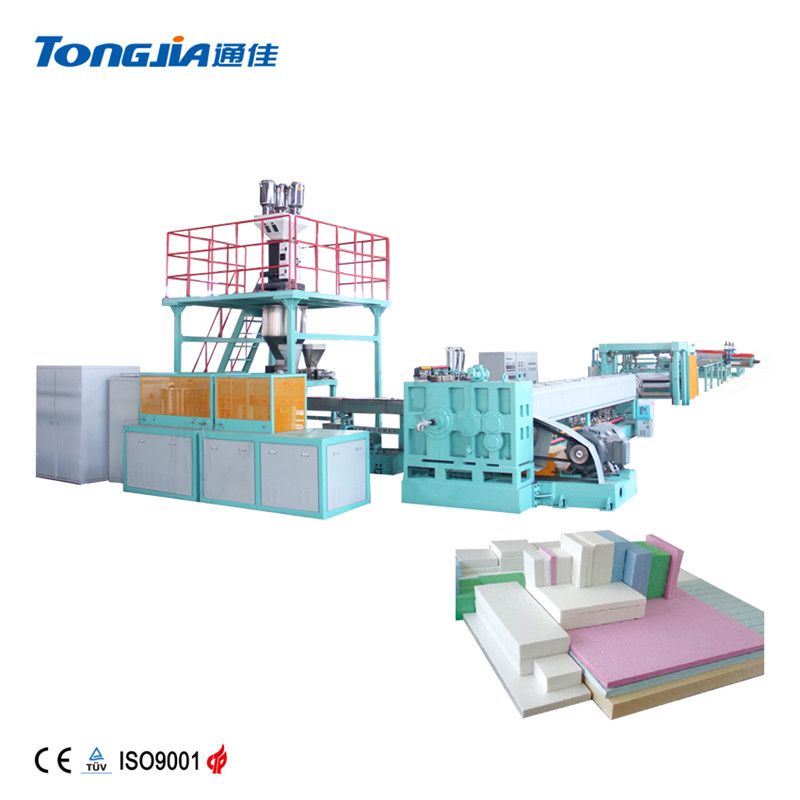

CO2 XPS Foam Board Production Line
This CO2 XPS Foam Board Production Line is designed for continuous production of extruded polystyrene (XPS) foam boards using carbon dioxide (CO2) as a blowing agent. The production line creates high-quality foam boards with thermal insulation properties, dimensional stability, and compressive strength.
Technical Specifications
Overview
Eco-Friendly XPS Foam Board Production
This advanced production line is engineered for the continuous manufacturing of high-quality extruded polystyrene (XPS) foam boards. By utilizing carbon dioxide (CO2) as a blowing agent, it offers a sustainable, fluorine-free alternative to traditional HCFC-based processes, aligning with modern environmental standards. The system features fully automated central computer control for intelligent production, ensuring consistent thermal insulation properties and structural integrity in the finished boards.
Certifications
- Compliance Standards
- CETÜVISO 9001
Technical Specifications
Model Comparison
| Model | Screw Dia (mm) | Output (kg/h) | Installed Capacity (KW) |
|---|---|---|---|
| JG-XPS75P/170 | 75/170 | 350-500 | 360 |
| JG-XPS75P/200 | 75/200 | 500-700 | 470 |
| JG-XPS85P/250 | 85/250 | 500-700 | 570 |
| JG-XPS95P/300 | 95/300 | 800-1000 | 750 |
Board Dimensions
- Thickness: 20-150 mm
- Width: 600, 900, 1220 mm
