CO2 Refrigerant Heat Pump
This heat pump uses CO2 as a refrigerant for efficient heating and cooling. It is suitable for applications such as quick freezers, cold storage, and ice rinks.
Technical Specifications
Overview
High-Efficiency CO2 Transcritical Heat Pump
This industrial-grade heat pump utilizes R744 (CO2) as a natural refrigerant, offering an environmentally friendly and sustainable solution for large-scale thermal management. Designed for versatility, it supports combined cooling and heating applications, making it ideal for everything from ice rinks to industrial quick-freezing. With a modular design and customizable capacities, it provides reliable performance across a wide range of operating temperatures.
Technical Performance
Heating Capacity
0.1 MW
Min Capacity
2.2 MW
Max Capacity
Refrigerant
R744CO2
- Hot Water Temperature Range
- 30°C to 120°C

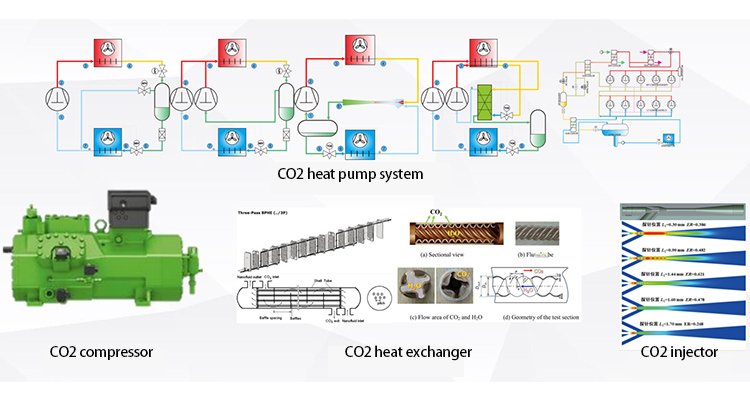

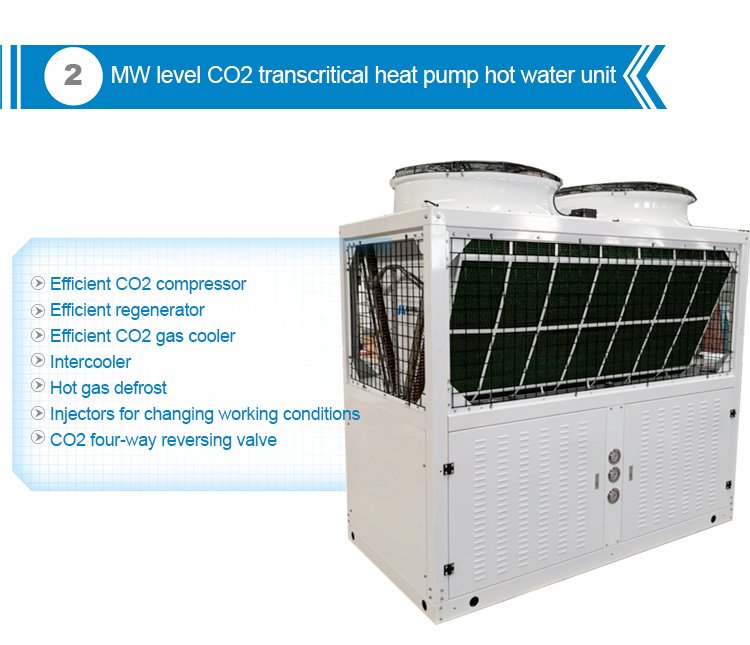

Core Components
Compressor System
- Specialized CO2 piston compressor
- Efficient regenerator
- Efficient CO2 gas cooler
- Intercooler system
- CO2 four-way reversing valve
- Efficiency Enhancements
- Ejector TechnologyTranscritical CycleHot Gas DefrostInjectors for Variable Conditions
System Configuration
- Heat Source Types
- Air SourceWater Source
- Electrical Compatibility
- Universal (Can meet any country's electricity system)
Applications
Industrial Applications

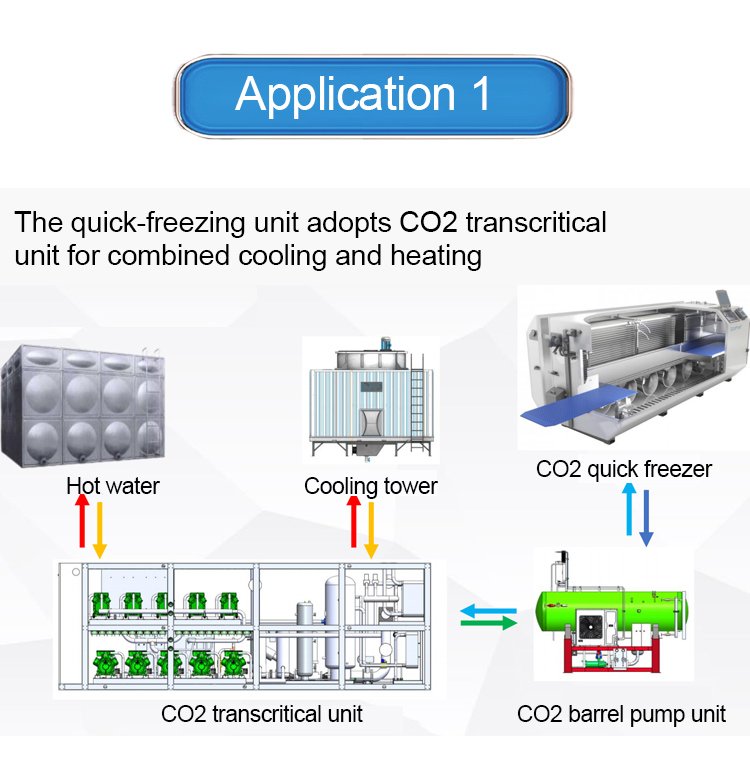

- Quick freezer units
- Cold storage facilities

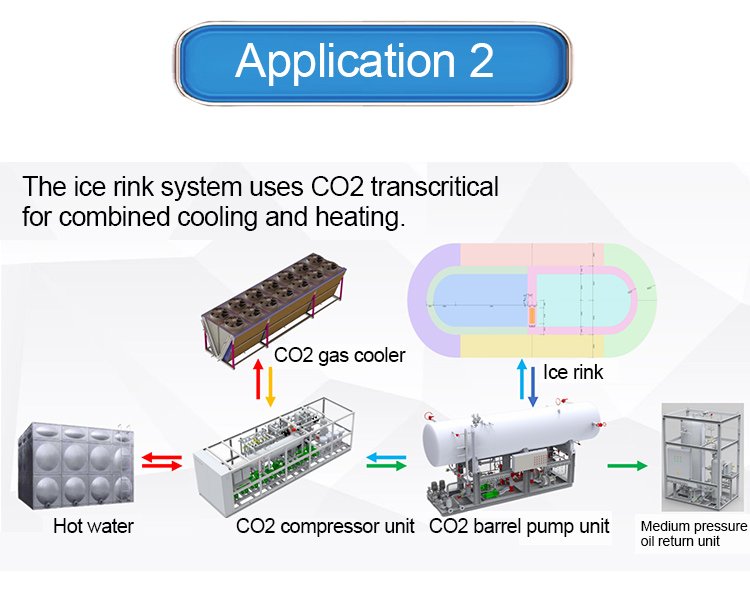

- Ice rink cooling and heating
- Air conditioning systems
- Industrial water heating
- Process heat for production
Operational Data

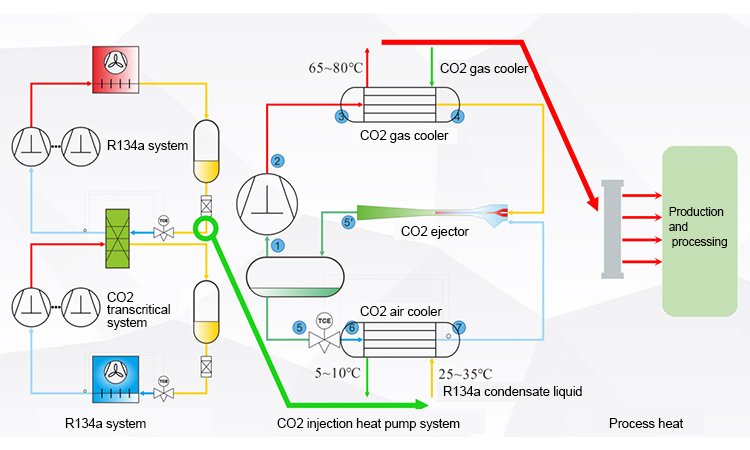

Operating Temperatures
| Component | Temperature Range |
|---|---|
| CO2 Gas Cooler | 65°C - 80°C |
| CO2 Air Cooler | 5°C - 10°C |
| R134a Condensate (Hybrid) | 25°C - 35°C |
