CNC Wire Cutting EDM Machine
This CNC EDM wire-cutting machine is designed for processing conductive materials, including super-hard and hard alloys. It excels in applications where material properties are not a limiting factor.
Technical Specifications
Product Overview
High-Precision CNC Wire Cutting EDM
This CNC Wire Cutting EDM machine is engineered for the precise machining of conductive materials using a continuous wire electrode. It features an advanced control system and a robust frame designed to handle intricate geometries with tight tolerances. Suitable for tool and die making, mold manufacturing, and aerospace components, this machine delivers excellent surface finishes through its optimized dielectric filtration system.
Technical Specifications
Performance Metrics
2,280 mm
Max Table Travel
500 mm
Max Workpiece Thickness
6,000 kg
Maximum Weight
Model Specifications
| Model | Worktable Size (mm) | Table Travel (mm) | Max Thickness (mm) |
|---|---|---|---|
| DK7725AZ | 520x336 | 320x250 | 400(330) |
| DK7732AZ | 576x366 | 400x320 | 400(330) |
| DK7740AZ | 720x460 | 500x400 | 400(330) |

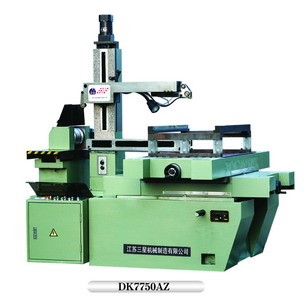

| DK7750AZ | 846x555 | 630x500 | 500(400) |
| DK7763AZ | 1100x720 | 800x630 | 500(400) |

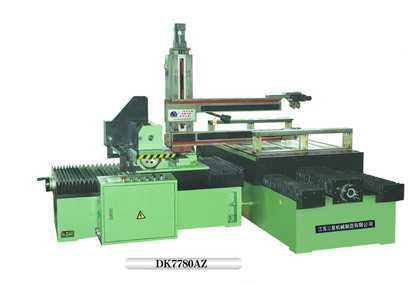

| DK7780AZ | 1430x900 | 1200x800 | 450(350) |

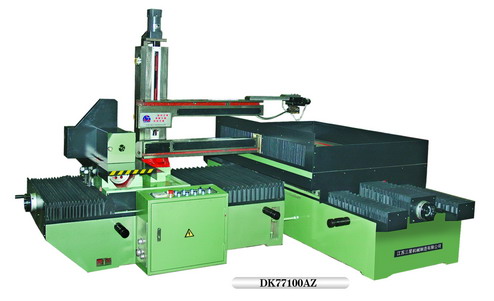

| DK77100AZ | 1430x1100 | 1200x1000 | 450(350) |
| DK77120AZ | 2280x11280 | 1200x1600 | 500 |
Features
- Core Features
- Advanced CNC ControlAutomatic Wire ThreadingDielectric Filtration SystemRobust Structural FrameHigh-Precision Cutting
