CNC Wire Cutting EDM Machine
This CNC EDM wire-cutting machine excels in processing diverse conductive materials without specific requirements. It is capable of processing super-hard alloys and quenched materials.
Technical Specifications
Overview
Precision CNC Wire Cutting EDM
The DK77 series CNC EDM wire-cutting machine is engineered for versatility, requiring no special properties for processed conductive metals. It excels in machining complex shapes, including tapered and specially-shaped parts, making it an ideal solution for mold making, punch dies, and precision components. Capable of handling super-hard alloys, stainless steel, and fragile magnet materials, this machine provides the reliability needed for demanding industrial applications.
Capabilities
Primary Applications
- Rubber and plastic molds
- Punch dies
- Tapered upper/lower parts
- Specially-shaped spares
- Intricate precision components
- Compatible Materials
- Super-hard alloysHard alloysQuenching materialsStainless steelDuctile materialsMagnet steelFragile materials
Technical Specifications
Model Specifications
| Model | Table Size (mm) | Travel (mm) | Weight (kg) |
|---|---|---|---|
| DK7725AZ | 520x336 | 320x250 | 1,100 |
| DK7732AZ | 576x366 | 400x320 | 1,300 |
| DK7740AZ | 720x460 | 500x400 | 1,700 |

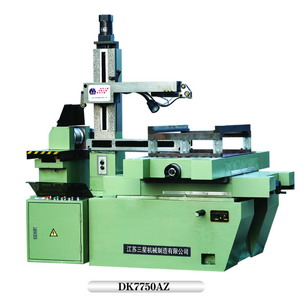

| DK7750AZ | 846x555 | 630x500 | 2,500 |
| DK7763AZ | 1100x720 | 800x630 | 4,000 |
| DK7780AZ | 1430x900 | 1200x800 | 5,000 |

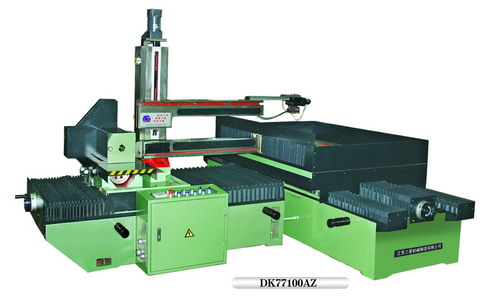

| DK77100AZ | 1430x1100 | 1200x1000 | 5,500 |
| DK77120AZ | 2280x11280 | 1200x1600 | 6,000 |
