CNC Wire Cut EDM Machine
The CNC wire cut EDM machine utilizes a traveling wire electrode to erode material, creating intricate shapes and profiles. It features advanced control systems, ensuring smooth and accurate movement of the wire, resulting in exceptional surface finish and dimensional accuracy.
Technical Specifications
Overview

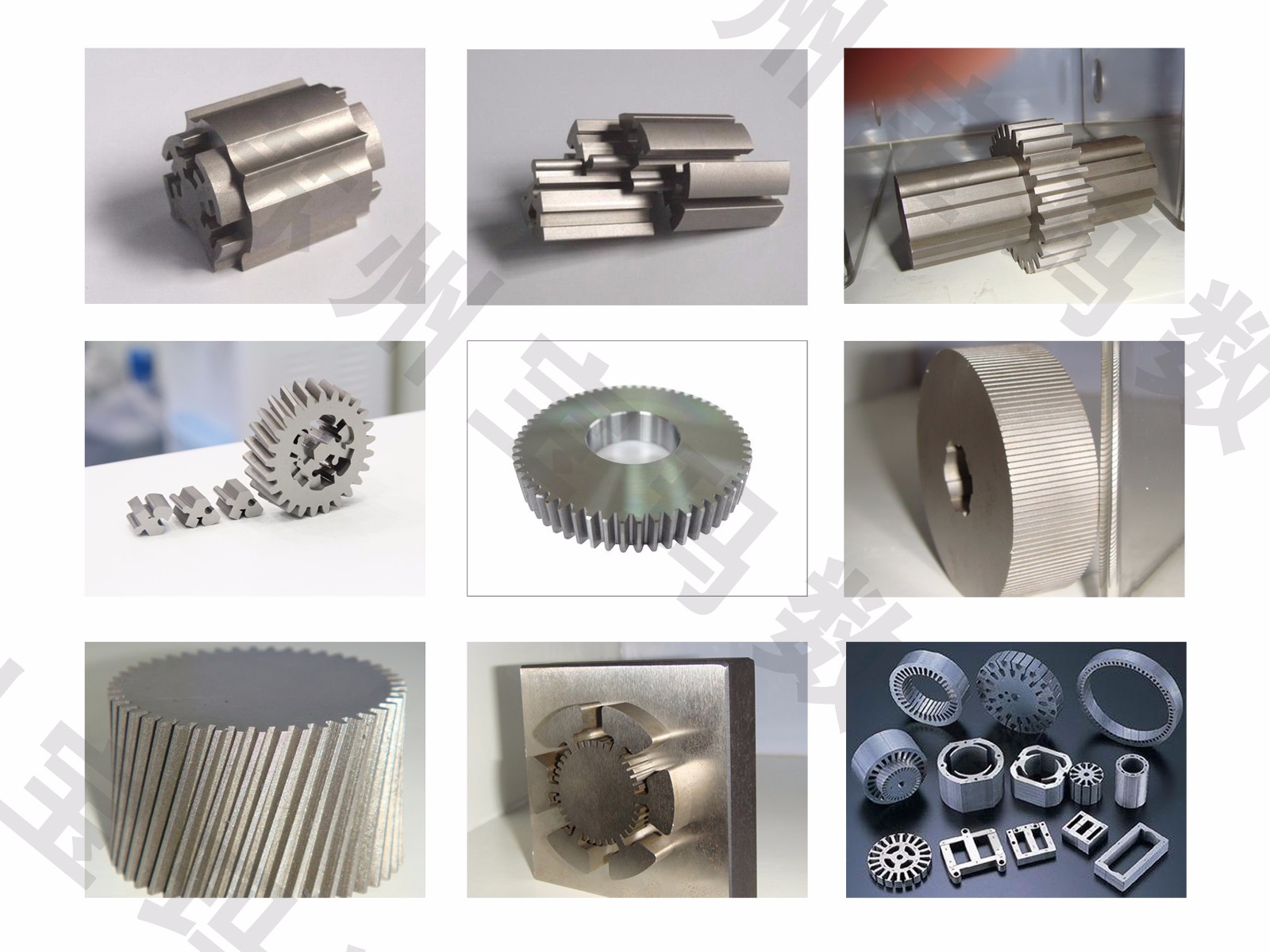

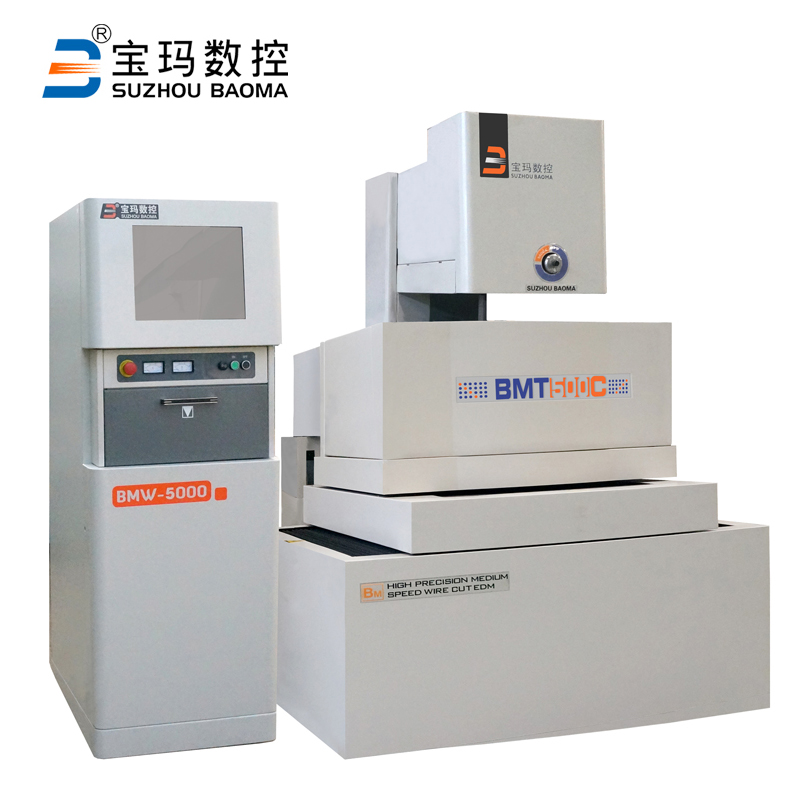

High-Precision CNC Wire Cut EDM
This CNC Wire Cut EDM machine is designed for high-speed, high-precision machining of conductive materials, reaching cutting speeds up to 250mm²/min. It features a sophisticated servo control system and double-direction wire tensioning to ensure exceptional surface finishes and dimensional accuracy. Ideal for complex tool and die making, this robust system integrates industrial computing with specialized software for direct AutoCAD compatibility.
Performance Metrics
Key Performance Metrics
250 mm²/min
Max Cutting Speed
1.2 μm
Surface Roughness (Ra)
0.012 mm
Octagon Precision
Technical Capabilities
Workpiece Capacity
| Parameter | Specification | Unit |
|---|---|---|
| Worktable Size (L x W) | 420 x 650 | mm |
| Table Travel (X x Y) | 320 x 400 | mm |
| Max. Workpiece Thickness | 300 | mm |
| Max. Table Load | 400 | kg |
| Max. Taper Angle | +/- 3° | degree |
System Features
Integrated Components
- Double Direction Servo wire tension system
- BMXP software (Windows XP based) with AutoCAD support
- Industrial computer with LCD monitor
- Linear Guide way from PMI
- Central lubricate system
- EMERSON inverter technology
- High frequency Power supply
Operational Specifications
Wire & Reservoir
| Feature | Value |
|---|---|
| Wire Diameter | 0.15 - 0.2 mm |
| Wire Traveling Speed | 5 - 11 m/min |
| Working Reservoir Capacity | 100 L |
| Working Solution | BM-06GP |
Power Requirements
- Power Supply
- 3N-380V / 50Hz
- Max Working Current
- 9 A
Compliance
- Certifications
- CE CertifiedISO Standards
Manufacturer Expertise
Manufacturing Excellence
- Over 20 years of EDM specialization
- 7-step quality checking process with 25+ QC inspectors
- 6S management system for production control
- Unique ID tracking for every machine unit
- Global installation base in over 60 countries
