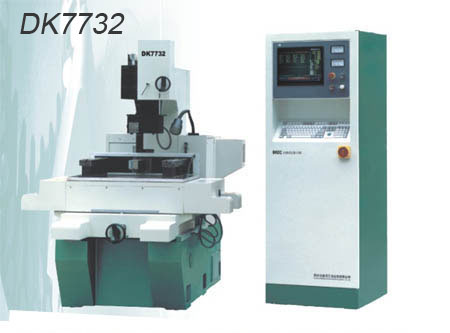

CNC Wire Cut EDM Machine

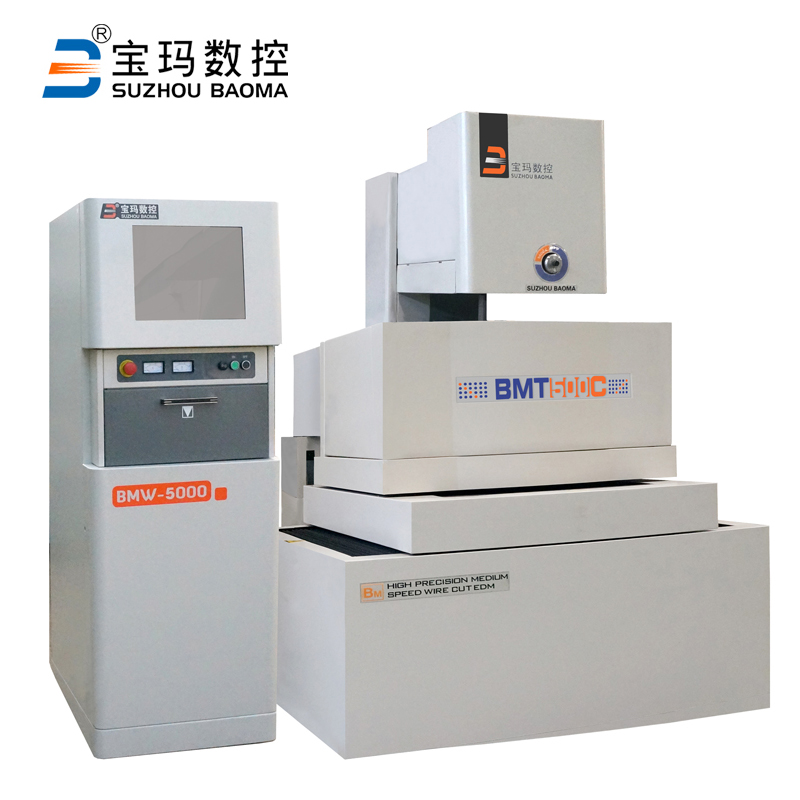

This CNC wire cut EDM machine offers precise cutting capabilities for various materials. It features a BMW-5000 controller and a double direction servo wire tension system.
Technical Specifications
Overview
High-Precision CNC Wire Cut EDM

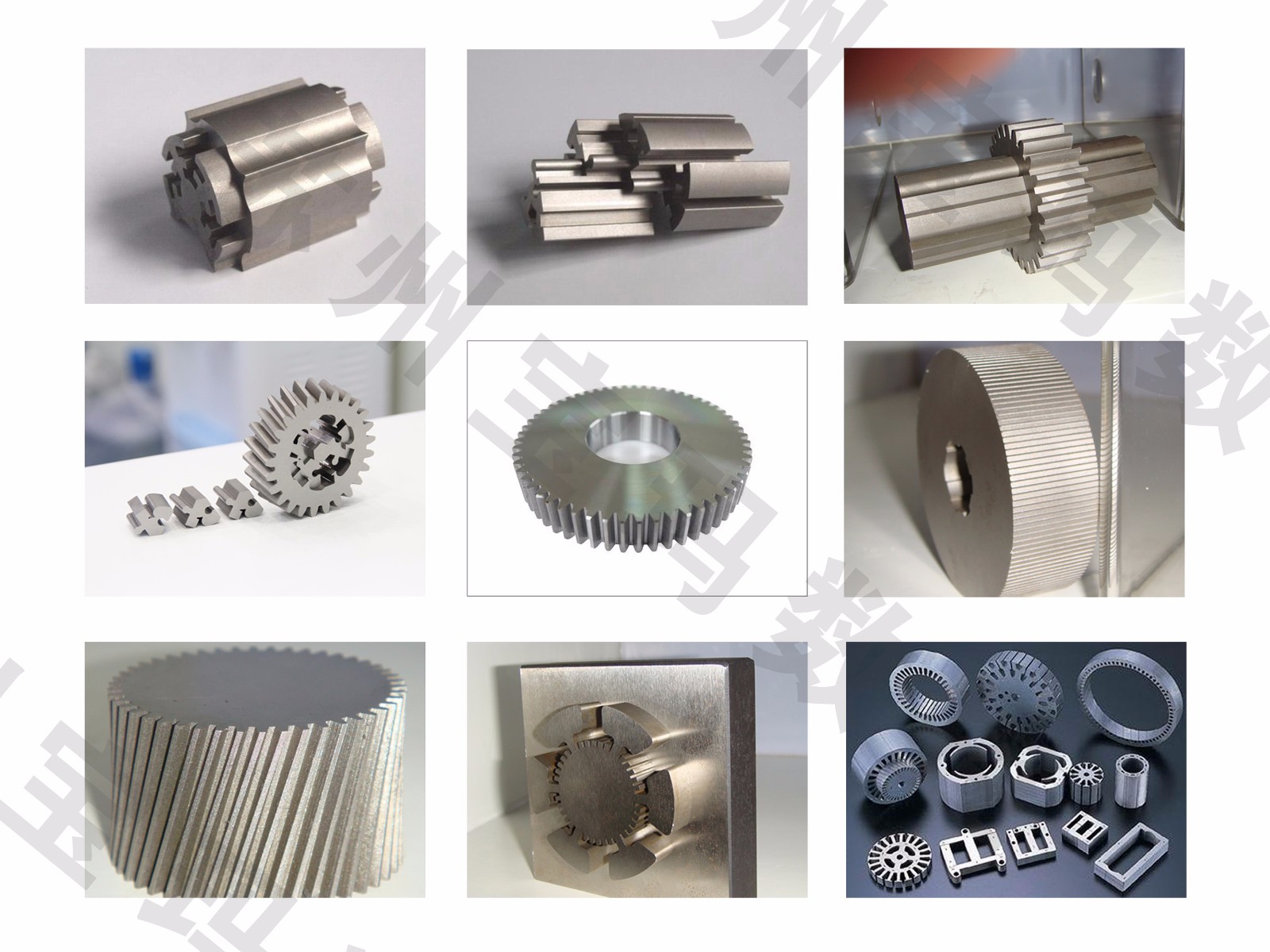

This CNC Wire Cut EDM machine is designed for high-precision machining of intricate geometries and hard materials. It features a servo-controlled wire tension system and advanced high-frequency power supply to achieve superior surface finishes and tight tolerances. Ideal for tool and die making, it combines a maximum cutting speed of 250mm²/min with a robust mechanical structure for reliable industrial performance.
Performance Metrics
Key Performance Indicators
250 mm²/min
Max Cutting Speed
1.2 μm
Surface Roughness (Ra)
0.012 mm
Octagon Precision
500 kg
Max Table Load
Technical Specifications
Machine Parameters
| Parameter | Value | Unit |
|---|---|---|
| Worktable Size (L x W) | 500 x 800 | mm |
| Table Travel (X x Y) | 400 x 500 | mm |
| Max. Workpiece Thickness | 300 | mm |
| Taper Angle | +/- 3° | degree |
| Wire Diameter Range | 0.15 ~ 0.2 | mm |
| Wire Travelling Speed | 5 ~ 11 | m/min |
| Working Reservoir Capacity | 100 | L |
Control System & Components
System Features
- Double Direction Servo wire tension system
- BMXP software (Windows XP based) with AutoCAD compatibility
- High-frequency power supply (BMW-5000 model)
- Centralized lubrication system
- Industrial computer with LCD monitor
- Linear guideways for high-precision movement
Power & Electrical
Electrical Requirements
| Feature | Specification |
|---|---|
| Power Supply | 3N-380V / 50Hz |
| Max Working Current | 9A |
| Inverter Type | EMERSON (U.S.A) |
Compliance & Quality
- Certifications
- CE Certified6S Management SystemUnique ID Tracking
