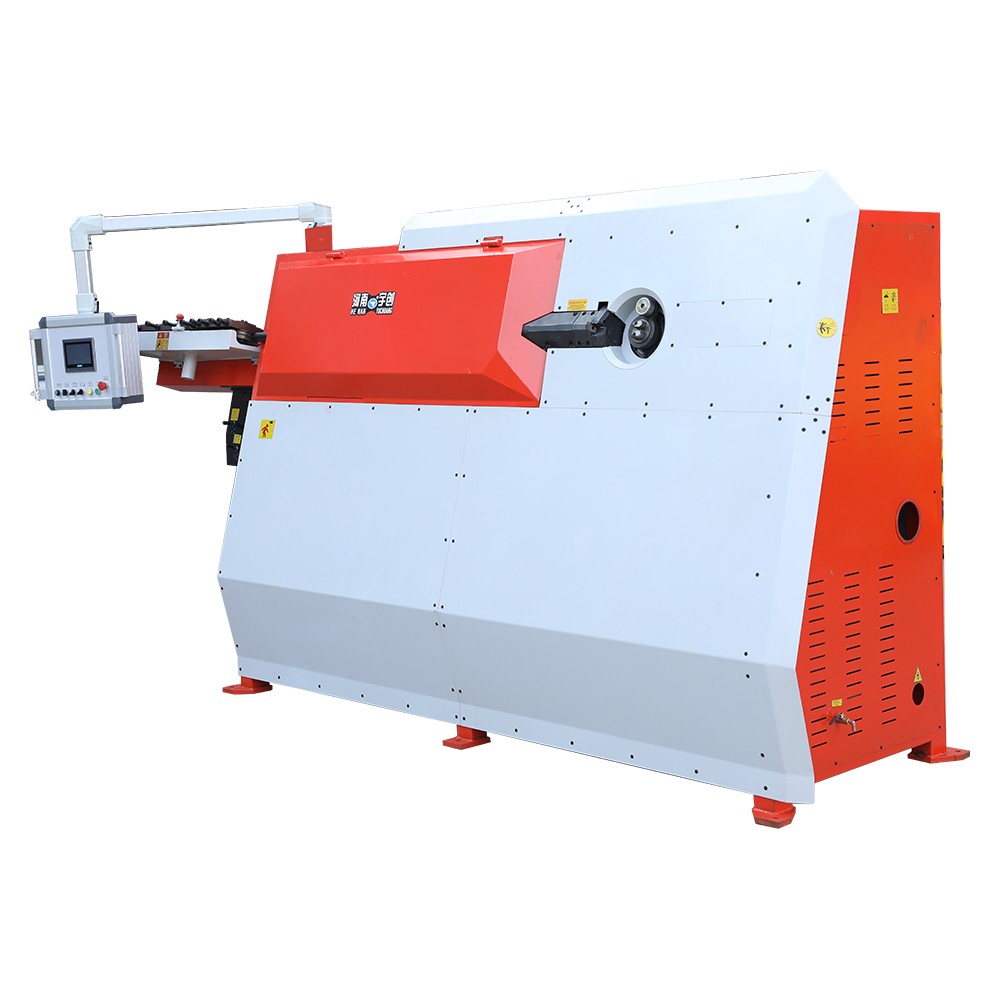

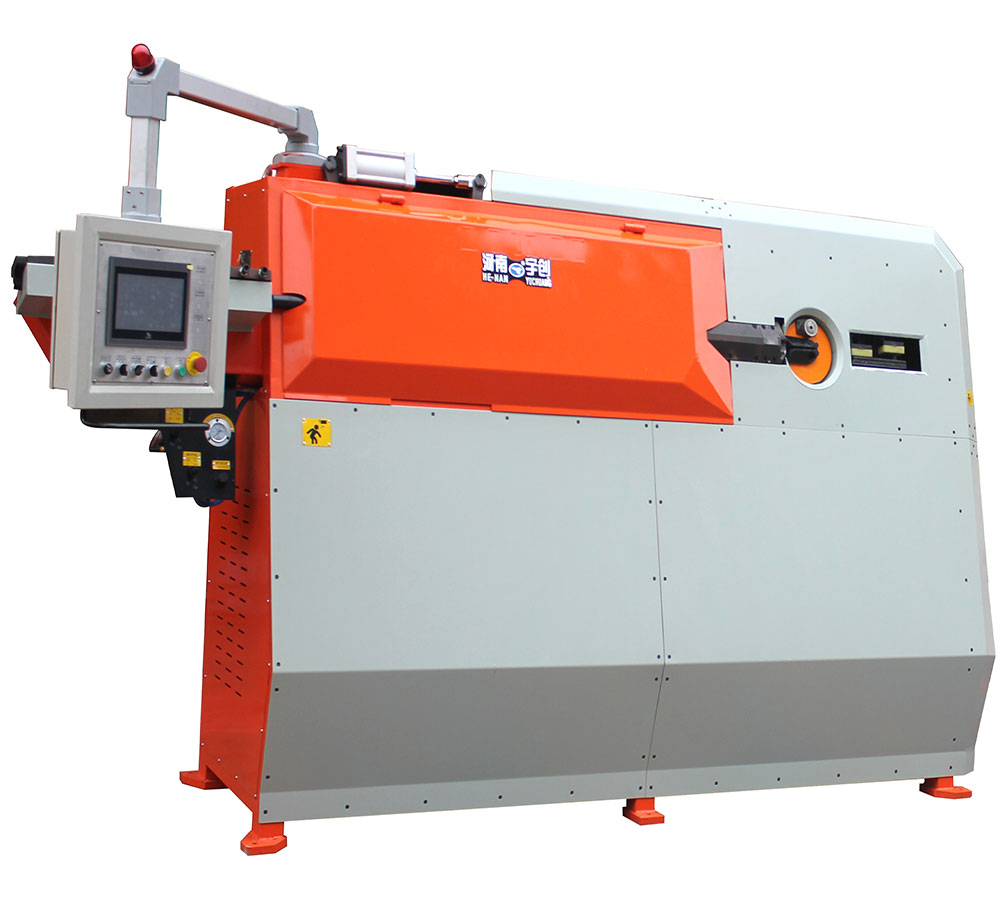

CNC Stirrup Bending Machine
This CNC stirrup bending machine is controlled by a servo system to automatically straighten, bend, and cut steel. It is widely used in the construction industry and rebar manufacturing for steel wire rod, steel bar, and steel rebar.
Technical Specifications
Product Overview
High-Efficiency CNC Stirrup Bending
This CNC stirrup bender is a versatile machine tool designed for the construction and rebar manufacturing industries. Controlled by a high-precision servo system, it automatically integrates straightening, bending, and cutting functions to produce a wide variety of stirrup shapes. Its robust construction ensures durability in demanding industrial environments while significantly reducing labor costs and improving production accuracy.
Performance Metrics
Key Performance Metrics
1,100 pcs/h
Bending Speed
110 m/min
Max Pulling Speed
180 °
Max Bending Angle
Technical Specifications
Production Capacity
| Wire Type | Diameter Range |
|---|---|
| Single Wire | 8-16mm |
| Double Wire | 8-12mm |
- Central Mandrel Diameter
- φ20-30mm
Power & Efficiency
- Average Electric Consumption
- 5 kw/h
- Servo Motor Configuration
- 3 Servo Motors
Applications
Target Industries
- Construction Industry
- Rebar Manufacturing Enterprises
- Precast Concrete Plants
- Steel Processing Facilities
- Suitable Materials
- Steel Wire RodSteel BarSteel Rebar
Safety & Operation
Safety & Operational Features

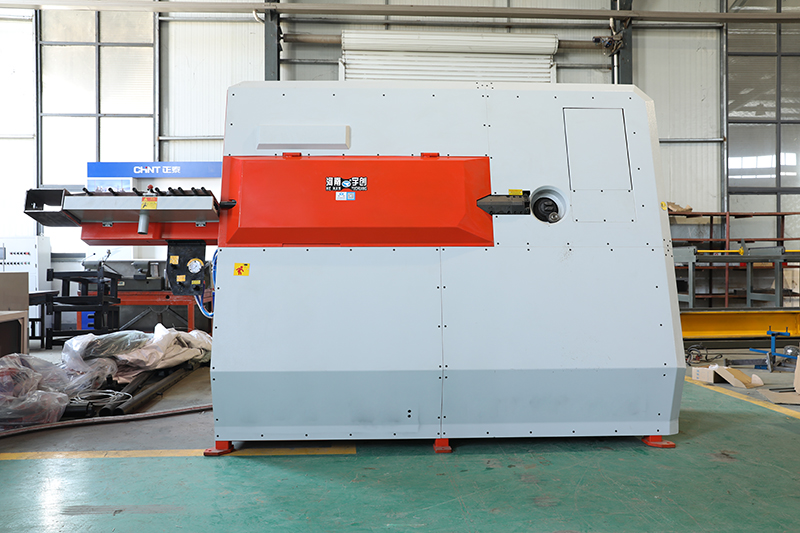

- Programmable CNC Control System
- Emergency Stop Buttons
- Protective Guards
- Required Grounding Wire for Safety
Automated Functions
StraighteningBendingCuttingLeveling
