CNC Lathe Machine for Small-Batch Machining
This CNC lathe machine is designed for small-batch machining and education. It features a high-speed spindle unit, servo drive, and linear guide for precise and efficient operation.
Technical Specifications
Overview

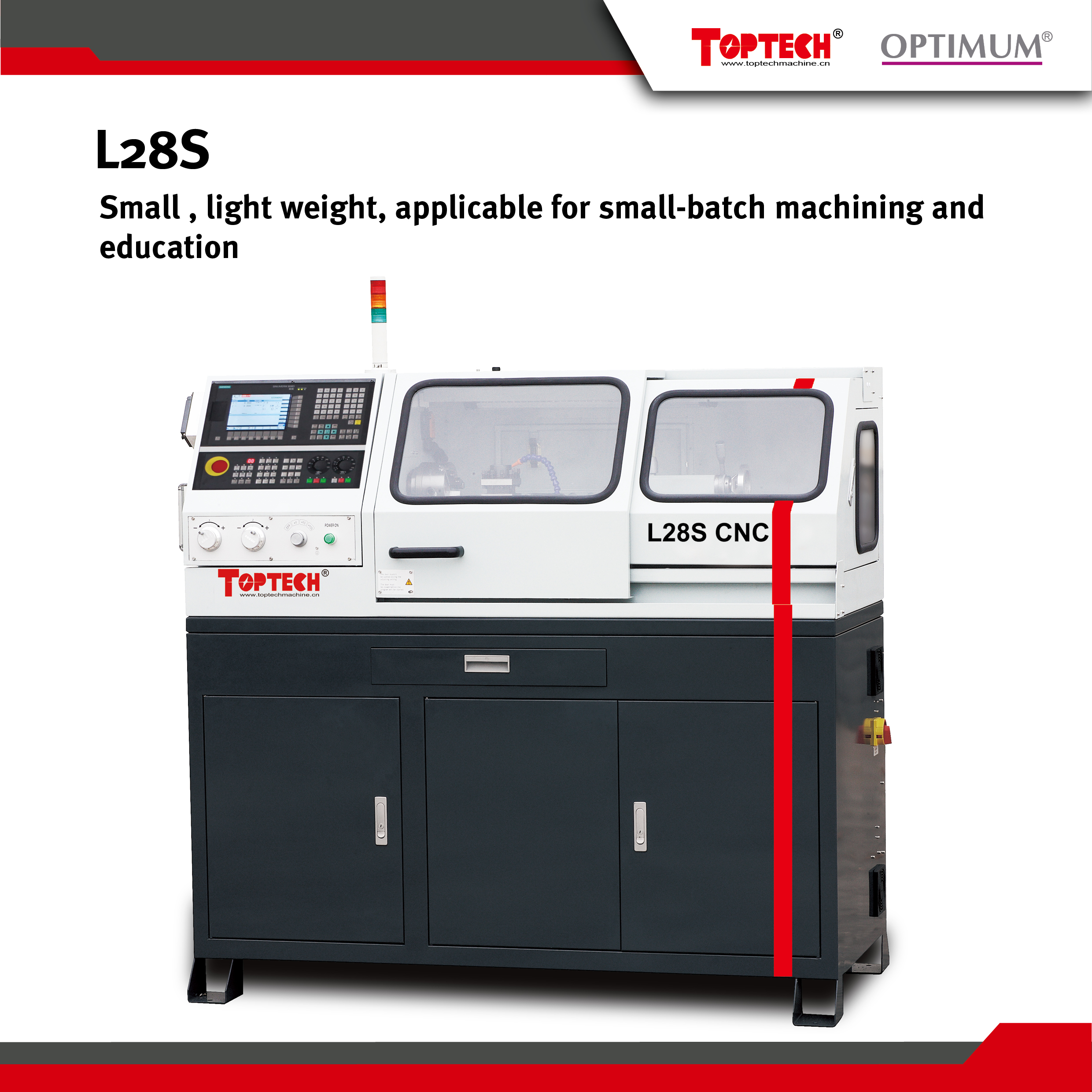

Compact Precision CNC Lathe
This CNC lathe machine is a high-speed, precision-engineered solution specifically designed for small-batch machining and educational environments. It features a robust construction with linear guides and ball screws on two axes, ensuring reliable performance for high-accuracy metal cutting operations. Compact and lightweight, it conforms to European Safety Standards, making it an ideal choice for manufacturing workshops and technical training.
Key Features
Performance Highlights
4,000 rpm
Max Spindle Speed
300 mm
Swing Over Bed
2.2 kW
Main Motor
4 Slots
Tool Turret
Standard Equipment
- Servo-spindle and Servo-drive
- Linear guide and ball screws
- Automatic lubricating system
- Coolant system
- LED work lamp
- European Safety Standard compliance
Machining Capacity
- Swing Over Bed
- 300 mm
- Swing Over Cross Slide
- 200 mm
- Center Width
- 600 mm
Spindle & Tooling
- Spindle Bore
- 26 mm
- Spindle Taper
- MT4

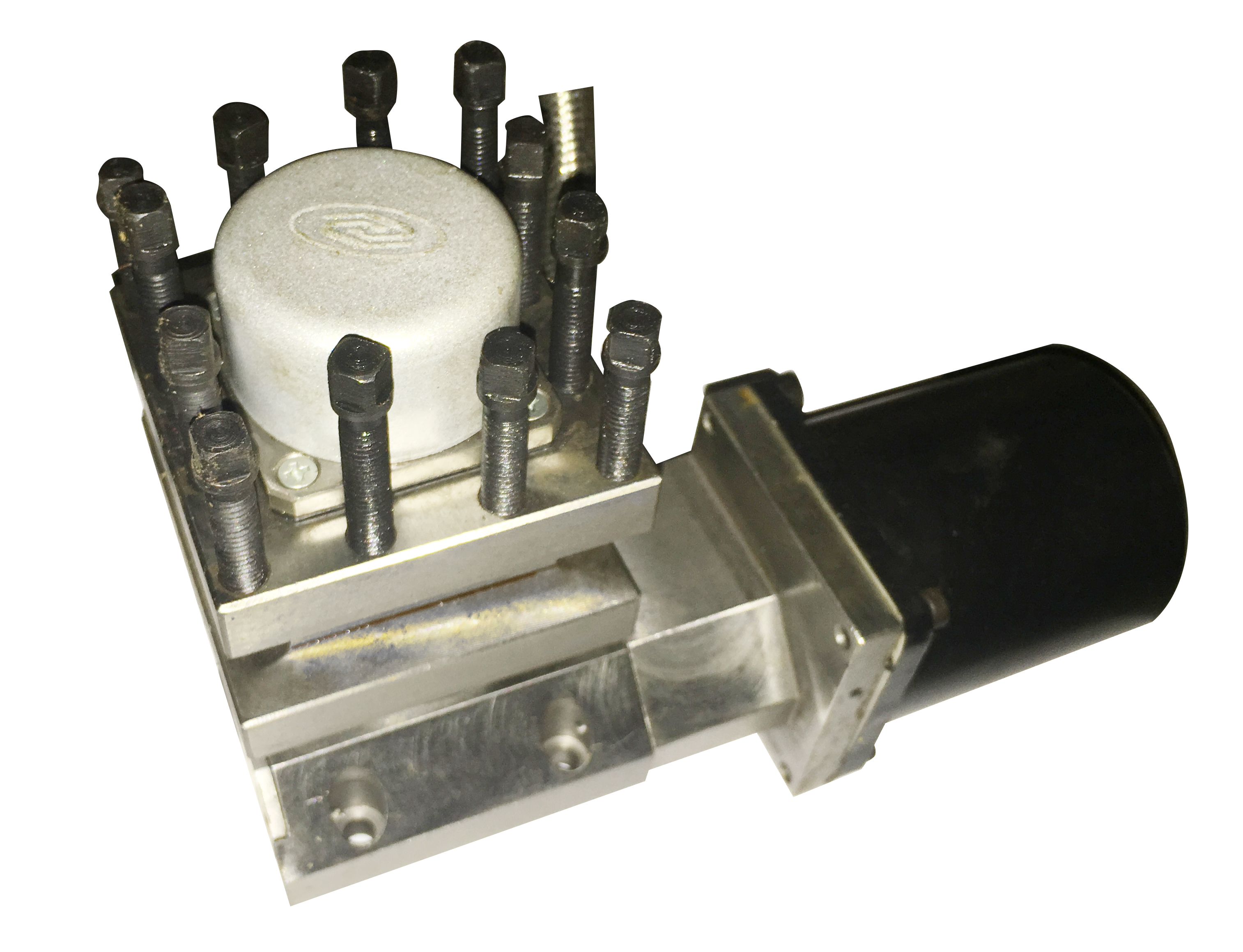

- Turret Type
- Electric 4-tool turret
Travel & Accuracy
Axis Travel (X/Z)
| Axis | Travel | Rapid Feed |
|---|---|---|
| X Axis | 180 mm | 6000 mm/min |
| Z Axis | 465 mm | 8000 mm/min |
- Repeat Position Accuracy
- 0.015 mm
Electrical & Dimensions
- Electrical Connection
- 400V 50Hz 3ph
- Net Weight
- 800 kg
- Overall Dimensions (LxWxH)
- 1590 x 705 x 1515 mm
Compliance
- Safety Standards
- European Safety StandardCE Compliant
