4-Axis CNC Turning Center
This 4-axis CNC turning center is designed for machining complex parts with precision. It features a programmable tailstock and a tool turret for automated tool changes, ensuring efficient and accurate production.
Technical Specifications
Overview

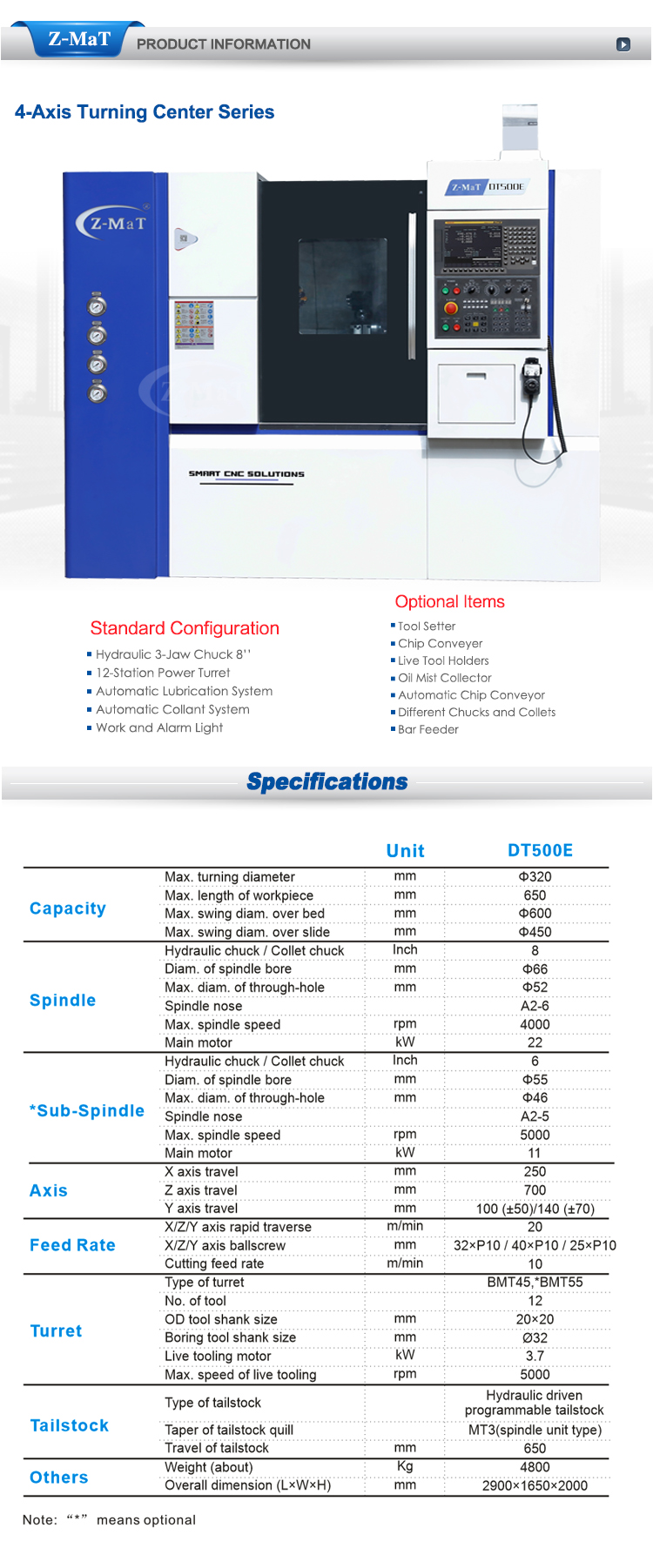

High-Precision 4-Axis Turning Center
The DT500E is a versatile 4-axis turning center engineered for the precision machining of complex workpieces. It features a rigid structure for stability during high-speed cutting and is equipped with a high-performance spindle and advanced CNC controls for efficient material removal. With integrated features like a 12-station power turret and a programmable tailstock, this machine is ideal for applications requiring tight tolerances and complex geometries.
Core Performance
Key Performance Metrics
4,000 rpm
Main Spindle Speed
320 mm
Max Turning Diameter
650 mm
Max Workpiece Length
22 kW
Main Motor Power
Capacities
Swing Capacities
| Description | Measurement |
|---|---|
| Max. swing diameter over bed | Φ600 mm |
| Max. swing diameter over slide | Φ450 mm |
| Hydraulic/Collet Chuck Size | 8 inch |
Spindle Systems
Spindle Specifications
| Feature | Main Spindle | Sub-Spindle (Optional) |
|---|---|---|
| Spindle Nose | A2-6 | A2-5 |
| Spindle Bore Diameter | Φ66 mm | Φ55 mm |
| Through-hole Diameter | Φ52 mm | Φ46 mm |
| Max Speed | 4000 rpm | 5000 rpm |
| Motor Power | 22 kW | 11 kW |
Axis & Travel
Axis Travel & Feed
| Axis | Travel Range | Rapid Traverse |
|---|---|---|
| X Axis | 250 mm | 20 m/min |
| Z Axis | 700 mm | 20 m/min |
| Y Axis | 100 (±50) / 140 (±70) mm | 20 m/min |
Tooling & Turret
Turret & Live Tooling
- 12-Station Power Turret
- BMT45 or BMT55 Turret Type
- OD Tool Shank Size: 20x20 mm
- Boring Tool Shank Size: Ø32 mm
- Live Tooling Motor: 3.7 kW
- Max Live Tooling Speed: 5000 rpm
Standard Configuration
- Standard Features
- Hydraulic 3-Jaw Chuck 8''Automatic Lubrication SystemAutomatic Coolant SystemWork and Alarm LightProgrammable Tailstock
Optional Equipment
Optional Accessories
Tool SetterChip ConveyorLive Tool HoldersOil Mist CollectorBar FeederCustom Chucks & Collets
Physical Dimensions
- Machine Weight
- 4800 Kg
- Overall Dimensions (L×W×H)
- 2900 × 1650 × 2000 mm
