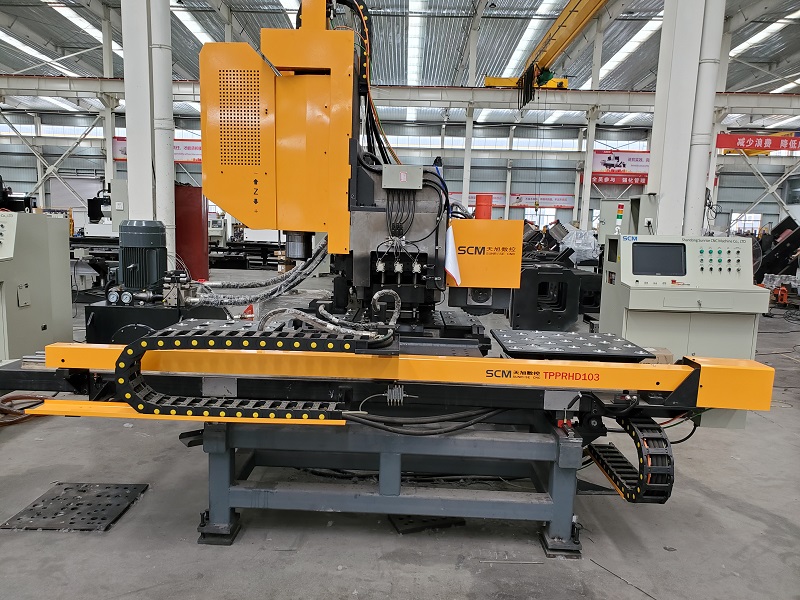

CNC High Speed Drilling, Punching, and Disk Marking Machine
This CNC machine performs high-speed drilling, punching, and disk marking. It features a robust frame and a CNC control system for precise and automated operations.
Technical Specifications
Overview
High-Efficiency CNC Processing Center
The TPPRHD103 is a versatile CNC machine engineered for simultaneous drilling, punching, and disk marking operations on a single plate. Designed for industrial metal fabrication, it utilizes a Siemens CNC system and servo-driven X, Y, and Z axes to ensure high precision and repeatable quality. Featuring a modular assembly for easy maintenance and a robust hydraulic cooling system, this machine optimizes workflow efficiency while reducing manual labor intensity.
Operational Metrics
Key Performance Metrics
1,200 kN
Punching Force
125 kN
Marking Force
50 mm
Max Drilling Diameter
3,000 r/min
Max Drilling Speed
Workpiece Capacity
| Parameter | Value |
|---|---|
| Max workpiece size (L×W) | 1500×800 mm |
| Max punching thickness (Q235) | 5-25 mm |
| Max punching thickness (Q420, 16Mn) | 5-20 mm |
| Max drilling thickness | 40 mm |
Technical Specifications
Drilling Spindle Specs
- Taper: BT50
- Stroke: 350mm
- Spindle Torque: 280Nm
- Motor Power: 22kW
- Standard Features
- Siemens PLCServo Motor ControlInternal/External CoolingSelf-diagnosisModular Assembly
Physical Dimensions
Physical Dimensions & Weight
- Overall Dimensions: 3300×3200×3000 mm
- Machine Weight: Approx. 8000 kg
