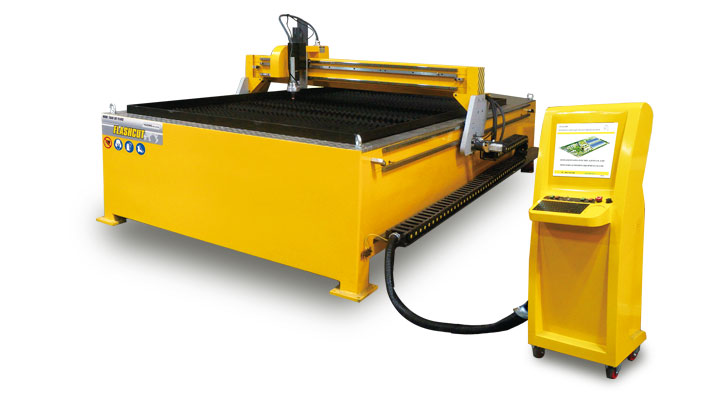

CNC Flame and Plasma Cutting Machine
This CNC machine performs both flame and plasma cutting. It is designed for high-efficiency and high-precision cutting in the metal sheet processing industry.
Technical Specifications
Overview
High-Efficiency CNC Cutting Solutions
This CNC cutting machine is an industrial-grade solution designed for high-precision metal sheet processing. It utilizes advanced digital programming to drive cutting torches, enabling efficient processing of steel, stainless steel, and copper. The modular design incorporates high-quality components to ensure smooth operation and high cost-effectiveness for modern manufacturing environments.
Key Performance Metrics
Performance Highlights
12,000 mm/min
Max Positioning Speed
0.5 mm/1000
Positioning Accuracy
0.2 mm/1000
Repeatability
Technical Specifications
Machine Parameters
| Parameter | Specification |
|---|---|
| Input Capacity | 3 KW |
| Power Supply | 1 Phase (110V, 220V, 230V, 240V; 50Hz) |
| Cutting Width Options | 1500mm, 2000mm |
| Cutting Length Options | 3000mm, 4000mm, 5000mm, 6000mm |
| Machine Dimensions | 4500 * 2700 * 1600 mm |
| Recommended Operating Speed | 6000-8000 mm/min |
Control System
Control System Features
- 7-inch colorful interface screen
- HG612 CNC controller
- 44 shapes library for quick programming
- Multi-language support (English, Russian, Spanish, Portuguese, French, Korean, Chinese)
- Compatible with nesting software like FastCAM and Pronest

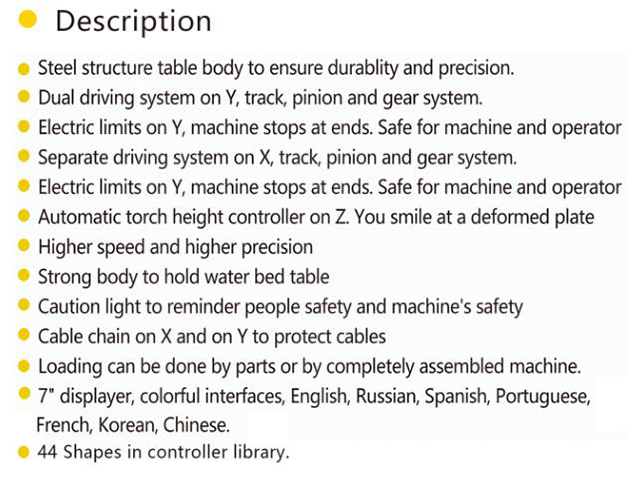

Mechanical Construction
Mechanical Build
- Steel structure table body for durability
- Dual driving system on Y-axis (track, pinion, and gear)
- Separate driving system on X-axis
- Z-axis automatic torch height controller for deformed plates
- Cable chains on both X and Y axes for protection
Safety & Operation
- Safety and Operation
- Electric Y-axis limitsCaution safety lightModular assemblyWater bed compatiblePlate rider optional
Cutting Capabilities
Cutting Modes
Plasma CuttingFlame Cutting (Optional)Powermax 45/65/85/105/125 Support
Compliance
- Certifications
- ISO 9001:2000
