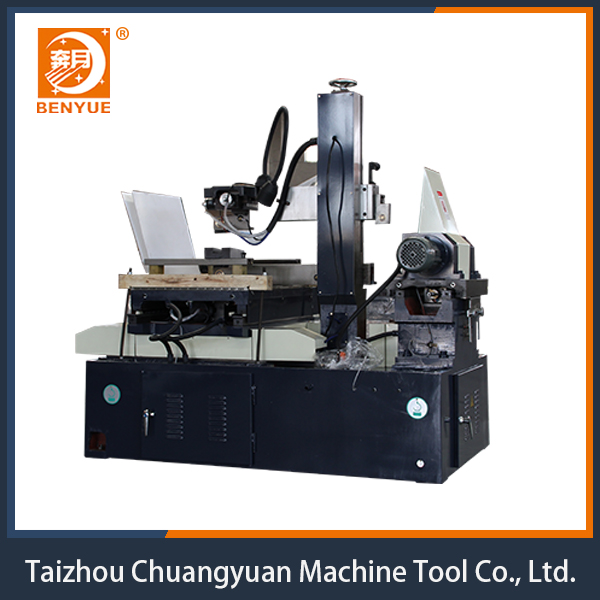

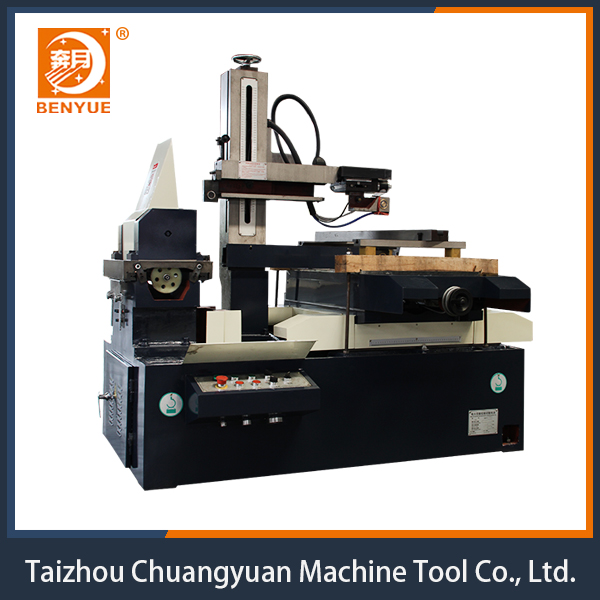

CNC Electrical Discharge Wire Cutting Machine
This CNC electrical discharge wire cutting machine offers high strength and heavy loading capacity. It utilizes a V-shape long span and long guiding rail structure lined with steel for enhanced stability.
Technical Specifications
Overview
High-Performance Wire EDM Solution
This CNC Electrical Discharge Wire Cutting Machine is engineered for precision and efficiency in complex metal cutting applications. Featuring a robust stainless steel wire movement system and a flexible workbench, it ensures stable and accurate performance for diverse manufacturing needs. The machine integrates high-quality electrical components and versatile control software options to provide a reliable, user-friendly experience for tool and die making.
Technical Specifications
- Taper Adjustment Capability
- 6 degrees
- Max Taper Height
- 80 mm
- Wire System Construction
- Stainless Steel
Features
Optional Configurations
- Taper cutting appliance (±3°, ±30°)
- Straight guide rail
- Protective cover
- High speed controlling system
- Medium-feeding wire controlling system
- Integrated machine appliance
Specialized Cutting Options
Cutting MagnetsCutting Aluminium
- Compatible Control Systems
- AutocutHL SystemWinCutHF System
