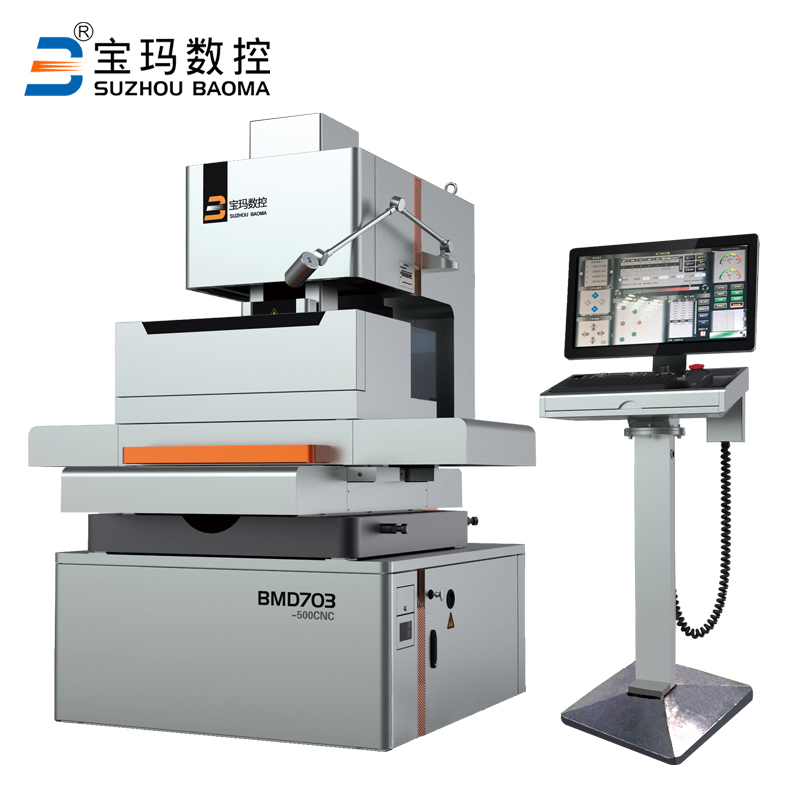

High-Speed EDM Precision Drilling
This high-speed small hole drilling machine utilizes advanced electrical discharge machining (EDM) technology to create precise holes in a wide range of conductive materials, including hardened steel, stainless steel, copper, and aluminum. Designed for versatility, it supports hole diameters from 0.2mm to 3.0mm with an impressive depth-to-diameter ratio of up to 300:1. The machine features an intelligent CNC control system that allows for remote monitoring, real-time parameter adjustment, and complex programming, making it an ideal solution for demanding applications like spinneret plates, engine blades, and hydraulic valves.
Technical Capabilities
- Hole Diameter Range
- 0.2mm - 3.0mm
- Max Depth-to-Diameter Ratio
- 300:1
- Compatible Materials
- Stainless SteelHardened SteelCopperAluminumHard Alloy Steel
CNC & Control System
Connectivity & Remote Access
- LAN port connection
- Internet remote monitoring
- Flash disc reading
- G-code file management
Automation Functions
- Auto edge finding and centering
- Auto short circuit management
- Auto-repair electrodes
- Gap servo follow function
- Auto clear Z-axis
- Supported CAD/CAM Software
- UGSOLIDWORKSAUTOCADLibre CAD
Hardware Configuration
Key Hardware Components
| Component | Specification |
|---|---|
| Z-Axis Drive | Linear guide rail, stepper motor |
| Rotary Head | Straight gear transmission |
| Work Table | Marble |
| Cooling/Pump | Specialty plunger pump |
Certifications & Standards
Compliance & Quality
CE CertifiedQuality Management SystemEnvironmental Management SystemHigh-Tech Product
