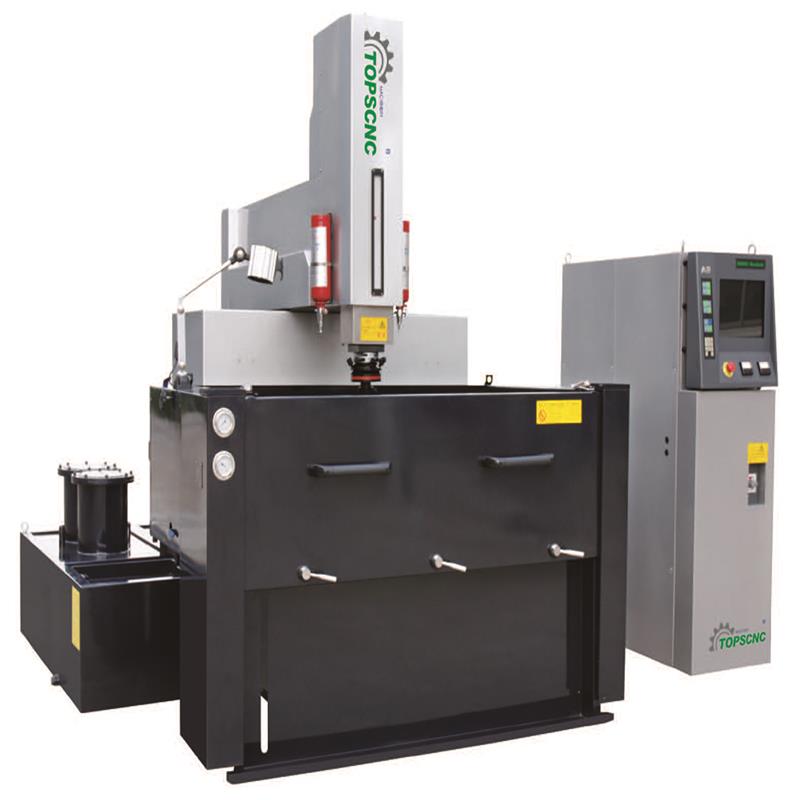

CNC Die Sinking EDM Machine
This CNC die sinking EDM utilizes electrical sparks to erode workpieces, achieving high accuracy and surface finish. The machine features a CNC control system for automated operation, a robust frame, and a dielectric fluid system.
Technical Specifications
Overview
Precision Die Sinking EDM Technology
This CNC Die Sinking EDM machine is engineered for high-precision manufacturing of complex cavities and intricate shapes in conductive materials. Utilizing controlled electrical discharge erosion, it delivers exceptional surface finish and dimensional accuracy essential for mold and die production. The system features a robust, heavy-duty frame, an integrated dielectric fluid management system, and advanced CNC controls for fully automated, reliable operation across diverse industrial applications.
Technical Specifications
Model Specifications
| Model | Worktable Size (mm) | X/Y/Z Travel (mm) | Machine Weight (kg) |
|---|---|---|---|
| CNC1060 | 1380x800 | 1000x600x400 | 3,500 |
| CNC1260 | 1380x800 | 1200x600x400 | 3,800 |
| CNC1470 | 1500x900 | 1400x700x500 | 4,000 |
| CNC1680 | 1700x1000 | 1600x800x500 | 4,300 |
- Application Areas
- Tool & Die MakingAerospaceAutomotivePrecision Engineering
Performance Metrics
Key Performance Metrics
3,000 kg
Max Worktable Load
180 kg
Max Electrode Load
1,000 L
Work Tank Capacity
